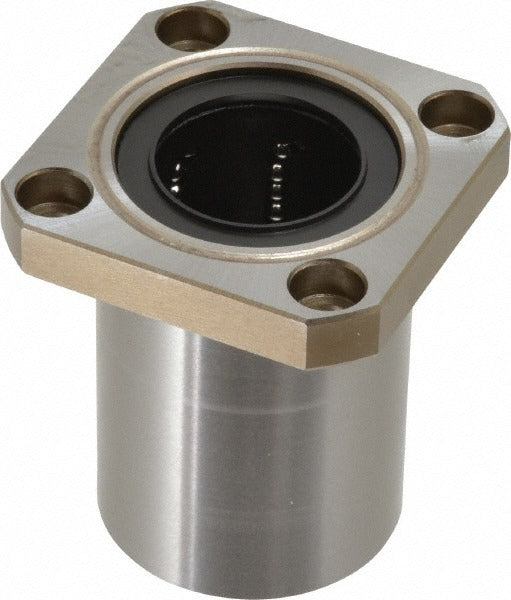

Nb Swk 16GUU Square Flanged Single Linear Bearing

Product Description

The NB SWK 16GUU is a square flanged single linear bearing designed for precise linear motion applications in industrial and mechanical systems. With a 1 inch inside diameter and a 1.5625 inch outside diameter, this bearing provides smooth, low-friction travel along linear shafts. The square flange configuration allows for straightforward bolt-down mounting to flat surfaces, making it a practical choice for machine builders, maintenance technicians, and automation specialists working with linear guide assemblies. Overall length is 2.25 inches, and the flange width measures 2.5 inches.

This linear bearing suits a range of applications including CNC machinery, automated assembly equipment, conveyor systems, and general industrial machinery requiring guided linear motion. The square flanged style simplifies alignment during installation and is commonly used where the bearing housing must be secured directly to a mounting plate or frame. It is sold individually and is appropriate for both OEM builds and field replacement work.

Key Features

• Square flange design allows direct bolt-down mounting to flat surfaces or machine frames
• 1 inch inside diameter sized to fit standard 1 inch linear shafting
• Outside diameter of 1.5625 inches for precise housing fitment
• Overall length of 2.25 inches supports stable shaft engagement
• Flange width of 2.5 inches provides a broad, secure mounting footprint
• Single bearing configuration suitable for light to moderate load linear motion

Compatibility

Designed as a standard OEM-style replacement or new-build linear bearing for use with 1 inch diameter linear shafts in industrial motion and automation systems.

Installation Notes

Installation should be performed by qualified mechanical technicians familiar with linear motion systems. Ensure the mating linear shaft is clean, free of burrs, and within specified diameter tolerances before pressing or sliding the bearing into position. De-energize and lock out all equipment before servicing any linear motion assembly. Verify flange bolt pattern alignment with the mounting surface prior to final fastener torque to avoid binding or misalignment.
