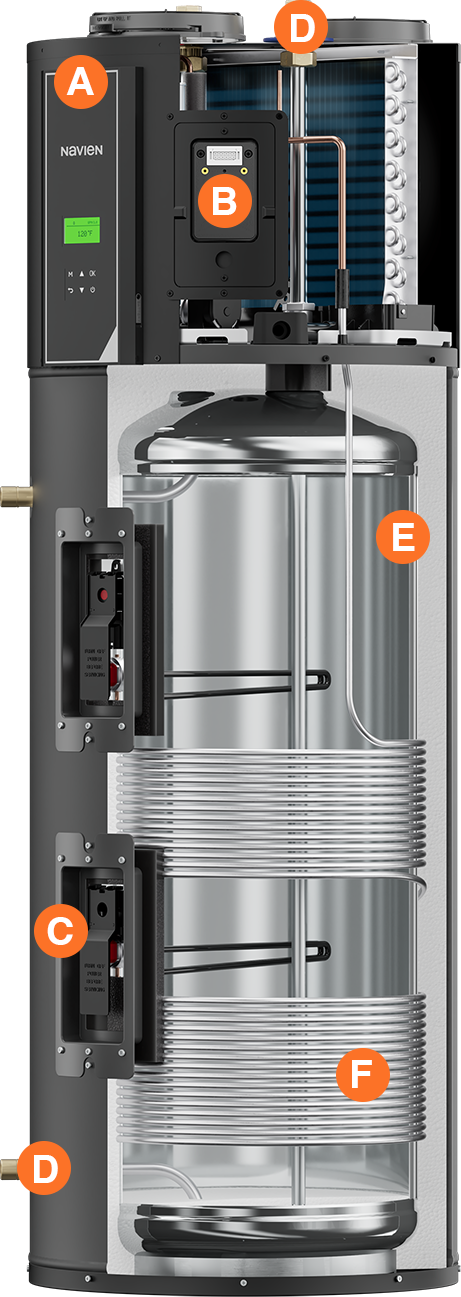

Navien NWP500-80 Premium Heat Pump Water Heater 80 gal

Product Description

The NAVIEN NWP500-80 is a high-efficiency heat pump water heater with a 4.05 UEF. It features a stainless steel tank and aluminum coils for improved durability. Designed to meet NEEA AWHS Tier 4 requirements. It operates quietly, producing less than 45dBA.

• High-efficiency - 4.05 UEF
• Stainless steel tank and aluminum coils for improved durability
• Top and side connection options

Product Highlights

This water heater offers reliable hot water and energy savings with advanced water heating technology.

Product Information

Standard Information

• Brand: NAVIEN
• Manufacturer Part Number: NWP500-80

Technical Specifications

• Model: NWP500-80
• Nominal capacity: 80 gal (302.83 l)
• Rated storage volume: 76.1 gal (288.07 l)
• UEF: 4.05
• First hour rating: 85 gal (321.76 l)
• AHRI number: 217,191,099
• Item: NWP500-80
• Dimensions: 25.0" W x 71.6" H (63.5cm W x 181.9cm H)
• Shipping weight: 282 lbs (127.9 kg)
• Net weight: 220 lbs (99.8 kg)
• Installation location: Indoor
• Water pressure: 15-150 PSI (1.05-10.55 kg/cm2)
• Cold water inlet: 3/4" NPT
• How water outlet: 3/4" NPT
• Drain: 3/4" NPT
• T & P Relief Valve: 3/4" NPT
• Condensate drain: 3/4" NPT
• Element: 1" NPSM (thread per inch 11-1/2)
• Casing: Cold Rolled Carbon Steel
• Storage tank: Stainless steel
• Condenser: Aluminum Coil
• Air intake: Ø8"
• Air exhaust: Ø8"
• Power supply: 208-240 V AC, 60 Hz, 1 Phase
• MCA 208 V: 25.9A
• MCA 240 V: 28.8A
• Circuit Breaker Amps: 30 Amps
• Wire Size: Up to 10 AWG - Suitable for 167 °F (75 °C)
• Compressor (LRA): 11.6 Amps
• Fan motor (FLA): 0.22 Amps
• Compressor (RLA) 208 V: 2 Amps
• Upper Heating Element 208 V: 3,755 W
• Lower Heating Element 208 V: 3,755 W
• Compressor (RLA) 240 V: 1.75 Amps
• Upper Heating Element 240 V: 5,000 W
• Lower Heating Element 240 V: 5,000 W
• Discharge Max. Pressure: 385 PSIG (2.65 MPa)
• Suction Max. Pressure: 250 PSIG (1.72 MPa)
• Refrigerant Type: R-134a
• Refrigerant Charge: 28.2 oz (800 g)
• Tank Capacity Range: 80 to 119 gal
• Voltage Rating: 208-240 VAC
• Power Rating: 7 kW
• Tank Capacity: 80 gal
• Series: NWP-S
• Brand: KD Navien®
• Manufacturer: NAVIEN INC
• Manufacturer Part Number: NWP500-80
