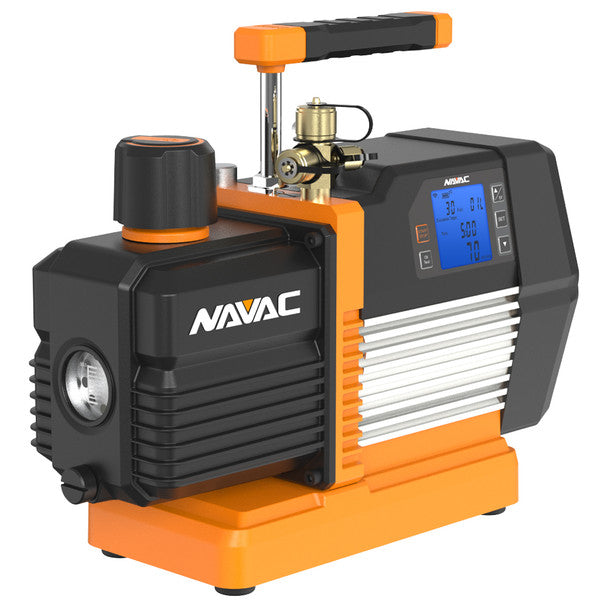

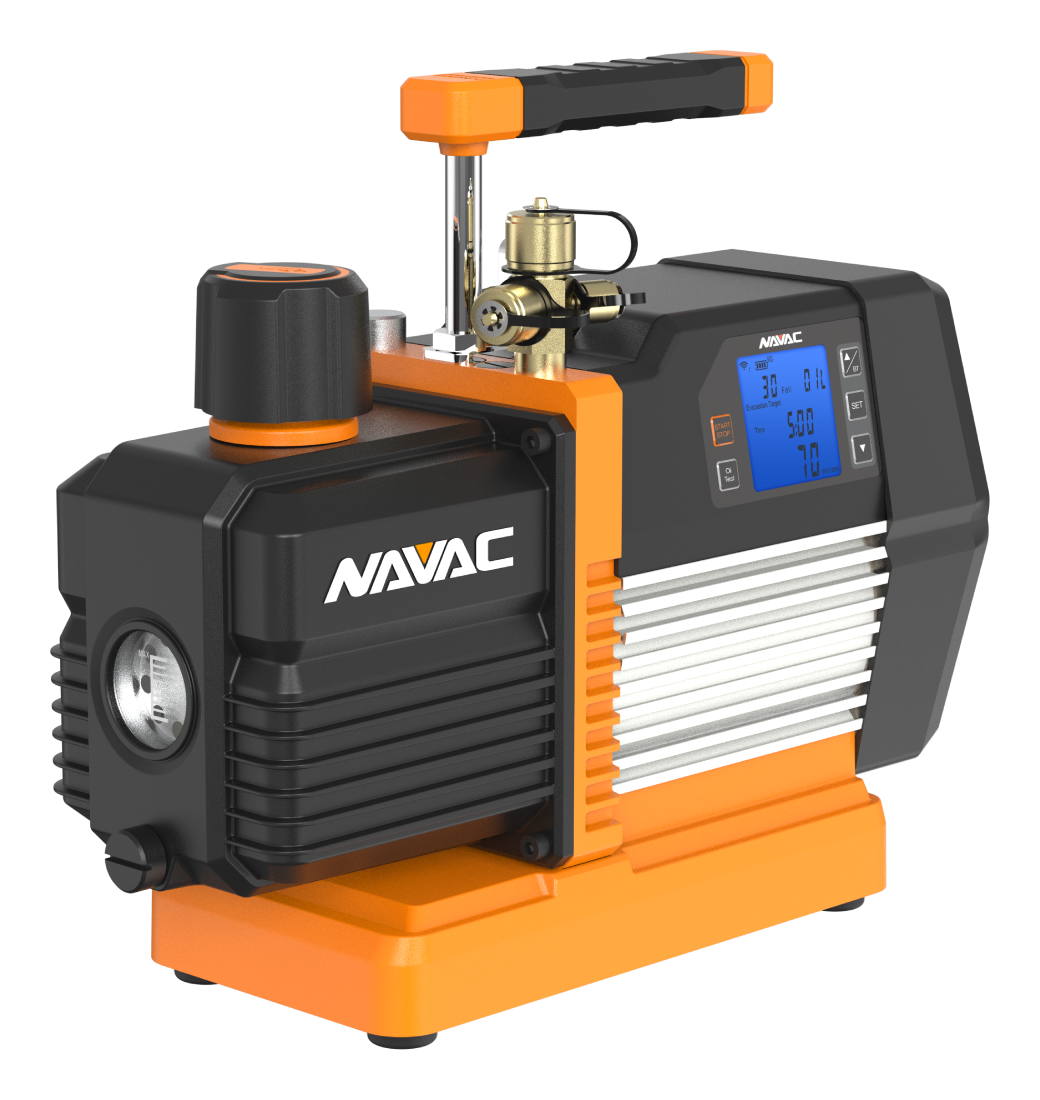

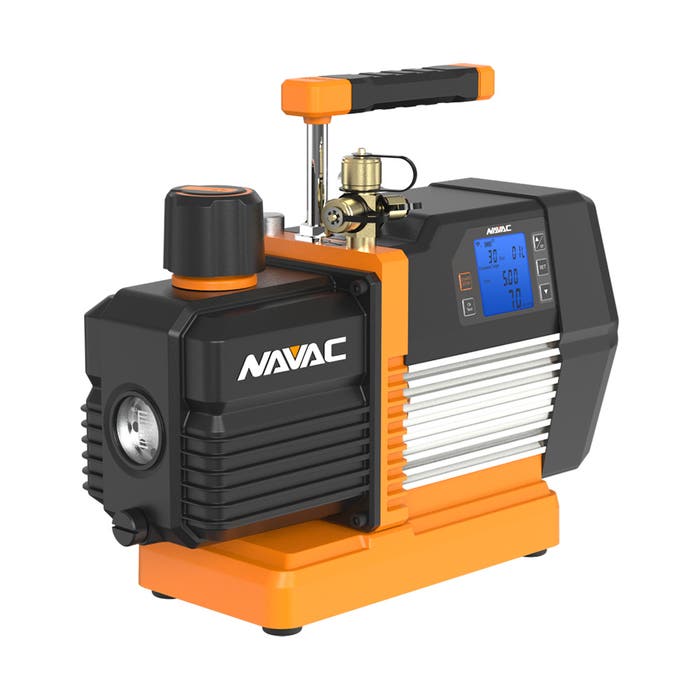

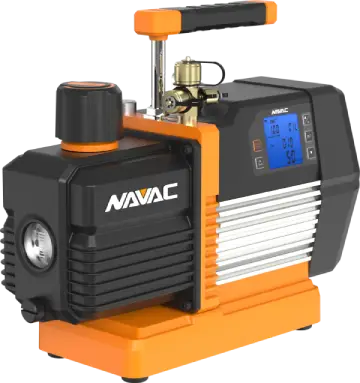

NAVAC NP8DSV Master Series Smart Vacuum Pump

Product Description

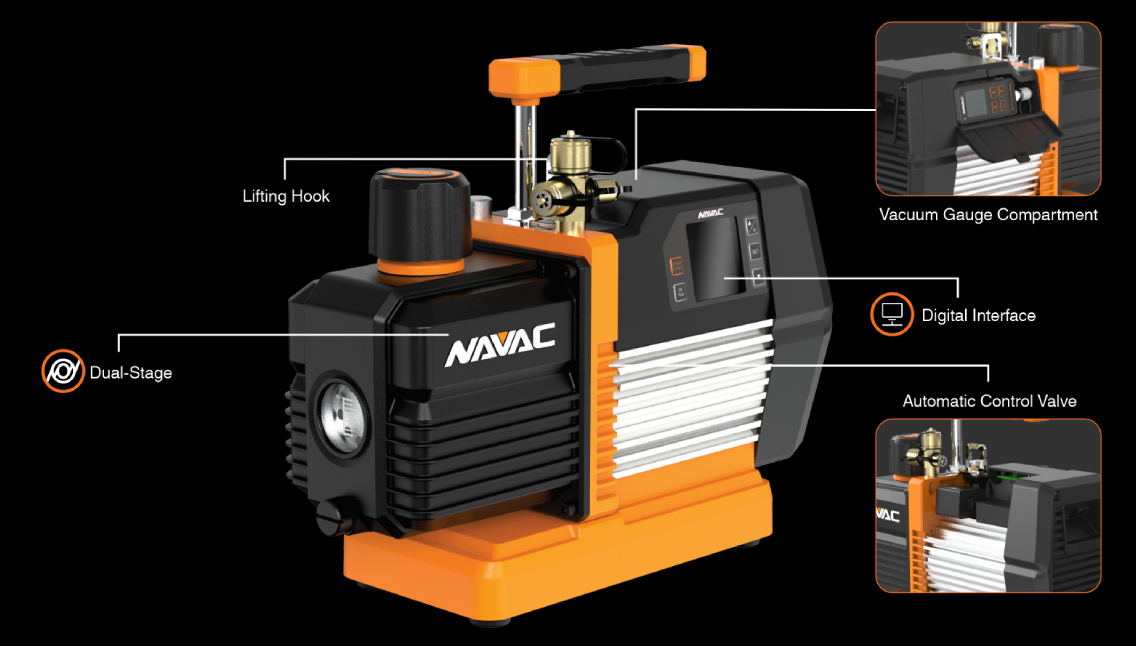

The NAVAC NP8DSV is a dual-stage smart vacuum pump suitable for HVAC system evacuation. This pump has an eight CFM flow rate and can achieve an ultimate vacuum of fifteen microns. It includes an oil health test function, which allows for the assessment of oil condition. The pump works with the NMV1S Bluetooth vacuum gauge for real-time vacuum readings. Additional features include automated decay testing, preset vacuum targets, and a built-in solenoid valve for vacuum preservation.

• Offers eight CFM dual-stage performance.
• Achieves fifteen-micron ultimate vacuum.
• Features a one-click oil health test.

Product Highlights

This vacuum pump is designed for efficiency and reliability in HVAC applications.

Product Information

Standard Information

• Brand: NAVAC
• Model: NP8DSV

Technical Specifications

• Power Supply: 115V/60Hz
• Flow Rate: 8 CFM
• Ultimate Vacuum: 15 microns
• Pump Design: Dual-Stage, AC Motor
• Motor Power: 3/4 HP
• Inlet Port: 1/4, 3/8, 1/2 Flare
• Oil Capacity: 17.6 oz
• Dimensions: 13.95 in x 5.09 in x 11.74 in
• Weight: 29 lbs (Vacuum Gauge Included)
• Vacuum Gauge: NMV1S
