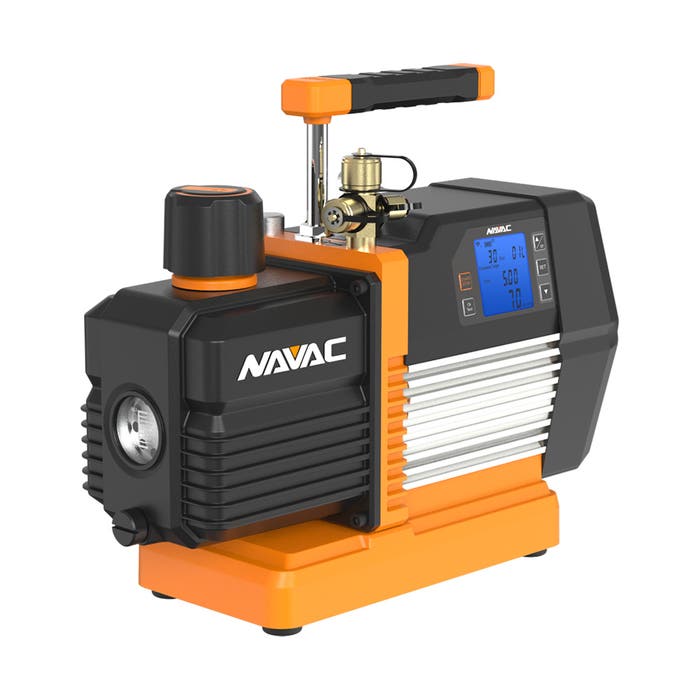

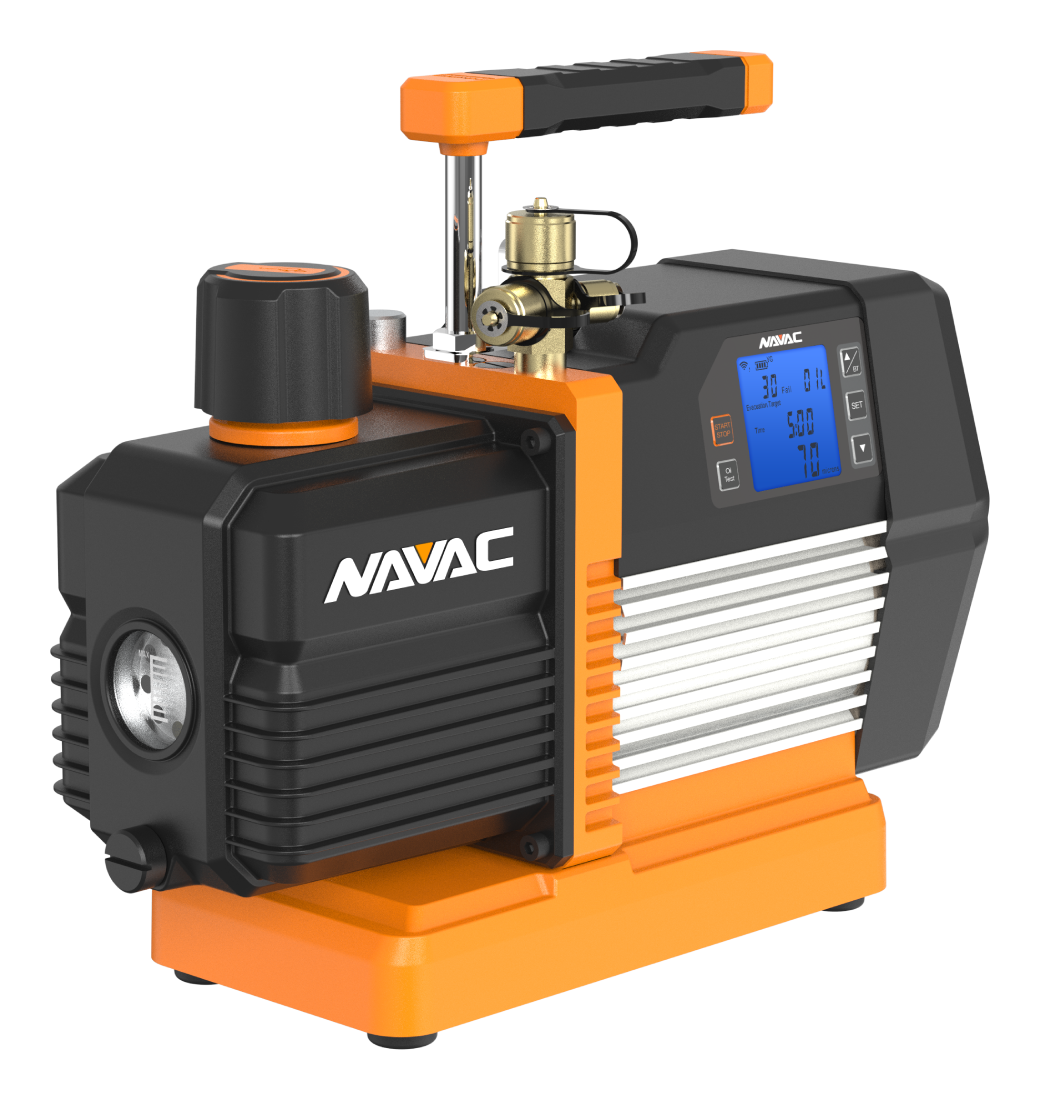

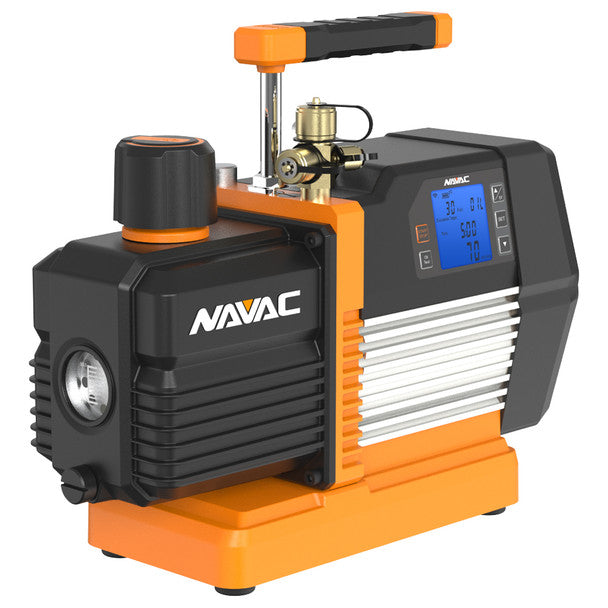

NAVAC NP8DS Master Series Smart Vacuum Pump

Product Description

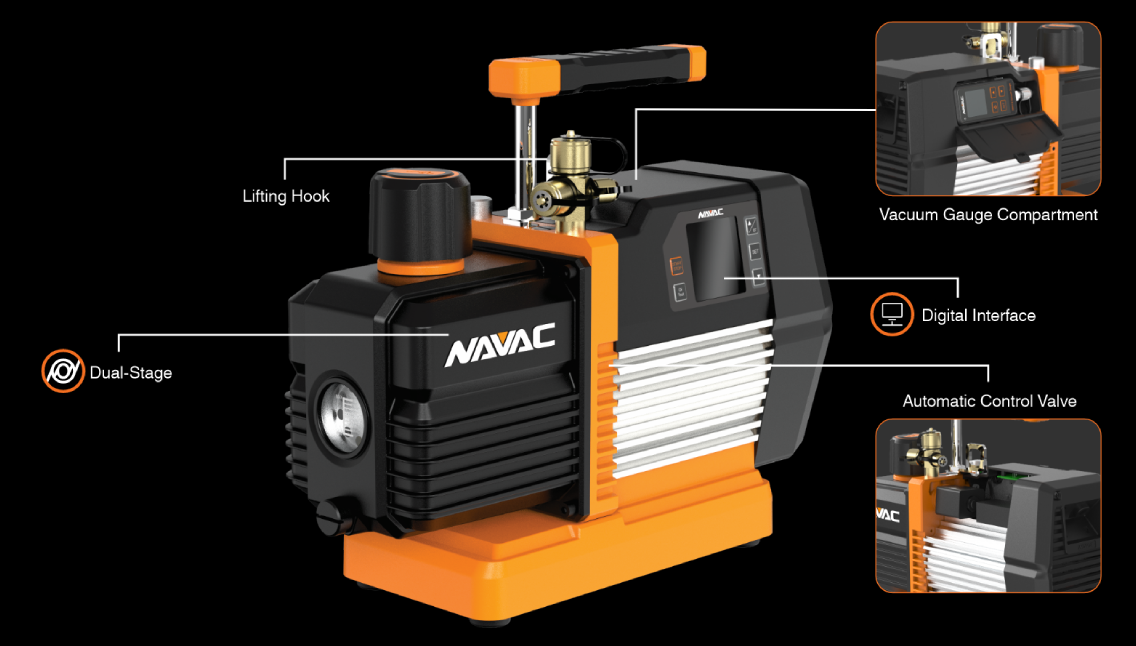

The NAVAC NP8DS is a dual-stage smart vacuum pump used for evacuating HVAC systems efficiently. This pump features an oil health test function to help users monitor oil condition. With a flow rate of 8 CFM and the ability to reach a 15-micron ultimate vacuum, it meets industry requirements for effective system evacuation. It is designed to work with A2L refrigerants and can integrate with the NMV1S Bluetooth vacuum gauge for real-time monitoring.

• Dual-stage operation with an AC motor.
• Solenoid valve included for preserving vacuum.
• Automated decay testing and preset vacuum targets enhance usability.

Product Highlights

The NAVAC NP8DS offers reliability for HVAC professionals, ensuring systems are evacuated properly with advanced features.

Product Information

Standard Information

• Power Supply: 115V / 60Hz
• Weight: 28.6 lbs

Technical Specifications

• Flow Rate: 8 CFM
• Ultimate Vacuum: 15 micron
• Pump Design: Dual-Stage, AC Motor
• Motor Power: 3/4 HP
• Inlet Port: 1/4, 3/8, 1/2 Flare
• Oil Capacity: 17.6 oz
• Dimensions: 13.95 in x 5.09 in x 11.74 in
• Warranty: 2 Year
