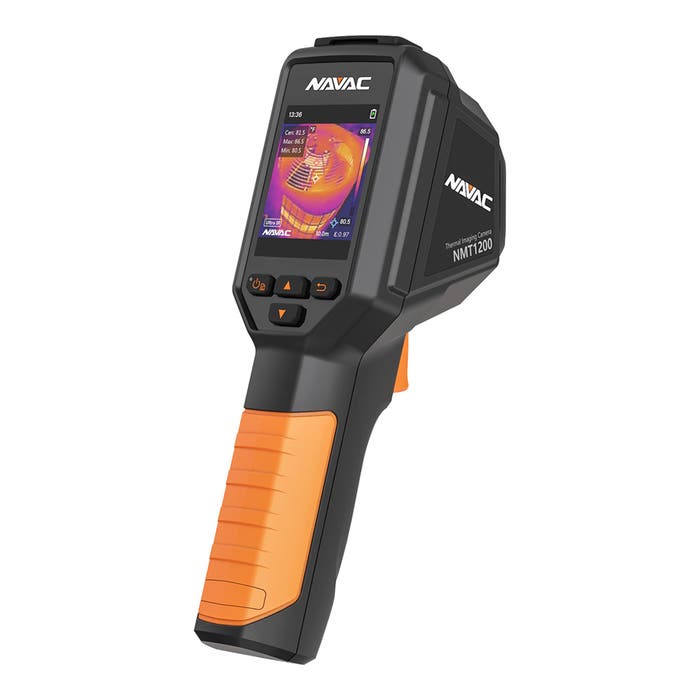

NAVAC NMT1200 Thermal Imaging Camera

Product Description

The NAVAC NMT1200 Thermal Imaging Camera is suitable for HVAC applications. It offers a resolution of ninety-six by ninety-six pixels using Ultra IR technology for efficient thermal imaging. This device identifies extreme temperature spots for effective diagnostics and maintenance of HVAC systems.

• Designed for HVAC applications
• Equipped with a ninety-six by ninety-six resolution detector
• Features Ultra IR technology

Product Highlights

The NAVAC NMT1200 provides quick and precise thermal imaging, making it a valuable tool for HVAC technicians diagnosing system issues.

Product Information

Standard Information

• Brand: NAVAC
• MPN: NMT1200

Technical Specifications

• Model: NMT1200
• IR Resolution: 96 x 96 (9216 pixels)
• Image Frequency: 25 Hz
• Display: 240 x 320 Resolution, 2.4 inches LCD Screen
• Temperature Range: -4 degrees Fahrenheit to 1022 degrees Fahrenheit (-20 degrees Celsius to 550 degrees Celsius)
• Accuracy: Max (3.6 degrees Fahrenheit/plus or minus 2 degrees Celsius, plus or minus 2%) at ambient temperature 77 degrees Fahrenheit (25 degrees Celsius) and object temperature above 32 degrees Fahrenheit (0 degrees Celsius)
• Thermal Sensitivity (NETD): < 50 mK (@ 25 degrees Celsius, F#=1.0)
• Battery Life: Approx. 8 hours
• Measurement Presets: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
• Warranty: 1 Year
