National Marker N279695 Hinge Pin Door Stop

Product Description

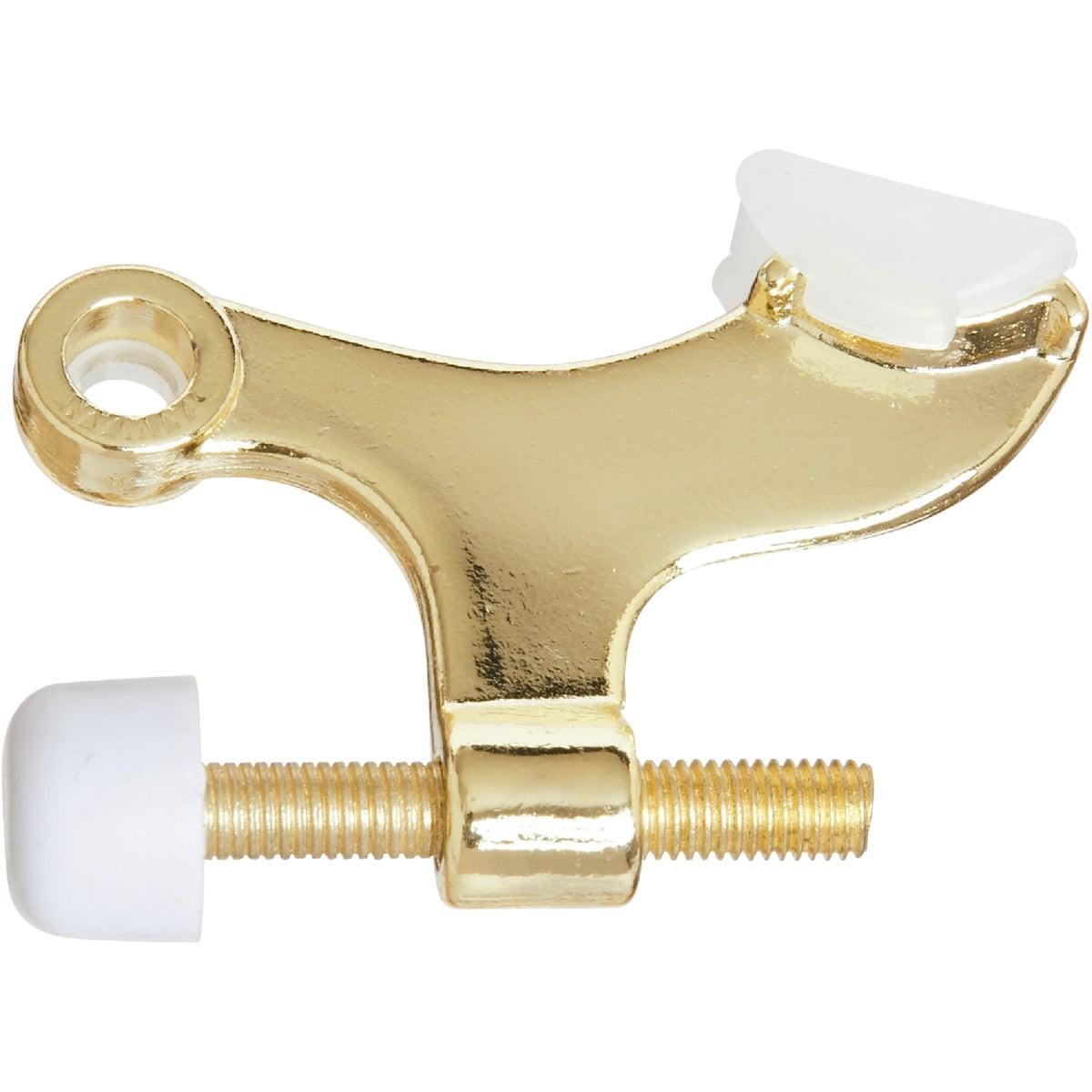

The NATIONAL MARKER N279695 is a hinge pin door stop designed to protect walls from door impact in residential and light commercial applications. Corresponding to National Catalog Model V227, this stop mounts directly onto an existing door hinge, eliminating the need for additional wall anchors or floor hardware. The zinc die-cast body provides durable construction, while a steel adjusting screw allows the stop position to be tuned without removing the unit. Rubber and plastic tips cushion contact and prevent surface marring. Installation takes only seconds on any standard door with an exposed hinge pin.

This door stop is engineered specifically for hollow core doors, where wall damage from door knobs or edges is a common service call. It suits interior residential doors in apartment units, offices, and light commercial spaces. Facility maintenance technicians, property managers, and finish carpenters routinely install this type of hardware during door hanging or as a retrofit on existing doors.

Key Features

• Mounts on door hinge pin — no wall drilling or floor anchoring required
• Zinc die-cast body for corrosion resistance and durability
• Steel adjusting screw for field-tunable stop position
• Rubber and plastic tips protect both door and wall surfaces
• Designed specifically for hollow core door applications
• Sold as a pack with a minimum order quantity of 1

Compatibility

Designed as an OEM-style replacement or new-install hinge pin door stop compatible with standard residential and light commercial door hinges that use an exposed removable hinge pin.

Installation Notes

Installation is performed by removing the hinge pin from an existing door hinge, sliding the door stop body onto the pin, and reseating the pin. No special tools are required beyond a standard pin punch or flathead screwdriver. Once installed, turn the adjusting screw to set the desired stop position. Ensure the door is closed and the hinge is not under load before removing the hinge pin to prevent injury.

Technical Specifications

• Model Number: V227
• Body Material: Zinc die-cast
• Adjusting Screw Material: Steel
• Tip Material: Rubber and plastic
• Weight: 0.145 pounds
• Unit of Measure: Pack
• UPC: 00038613279698

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N279695
