National Marker N265371 Continuous Hinge 1-1/16 X 12 in

Product Description

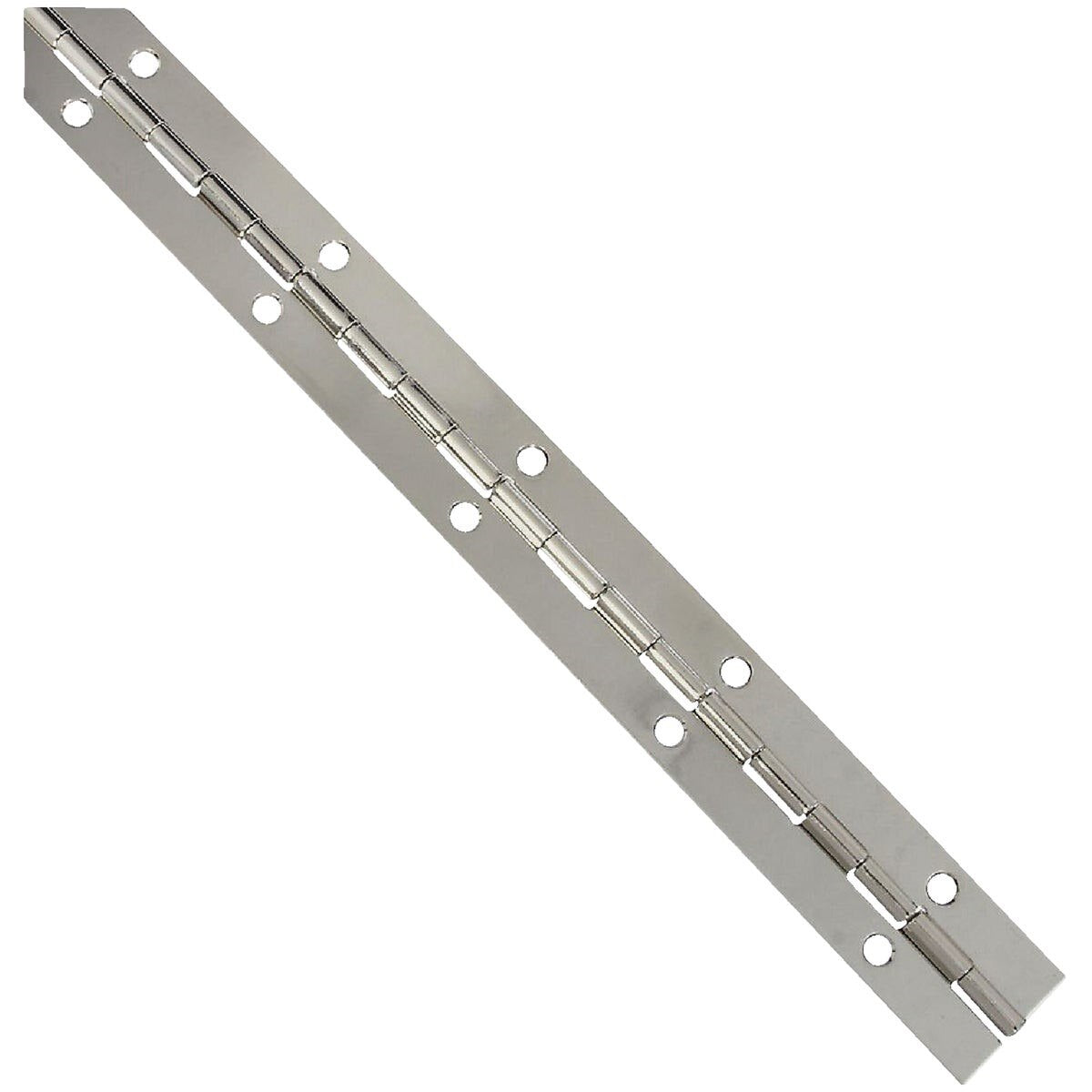

The NATIONAL MARKER N265371 is a nickel-finish steel continuous hinge designed for light-duty joinery applications in cabinetry, tool chests, folding tables, and hobby projects. Part of the V570 series, this hinge measures 1-1/16 inches wide and 12 inches in length and can be cut to any desired length without losing pin retention, as the friction-fit pin stays in place after cutting. The electrofilm-coated pin measures 0.090 inches in diameter and is engineered to resist rust. Screw holes are pre-spaced 2 inches apart for consistent fastener layout. The hinge is formed from 0.042-gauge steel and ships with Phillips flat No. 4 x 1/2-inch screws included.

This continuous hinge suits residential and light commercial installations where a full-length hinge line is needed across a door, lid, or panel edge. Typical applications include tool chest lids, cabinet doors, folding worktable frames, and hobby or craft project enclosures. The 12-inch stock length accommodates most standard cabinet and chest lid spans, and the trimmable design allows field fitting without special tooling. The included mounting hardware makes it a ready-to-install solution for small-scale joinery work.

Key Features

• Trimmable to any desired length — friction pin will not fall out after cutting
• Electrofilm-coated pin resists rust for extended service life
• Screw holes pre-spaced 2 inches apart for consistent fastener layout
• 0.090-inch diameter pin, 0.042-gauge steel construction
• Includes Phillips flat No. 4 x 1/2-inch screws
• Nickel finish for corrosion resistance and clean appearance

Compatibility

Designed as an OEM-style continuous hinge for tool chests, cabinets, folding tables, and hobby project enclosures requiring a full-length piano-style hinge in a 12-inch form factor.

Installation Notes

This hinge is typically installed by woodworkers, finish carpenters, or maintenance technicians using standard hand tools. Mark and cut the hinge to the desired length before installation, then align screw holes to a pre-drilled pilot layout on the mating surfaces. Use the included No. 4 x 1/2-inch screws or equivalent fasteners appropriate to the substrate. Avoid over-tightening fasteners in thin-gauge or soft-material substrates to prevent stripping.

Technical Specifications

• Series: V570
• Width: 1-1/16 inches
• Length: 12 inches
• Gauge: 0.042
• Pin Diameter: 0.090 inches
• Pin Coating: Electrofilm
• Screw Hole Spacing: 2 inches
• Material: Steel
• Finish: Nickel
• Included Hardware: Phillips flat No. 4 x 1/2-inch screws
• Weight: 0.202 pounds
• UPC: 00038613265370

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N265371
