National Marker N222448 Stainless Steel Round U Bolt 5 Pack

Product Description

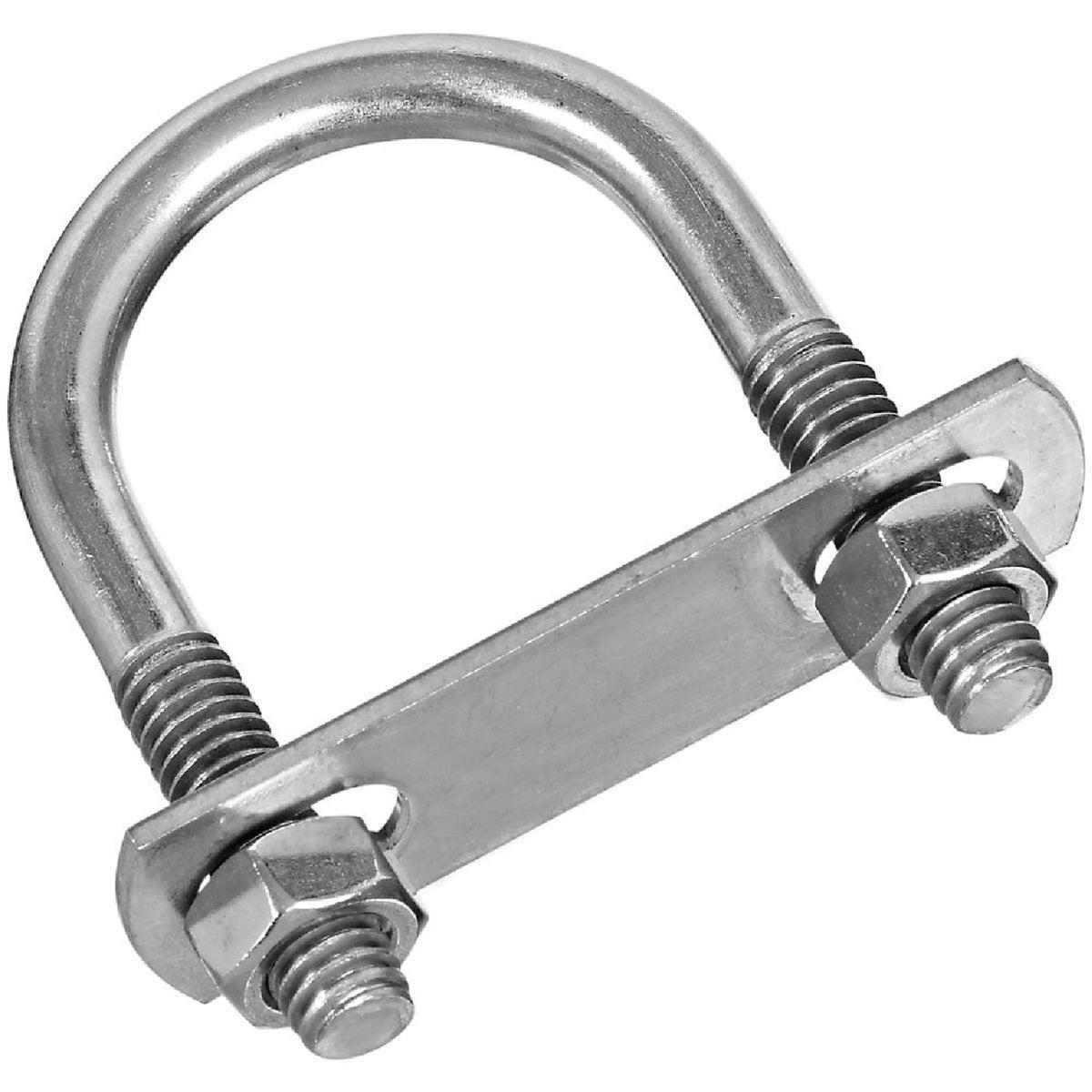

The NATIONAL MARKER N222448 is a stainless steel round U bolt sold in a 5-pack, designed for securing pipe, conduit, tubing, or rod to a structural surface. Each assembly includes a backing plate and two hex nuts, arriving pre-assembled and ready for installation. The U bolt measures 5/16 inch in rod diameter, 1-3/8 inch in inside width, and 2-1/2 inch in inside length. The stainless steel finish provides corrosion resistance in wet, outdoor, or chemically exposed environments. This hardware is a standard fastening component used across plumbing, electrical, HVAC, and general mechanical trades.

This U bolt assembly is suited for residential and light commercial applications where pipe or conduit must be anchored to a mounting surface such as a beam, strut, or wall plate. The included backing plate and hex nuts eliminate the need to source separate hardware, making it a convenient option for service technicians working in the field. The catalog model series is 2193BC.

Key Features

• Stainless steel construction for corrosion resistance in harsh or wet environments
• Comes pre-assembled with backing plate and two hex nuts included
• 5/16 inch rod diameter with 1-3/8 inch inside width and 2-1/2 inch inside length
• Sold in a 5-pack for multi-point installations or stocking purposes
• 2193BC catalog series for cross-reference ordering

Compatibility

Designed as a general-purpose round U bolt for securing pipe, conduit, or tubing in standard plumbing, HVAC, and electrical support applications.

Installation Notes

Installation is typically performed by licensed plumbers, electricians, or HVAC technicians during pipe or conduit support work. De-energize any electrical systems and shut off fluid flow before securing conduit or pipe runs. Use appropriately sized wrenches to tighten hex nuts evenly against the backing plate without over-torquing the stainless hardware. Follow applicable NEC, IPC, or IFGC support-spacing requirements for the pipe or conduit type being fastened.

Technical Specifications

• Rod Diameter: 5/16 inches
• Inside Width: 1-3/8 inches
• Inside Length: 2-1/2 inches
• Material: Stainless Steel
• Package Quantity: 5 per pack
• Includes: Backing plate and 2 hex nuts per U bolt, pre-assembled
• Weight: 0.164 pounds
• Catalog Series: 2193BC
• UPC: 00038613191419

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N222448
