National Marker N220632 Zinc Ring Eye Bolt

Product Description

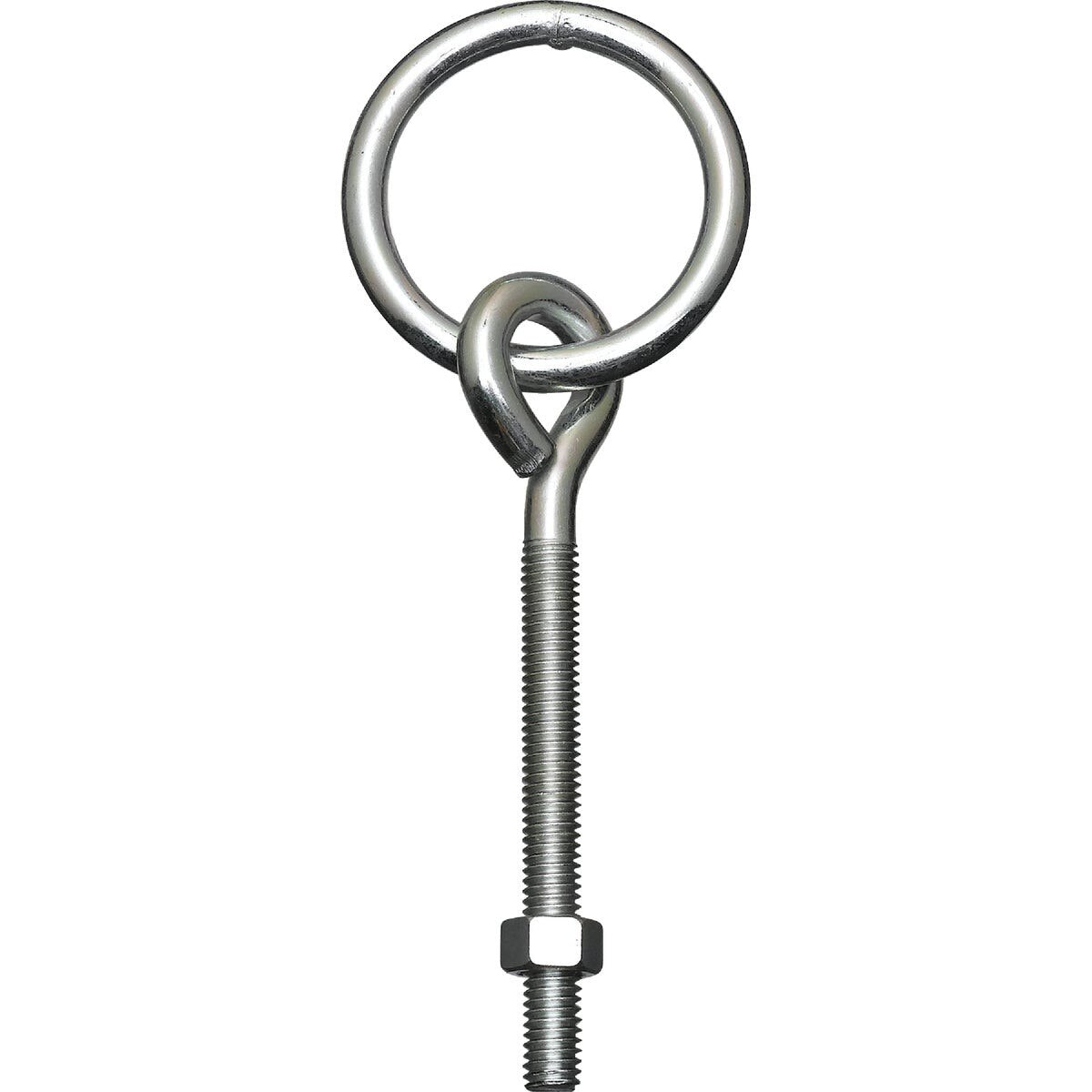

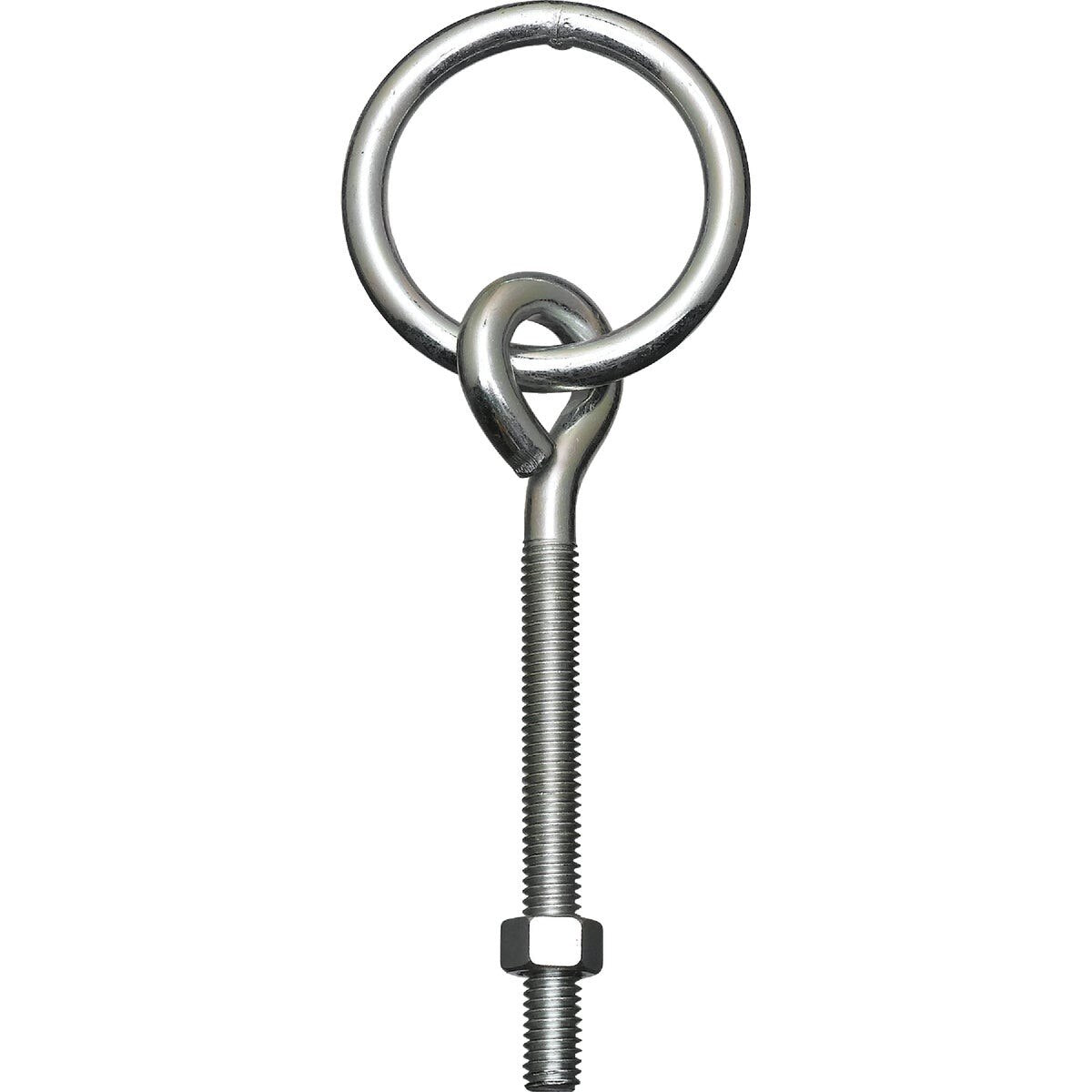

The NATIONAL MARKER N220632 is a zinc-plated ring eye bolt designed for secure anchoring in animal tie-down applications and general home and farm use. The bolt measures 3/8 inch in diameter and 5-1/8 inches in length, providing a solid steel fastening point with a welded wire ring attached. The included ring features a 2-inch inside diameter and is welded for integrity under load. A nut is included for straightforward installation. This hardware is built for steel wire applications and is sold individually.

This ring eye bolt is suited for residential, agricultural, and light farm settings where a fixed anchor point is needed. Common applications include animal tie-down stations, fence anchoring, and utility rigging on farm structures. The zinc plating provides basic corrosion resistance for outdoor and barn environments. Each unit is sold as a single assembly with the ring and nut included, making it ready for immediate installation without additional hardware.

Key Features

• Zinc-plated finish for corrosion resistance in outdoor and agricultural environments
• Welded wire ring ensures a closed, secure loop under sustained load
• 2-inch inside ring diameter accommodates standard tie-down hardware and rope
• Nut included for complete, ready-to-install assembly
• Designed for steel wire applications in home and farm use

Compatibility

Corresponds to National catalog model No. 2061BC. Designed as a direct-fit replacement or addition for animal tie-down systems and general-purpose anchoring applications on farm and residential structures.

Installation Notes

Installation is typically performed with basic hand tools including a wrench to secure the included nut. Drill a pilot hole sized to the 3/8-inch shank diameter in the mounting surface before threading the bolt through. Ensure the mounting substrate has sufficient load capacity for the intended tie-down application. Inspect the welded ring and nut for secure seating before placing the assembly in service.

Technical Specifications

• Bolt Diameter: 3/8 inches
• Bolt Length: 5-1/8 inches
• Ring Inside Diameter: 2 inches
• Ring Type: Welded wire
• Finish: Zinc plated
• Material: Steel
• Hardware Included: Nut
• Weight: 0.334 pounds
• Sold As: Each

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N220632
