National Marker N197962 Polished Brass Door Surface Bolt 2 in

Product Description

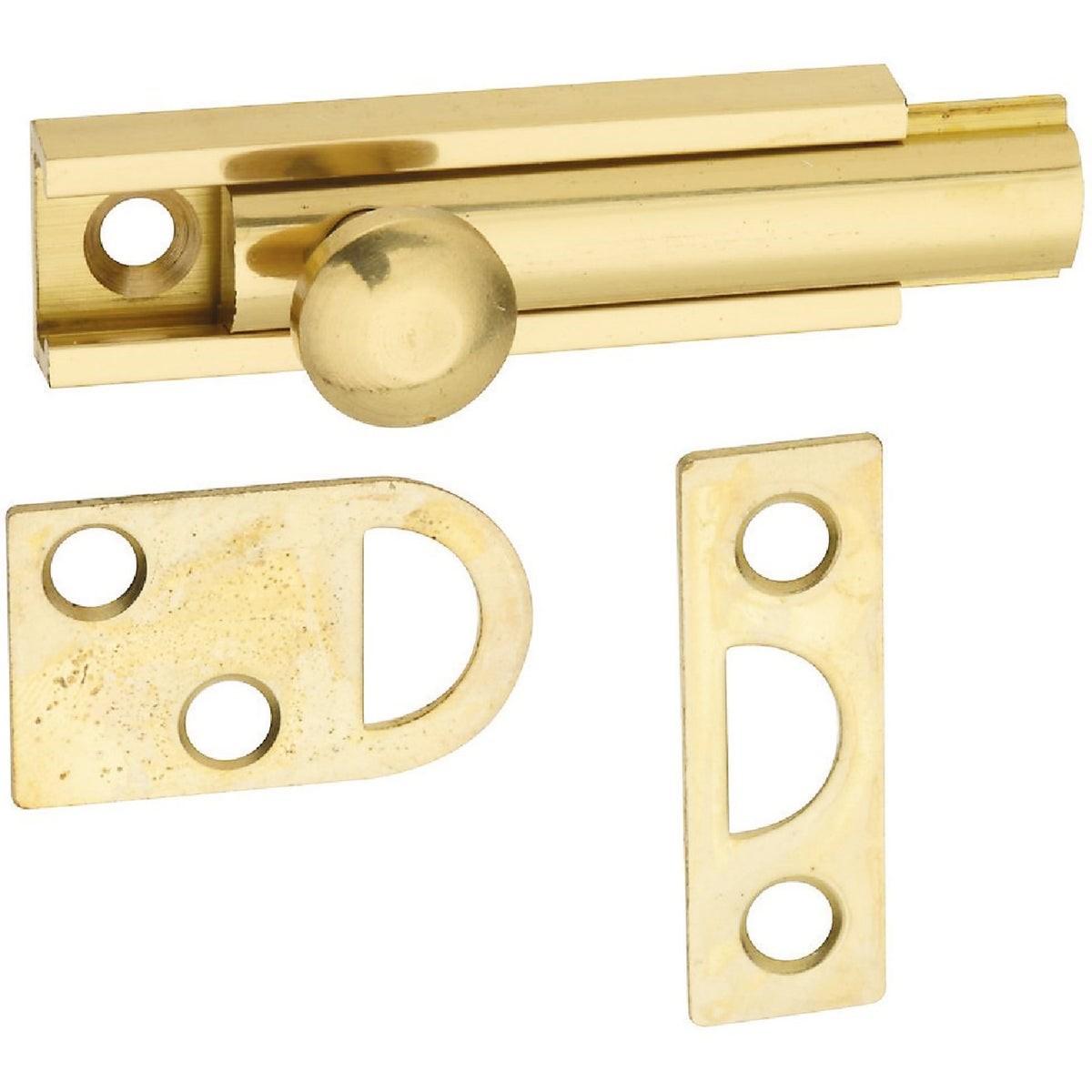

The National Marker N197962 is a 2-inch polished brass surface bolt from the Gallery Series, designed for securing casement windows and French, twin, or Dutch doors. Constructed from solid brass with a polished brass finish, this surface bolt features an extra-long throw that locks into position via a tension spring, providing reliable hold without the need for additional hardware adjustments. The concealed base design prevents contact with and damage to wood door surfaces, making it well suited for finish carpentry applications. Installation is handled by carpenters, finish trim contractors, and general contractors during door hardware rough-in or finish stages.

This surface bolt is intended for residential and light commercial applications where surface-mounted locking hardware is required on casement windows or French, twin, or Dutch doors. The 2-inch throw length suits standard door and window stile widths. Includes both universal and mortise strike options, offering flexibility across a range of door frame configurations and installation conditions.

Key Features

• Solid brass construction with polished brass finish for corrosion resistance and aesthetic consistency
• Extra-long throw bolt held in open or closed position by internal tension spring
• Concealed base design will not mar or scratch wood door and window surfaces
• Includes both universal and mortise strike plates for installation flexibility
• Compatible with casement windows and French, twin, or Dutch door configurations
• Available in 2 inch, 3 inch, and 4 inch bolt lengths

Compatibility

Designed for surface-mount installation on casement windows and French, twin, or Dutch doors. Suitable for residential and light commercial door and window hardware applications where a surface bolt with concealed base is specified.

Installation Notes

Surface bolts of this type are typically installed by carpenters or general contractors using standard hand tools including a drill, screwdriver, and level. Power down any associated electric strike or access control hardware before working on the door assembly. Ensure the strike plate is aligned with the bolt throw path before fastening to avoid binding. Follow applicable local building codes regarding door hardware for egress and security requirements.

Technical Specifications

• Bolt Length: 2 inches
• Material: Solid Brass
• Finish: Polished Brass
• Bolt Retention: Tension Spring
• Included Strikes: Universal and Mortise
• Weight: 0.155 pounds
• Sold As: Each
• UPC: 00038613197961

Standard Information

• Brand: National Marker
• Manufacturer Part Number: N197962
