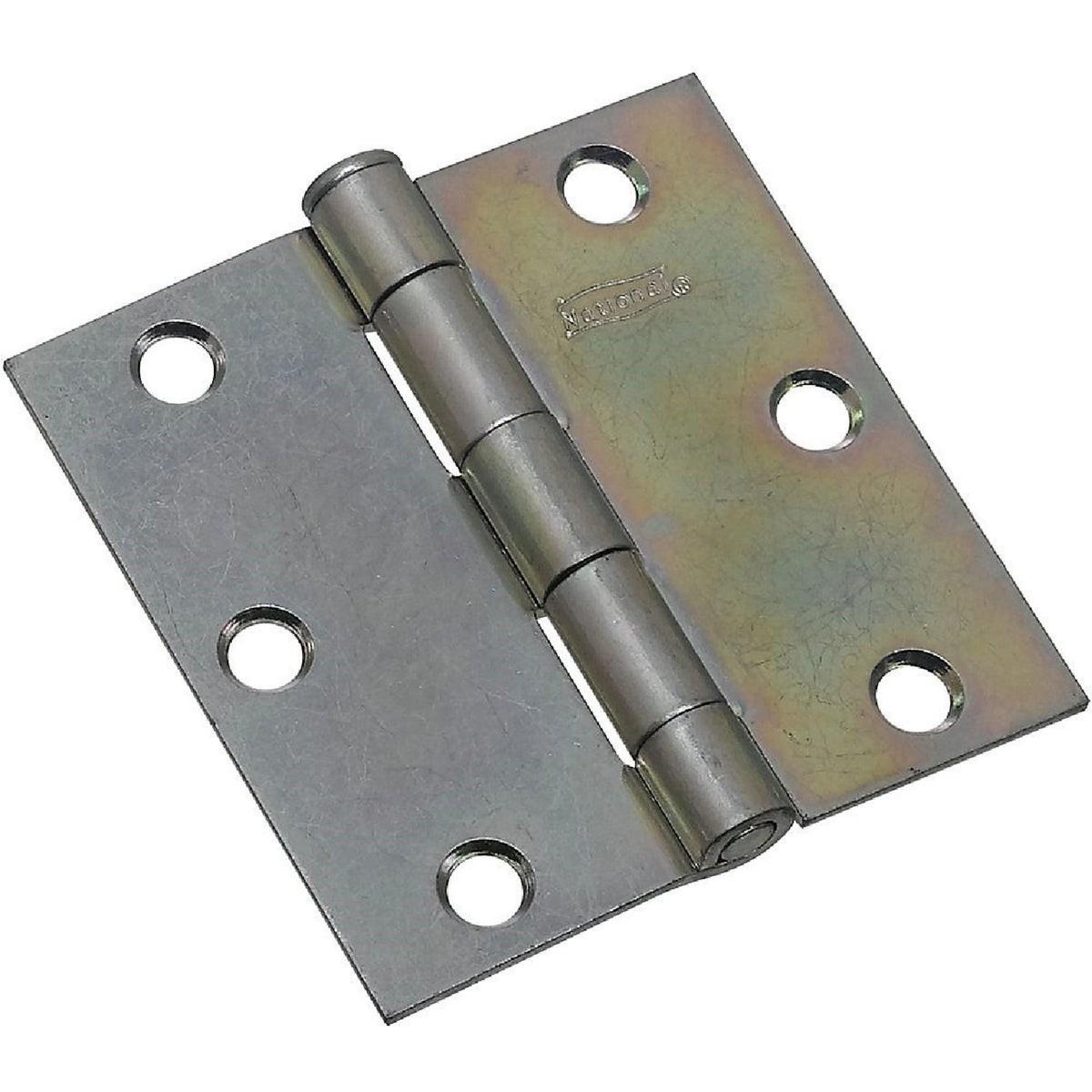

National Marker N195651 Broad Door Hinge 3 Inch 2-pack

Product Description

The NATIONAL MARKER N195651 is a 3-inch square broad door hinge constructed from galvanized steel with a brass pin, sold as a 2-pack. This removable-pin hinge is engineered for general utility and industrial door applications where reliable, durable pivot hardware is required. The loose pin design allows a door to be lifted free of the frame without removing the hinge leaves from the door or jamb, saving time during service and replacement work. Swaged leaves allow for mortise-style installation, seating flush into the door edge and jamb for a clean, tight fit. Installers in light industrial, commercial, and utility settings will find this hinge suited to frequent-use door cycles.

This hinge is appropriate for residential utility doors, commercial interior doors, and light industrial applications requiring a standard 3-inch square mortise hinge. The zinc-plated steel construction with brass pin resists corrosion in typical indoor environments. It is commonly installed by carpenters, maintenance technicians, and general contractors on wood or hollow-metal doors where a swaged broad hinge pattern is specified. The 2-pack quantity suits single-door installations requiring a standard two-hinge set.

Key Features

• Removable loose pin allows door removal without uninstalling hinge leaves
• Swaged leaves designed for mortise installation, flush with door edge and jamb
• Galvanized steel construction with brass pin for corrosion resistance
• 3-inch square broad hinge pattern suits general utility and industrial doors
• Sold as a 2-pack, covering a standard single-door installation

Compatibility

Designed as an OEM-style replacement and general-use hinge compatible with standard 3-inch square mortise hinge applications on wood and hollow-metal doors in utility and light industrial settings. Corresponds to National catalog model V504 through V504BC series.

Installation Notes

Installation is typically performed by a carpenter or maintenance technician using a chisel and mallet to cut the mortise pocket, along with a drill and screwdriver for fastening. Ensure the door is properly supported and the frame is plumb before marking and cutting mortises. The loose pin should be fully seated before the door is placed under load. Follow applicable building codes for hinge quantity and placement based on door height and weight.

Technical Specifications

• Hinge Size: 3 inches square
• Material: Galvanized steel with brass pin
• Finish: Zinc plated
• Pin Type: Removable loose pin
• Installation Type: Swaged mortise
• Package Quantity: 2-pack (pair)
• Weight: 0.662 pounds
• UPC: 00038613195653

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N195651
