National Marker N148221 Steel Continuous Hinge 1-1/16x30 in

Product Description

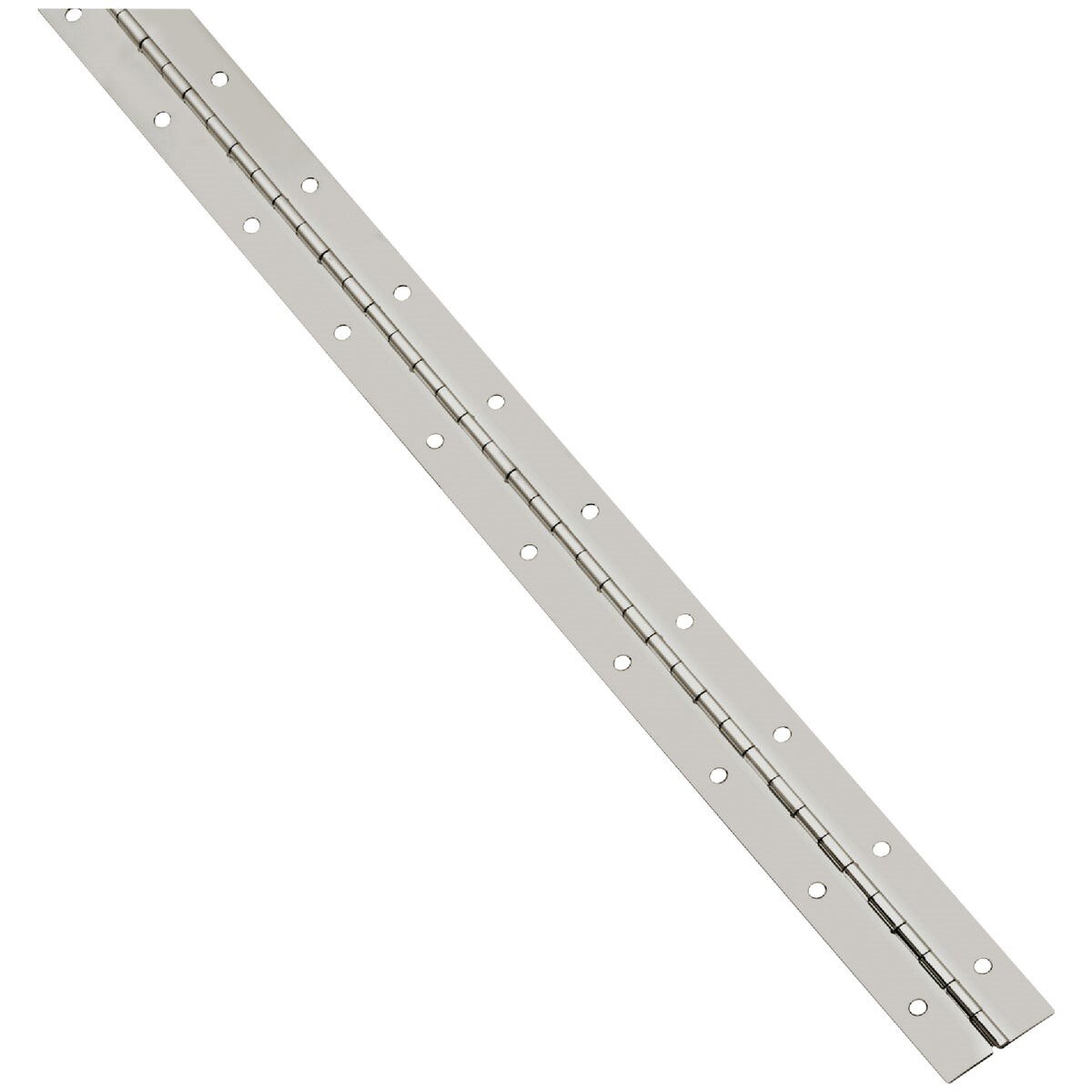

The NATIONAL MARKER N148221 is a steel continuous hinge finished in nickel, part of the V570 series. It measures 1-1/16 inches wide by 30 inches long and is designed for light-duty cabinet and fixture applications. The hinge features an electrofilm-coated pin measuring 0.090 inches in diameter for rust resistance. At a gauge of 0.042, it provides consistent leaf thickness along the full 30-inch run. Screw holes are spaced 2 inches apart for straightforward mounting alignment. Installers can cut this hinge to any desired length without losing the friction pin, which is retained by design throughout the full length of the barrel.

This continuous hinge is suited for residential and light commercial applications including tool chests, storage cabinets, folding tables, and hobby project enclosures. Its full-length barrel distributes load evenly across the hinge joint, making it a practical choice wherever a standard butt hinge would create stress points. Supplied as a single unit and packed with a Phillips flat No. 4 x 1-2 inch screw for immediate installation.

Key Features

• Full-length piano-style hinge runs 30 inches for continuous load distribution
• Electrofilm-coated pin resists rust and corrosion
• Field-cuttable to any desired length without pin loss
• Screw holes spaced 2 inches apart for consistent fastener layout
• 0.042-inch gauge steel construction
• Includes Phillips flat No. 4 x 1-2 inch mounting screw

Compatibility

Designed as a standard continuous hinge replacement suitable for tool chests, cabinets, folding tables, and similar light-duty enclosure applications requiring a full-length hinge joint.

Installation Notes

Install using appropriate Phillips-head screwdrivers or a screw gun set to a controlled torque to avoid stripping the mounting holes. Ensure the mating surfaces are clean, flat, and properly aligned before fastening. If cutting to length, use tin snips or a hacksaw and deburr the cut ends before installation. No special certifications or licensed trade are required for standard cabinet and fixture hinge installation.

Technical Specifications

• Width: 1-1/16 inches
• Length: 30 inches
• Gauge: 0.042 inches
• Pin Diameter: 0.090 inches
• Screw Hole Spacing: 2 inches
• Material: Steel
• Finish: Nickel
• Pin Coating: Electrofilm
• Weight: 0.5 pounds
• Included Hardware: Phillips flat No. 4 x 1-2 inch screw

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N148221
