National Marker N141879 Brass Loose-pin Narrow Hinge 2-pack

Product Description

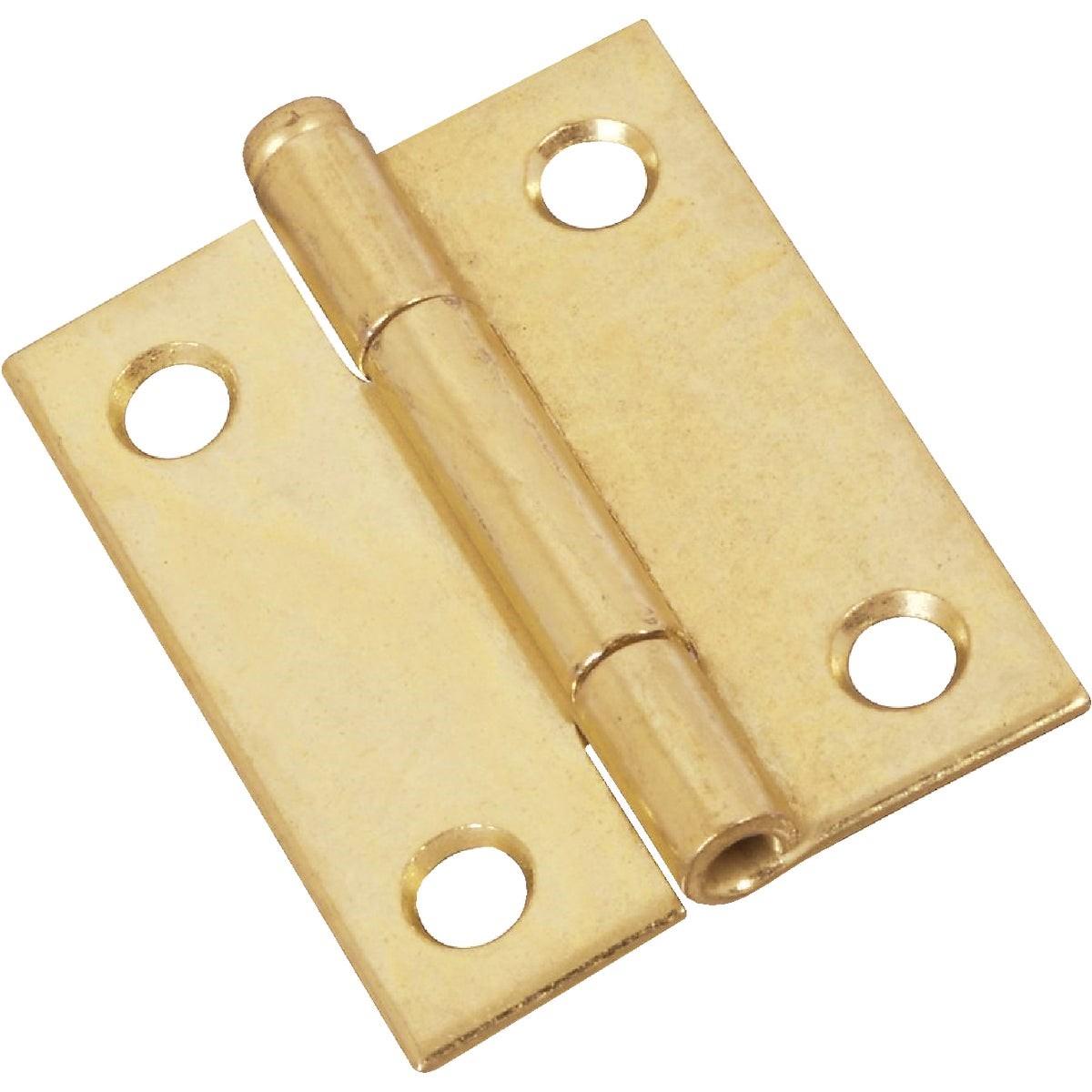

The NATIONAL MARKER N141879 is a 2-inch brass loose-pin narrow hinge sold in a two-pack with screws included. Built to the catalog 508 series specification, the hinge features a removable pin that allows door or panel removal without unscrew­ing the leaf plates. The body is cold-rolled steel with a zinc and satin brass finish applied for corrosion resistance and appearance. This is a standard residential and light commercial fastening component used by carpenters, millwork installers, and general contractors wherever a narrow-leaf hinge profile is required.

This hinge is suited for interior door and cabinet applications where a slim hinge profile is needed and periodic panel removal is anticipated. The loose-pin design makes it practical for doors that must be lifted free of the frame without disturbing the mounted leaves. It ships as one pair in a visual retail pack, making it a straightforward replacement or new-installation option for light-duty wood and hollow-core door assemblies.

Key Features

• Loose-pin design allows door or panel removal without uninstalling the hinge leaves
• Cold-rolled steel construction with zinc and satin brass finish
• 2-inch narrow leaf profile for slim door and cabinet applications
• Includes mounting screws in the pack
• Sold as one pair (2-pack) in a visual retail pack
• Catalog 508 series for consistent spec sourcing

Compatibility

Designed as an OEM-style replacement or new-installation hinge for light-duty interior doors, cabinet doors, and similar wood-framed assemblies requiring a 2-inch narrow loose-pin hinge profile.

Installation Notes

Installation is performed by carpenters or general maintenance trades using standard wood screws and a screwdriver or drill driver. Mortise the hinge leaf into the door edge and frame jamb to achieve a flush fit before driving screws. Ensure the pin is fully seated after hanging the door to prevent unintended removal. Follow applicable local building codes for door hardware installation in commercial or fire-rated assemblies.

Technical Specifications

• Hinge Size: 2 inches
• Pin Type: Loose pin
• Base Material: Cold-rolled steel
• Finish: Zinc and satin brass
• Quantity: 1 pair (2-pack) with screws
• Catalog Series: 508
• Package Weight: 0.179 pounds
• UPC: 00038613141872

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N141879
