National Hardware N830-117 Handrail Bracket Adjustable

Product Description

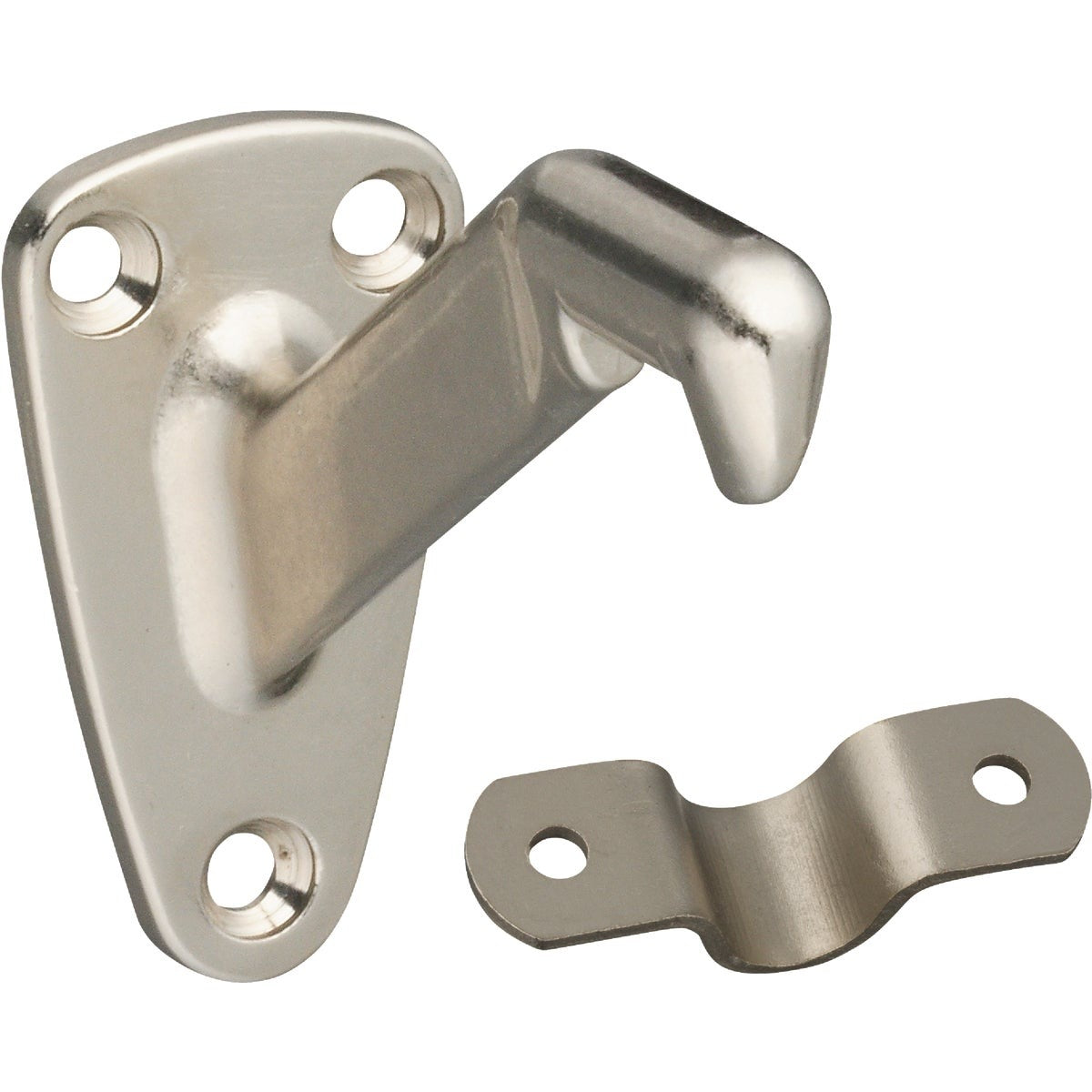

The NATIONAL HARDWARE N830-117 is a heavy-duty handrail bracket designed to secure wooden handrails to wall studs or other structurally sound surfaces. The bracket and strap assembly adjusts to any stairway angle, making it suitable for both standard and non-standard stair configurations. The body is constructed from zinc die-cast material, and the strap is steel, providing a durable combination for long-term structural support. This bracket is installed by carpenters, general contractors, and finish trades working on residential or commercial stairway projects.

This bracket is intended for use on interior stairways where a wood handrail must be anchored to a wall framing member or equivalent structural surface. It suits new construction and retrofit applications where code-compliant handrail support is required. Maximum spacing between brackets must not exceed 48 inches per product specification. Each package contains one bracket and strap assembly.

Key Features

• Adjustable angle strap accommodates any stairway pitch without additional hardware
• Zinc die-cast body resists corrosion and provides rigid support
• Steel strap delivers tensile strength at the handrail connection point
• Maximum bracket spacing of 48 inches for compliant handrail installation
• Secures to wall stud or other structurally sound substrate

Compatibility

Designed as an OEM-style replacement or new-installation bracket for wooden handrails on residential and light commercial stairways requiring wall-mounted support.

Installation Notes

Installation should be performed by a qualified carpenter or contractor following applicable building codes, including IRC handrail attachment requirements. Power down any nearby low-voltage systems before drilling into walls, and confirm stud location before fastening. Do not space brackets more than 48 inches apart. Fasten directly into wall studs or a structurally equivalent surface — drywall anchors alone are not a substitute for solid framing attachment.
