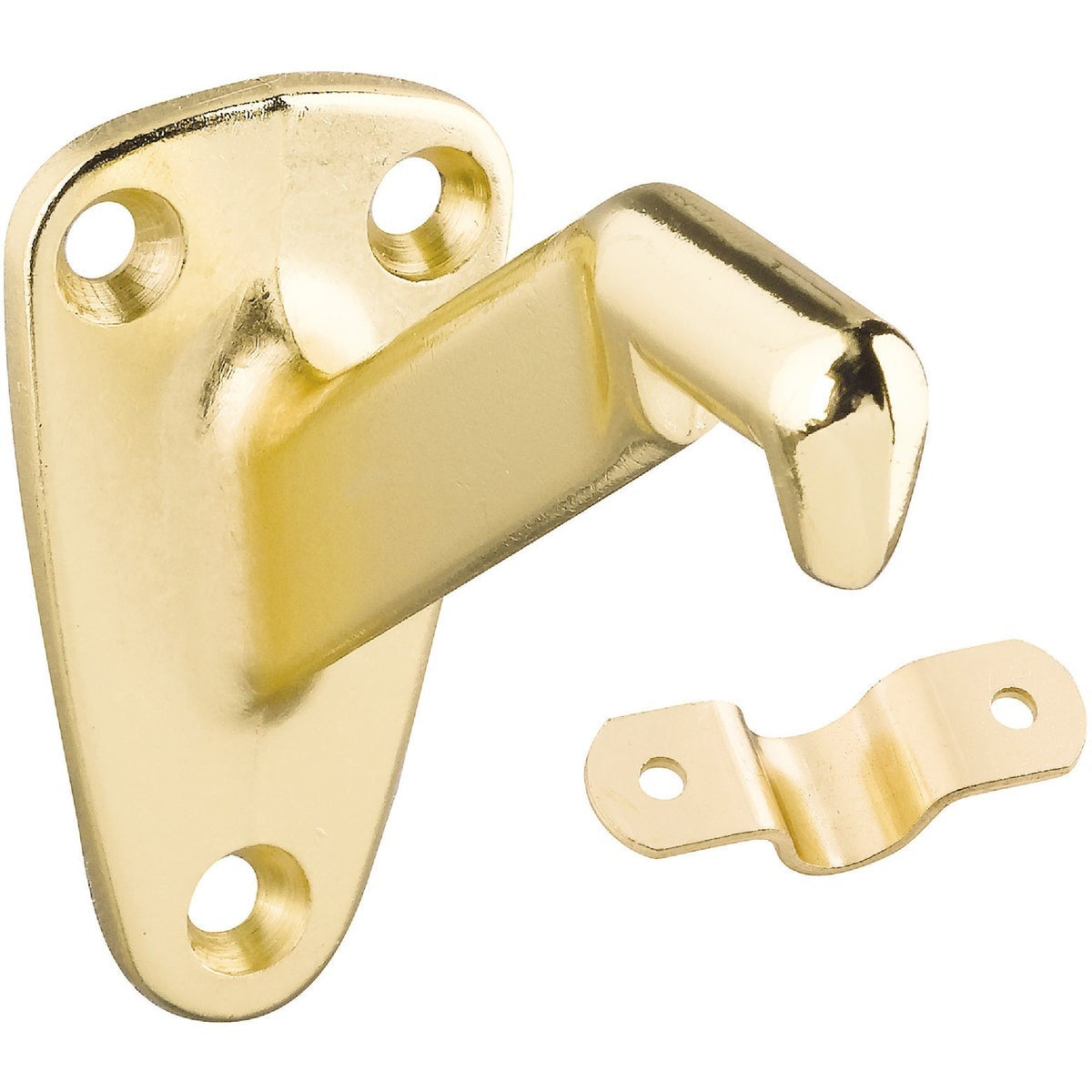

National Hardware N112-888 Handrail Bracket Adjustable Angle

Product Description

The NATIONAL HARDWARE N112-888 is an adjustable handrail bracket designed to secure a wood handrail to a wall stud or other structurally sound surface. The bracket body is zinc die-cast and the strap is steel, giving the assembly durability appropriate for residential stair applications. Both the bracket and strap adjust to accommodate any stairway angle, eliminating the need for separate fixed-angle hardware at different pitch installations. Maximum recommended spacing between brackets is 48 inches on center. This hardware is commonly installed by carpenters, contractors, and skilled tradespeople during stair construction or handrail retrofit projects.

This bracket is suited for residential stair handrail installations where a wood rail must be anchored to a framed wall or solid structural backing. It is appropriate for interior stair applications and performs best when fastened directly into wall studs. The adjustable strap design makes it practical across a range of common stair pitches without requiring modification. It is sold individually, one bracket per package, allowing installers to purchase the exact quantity needed for a given run.

Key Features

• Adjustable bracket and strap accommodate any stairway angle without special tooling
• Zinc die-cast body provides corrosion resistance and structural rigidity
• Steel strap delivers tensile strength at the rail contact point
• Maximum bracket spacing of 48 inches on center for proper rail support
• Designed for attachment to wall studs or equivalent structurally sound surfaces

Compatibility

Designed as an OEM-style replacement and standard-fit bracket for wood handrail installations on residential staircases requiring wall-mounted rail support.

Installation Notes

Installation should be performed by a qualified carpenter or contractor familiar with local building code requirements for handrail support spacing and fastener specification. Fasten the bracket only into wall studs or verified structural backing — drywall anchors alone are not a code-compliant substitute for stud attachment on load-bearing handrail hardware. Space brackets no more than 48 inches apart along the rail run. Confirm all fasteners are fully seated and the strap angle is locked before applying rail load.
