Napoleon W010-0799 SIT Complete Pilot Assembly LP

Product Description

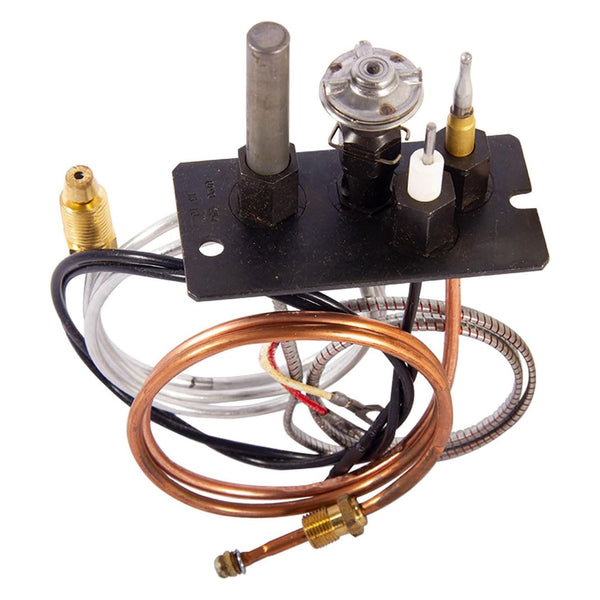

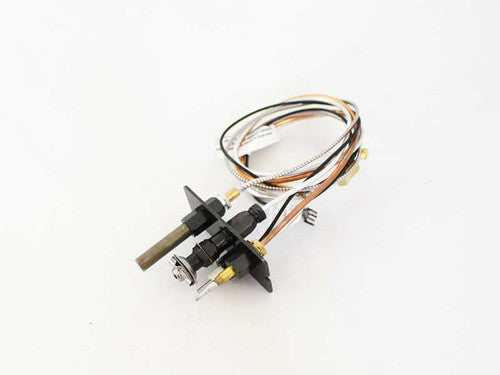

The NAPOLEON W010-0799 is a replacement SIT complete pilot assembly for some Napoleon gas stoves. This assembly includes the thermopile, thermocouple, electrode, wire, and pilot tube. It is designed for use with liquid propane gas only and outputs a 3-way flame. Verify the pilot assembly is SIT and not PSE before ordering.

• Genuine OEM Napoleon Part
• Includes thermopile, thermocouple, electrode, wire, and pilot tube
• For use with LPG (liquid propane gas) only

Product Highlights

This complete pilot assembly is a genuine NAPOLEON replacement part for select gas stoves and fireplaces. It includes all necessary components for installation.

Product Information

Standard Information

• Brand: NAPOLEON
• Manufacturer Part Number: W010-0799

Technical Specifications

• Thermopile Length: 24 in.
• Thermocouple Length: 600 mm
• Pilot Tip Temp. Rating: 1450°F
• Electrode Tip Temp. Rating: 1480°F
• Electrode Wire Length: 620 mm
• Electrode Wire Connector: Female 2.4 mm
• Part Type: Pilot Assemblies
