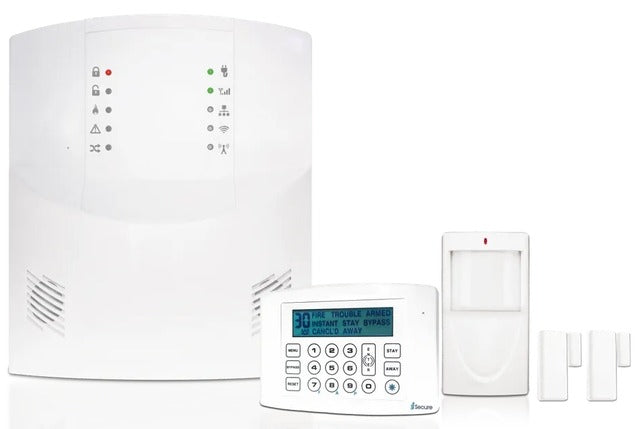

Napco isec-kit1 Wireless Security Kit with Starlink Lte

Product Description

The NAPCO isec-kit1 is a self-contained wireless security kit built around the iSecure Go-Anywhere Hub with built-in StarLink LTE communication. The hub supports up to 80 wireless zones and points covering intrusion and fire detection, up to 2 independent areas, and up to 90 user codes. An integral 85 dB siren is built into the base unit. The hub is plug-in AC powered with provision for a standard 4 Ah, 12-volt backup battery. Over-the-air (OTA) firmware updates are supported. The kit ships as a complete starter package intended for licensed alarm installation technicians deploying a low-profile, cellular-based security system without the need for a traditional phone line or broadband connection.

This kit is suited for residential and light commercial applications where a hardwired panel installation is impractical or undesirable. The Go-Anywhere Hub can be placed in a secure interior location, mounted on a wall, or set freestanding on a shelf. The included wireless LCD keypad is lithium battery powered, eliminating keypad wiring runs. Two wireless window and door transmitters and one wireless PIR motion sensor with a 50-foot by 50-foot detection range are included, providing immediate basic perimeter and interior coverage out of the box. The StarLink LTE communicator provides primary communication for alarm reporting without a broadband or POTS line dependency.

Key Features

• Built-in StarLink LTE communicator for primary alarm reporting without a phone line or broadband connection
• Supports up to 80 wireless zones and points for intrusion and fire detection
• Integral 85 dB siren built into the hub
• Up to 2 independent areas and 90 user codes
• Over-the-air (OTA) firmware updates supported
• Provision for standard 4 Ah, 12-volt backup battery for continued operation during AC power loss
• Kit includes wireless LCD keypad, two door and window transmitters, and one PIR motion sensor

Compatibility

The isec-kit1 is designed for use with NAPCO iSecure series wireless sensors and transmitters. Expansion beyond the included devices uses ISEC-WL series transmitters and sensors compatible with the iSecure platform.

Installation Notes

Installation of this security system should be performed by a licensed alarm installation technician in accordance with local licensing requirements and applicable codes. Power down the hub before connecting or disconnecting the backup battery. Mount the hub in a secure, concealed interior location to deter tampering. Verify cellular signal strength at the intended hub location before finalizing placement.

Technical Specifications

• Communication: Built-in StarLink LTE
• Maximum Wireless Zones: 80
• Maximum Areas: 2
• Maximum User Codes: 90
• Built-in Siren Output: 85 dB
• Backup Battery Provision: 4 Ah, 12 volts (not included)
• Plug-in Transformer: 16.5 volts, 20 VA
• Wireless Keypad: ISEC-WL-KEYPAD, lithium battery powered, LCD display
• Included Transmitters: 2 x ISEC-WL-XMITTER wireless window and door transmitters
• Included Motion Sensor: ISEC-MOTION wireless PIR, 50-foot by 50-foot detection range
• OTA Updates: Supported

Standard Information

• Brand: NAPCO
• Manufacturer Part Number: isec-kit1
