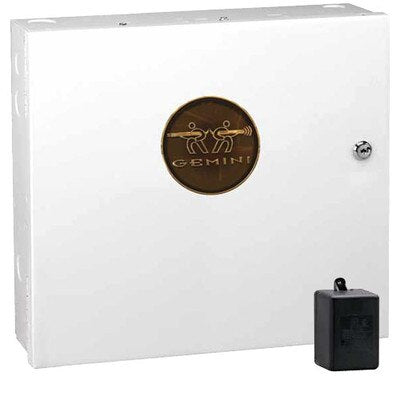

Napco GEM-P1632INTROP Gemini P1632 Security Panel, 8-32 Zones

Product Description

The NAPCO GEM-P1632INTROP Gemini P1632 Security Panel is designed for residential and light commercial applications. This hardwire/wireless control panel features programmable partitioning, allowing independent control of two separate areas. With up to 32 user codes, EZ programming, and 400 logged events, this security panel is a foundation for a customizable security system.

• Independently Control Two Separate Areas
• Compatible with all standard Gemini crystal-control wireless technology
• Supports up to 32 users, 7 keypads, and 400 logged events

Product Highlights

Ideal for homeowners needing a versatile and comprehensive security system. Features EZ programming and supports two RF receivers, an interior bypass group, and automatic system arming.

Product Information

Standard Information

• Brand: NAPCO
• Manufacturer Part Number: GEM-P1632INTROP
• Country of Origin: Dominican Republic

Technical Specifications

• Control Panel: Eight end-of-line resistor burglary zones programmable for Area (expandable to sixteen end-of-line resistors with zone doubling), Exit/Entry Follower, Day Zone, Chime, Fire Options, Swinger Shutdown, Zone ANDing and a variety of other features
• Zones Supported: Supports up to 32 zones with optional zone-expansion modules, wireless receiver modules and 4-zone keypads
• Users Supported: Supports up to 32 individually coded users
• Outputs: Supports three outputs (Bell, PGM1 and PGM2) and up to eight external relay outputs using the optional Relay Module NPRB3008
• Keypad Panics: Supports three keypad panics: Fire, Police and Auxiliary
• Partitions: Supports two independent area partitions
• Access Stations: Supports up to seven access stations (keypads) by up to 32 users
• X-10 Devices: Supports up to 8 separately-addressable X-10 devices with the optional NPGEMX10 Interface Kit
• Language: English-language prompts and system status messages
• Zone Descriptions: User-customized zone descriptions, re-programmable as required
• Smoke Detectors: Supports both 2 and 4-wire smoke detectors
• Reporting: Reports alarms, restores and troubles by zone
• Event Log: 400 event log
• Entry Delay Times: Two programmable entry delay times
• Interior Zone Group: One interior zone group
• Battery Test: Dynamic battery test interrupts charging and places battery under load every four hours
• Chime: Chime by zone; programmable duration
• Programmable: Quickloader programmable
• PGM Outputs: 2 PGM outputs
• Wireless Devices: Supports Gemini wireless devices
• Communicator: Compatible with all major receiver formats, including 4/2, SIA and Point ID (except Radionics Modem II)
• Dial Type: Rotary dial and touch tone with rotary backup
• Telephone Numbers: Three 20-digit telephone numbers
• Reporting Options: Backup Reporting; Double Reporting; Split Reporting
• User Codes: 32 user codes with Opening/Closing- reporting by user
• AC Failure Reporting: AC failure reporting with programmable report delay
• Telephone Line: Supervised telephone line with programmable delay
• Pager: Pager capability
• Output Power: 500mA/2A; with optional 40VA trans 650mA/2A
• Step-Down Transformer: 16.5 – 18.0 VAC via Class 2 40VA
• Operating Temperature: 0 to 49 degrees C
• Input Power: 16.5VAC via Class 2 plug-in 40VA transformer
• Loop Voltage: 10-13VDC
• Loop Current: 2.5mA with 2.2k ohm EOLR; 5mA for 2-wire fire
• Loop Resistor: 300 ohm max.; 50 ohm max for 2-wire fire
• Aux and Remote Power: 12VDC regulated
• Combined Standby Current: 650mA
• Alarm Current: 2A
• Burg. Voltage Output: 1; Programmable negative outputs: 2
• Certifications: UL Listed
• Brand Name: Napco Security Technologies
• Manufacturer Part Number: GEMP1632INTROPK
• Product Type: Universal Alarm Control/Communicator
