NACHI 5209-2NS 5200 Angular Contact Ball Bearing

Product Description

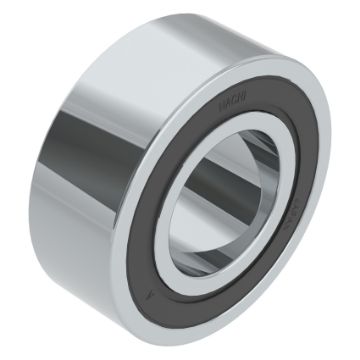

The NACHI 5209-2NS is a double-row angular contact ball bearing designed for multiple applications. This bearing measures forty-five millimeters in bore diameter, eighty-five millimeters in outside diameter, and has a width of thirty-point-two millimeters. It features a contact angle of twenty degrees, allowing it to handle axial loads in both directions efficiently.

• Two rows of balls enhance load distribution
• Designed for high-speed applications
• Maintenance-free sealed design

Product Highlights

This product is ideal for applications in blowers, high-speed vacuum pumps, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Part Number: 5209-2NS

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 85 mm
• Width: 30.2 mm
• Contact Angle: 20 deg
• Load Capacity: 42500 N Dynamic/34500 N Static
• Maximum Speed: 5500 rpm Grease
• Number of Rows: 2
• Closure Type: Double Seal
• Cage Material: Pressed Steel
• Country of Origin: JP
