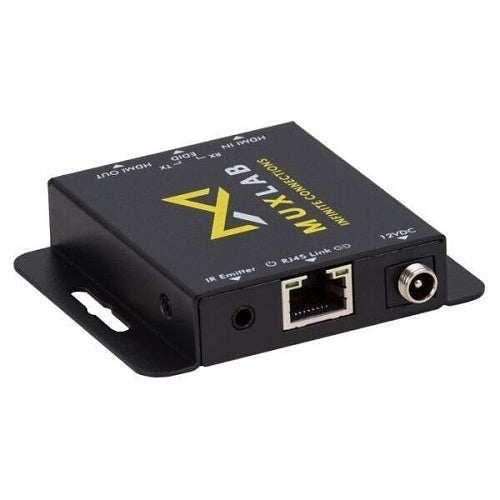

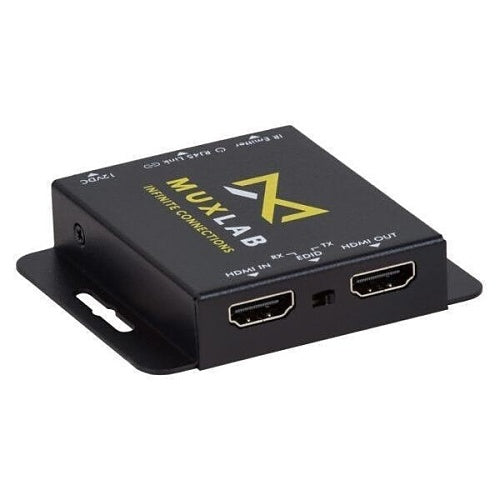

MuxLab 100524 HDMI Extender Kit, 60M, UHD-4

Product Description

The MuxLab HDMI Extender Kit, model 100524, enables the connection of HDMI equipment over CAT6 unshielded twisted pair cable. It supports uncompressed video resolutions up to 4K at 30 frames per second and 1080p at distances up to sixty meters. This kit comes with one transmitter and one receiver. It also includes an IR emitter and IR sensor for remote control operations.

• Supports HDMI resolutions up to 4K/30 (4:4:4).
• Includes HDMI loop-out on the transmitter.
• HDCP 1.4 compliant.

Product Highlights

Ideal for extending HDMI signals in commercial video applications and supports Dolby TrueHD and DTS-HD audio formats.

Product Information

Standard Information

• Brand: MuxLab
• Country of Origin: China

Technical Specifications

• Model Number: 100524
• Video Resolution: Up to 4K/30 (4:4:4)
• Distance: Up to 60 meters at 1080p, 40 meters at 4K
• Compliance: HDCP 1.4
• IR Control: Supports one-way IR
• Includes: One transmitter, one receiver, IR emitter, IR sensor
• Audio Formats: Supports Dolby TrueHD, DTS-HD, and PCM 7.1
