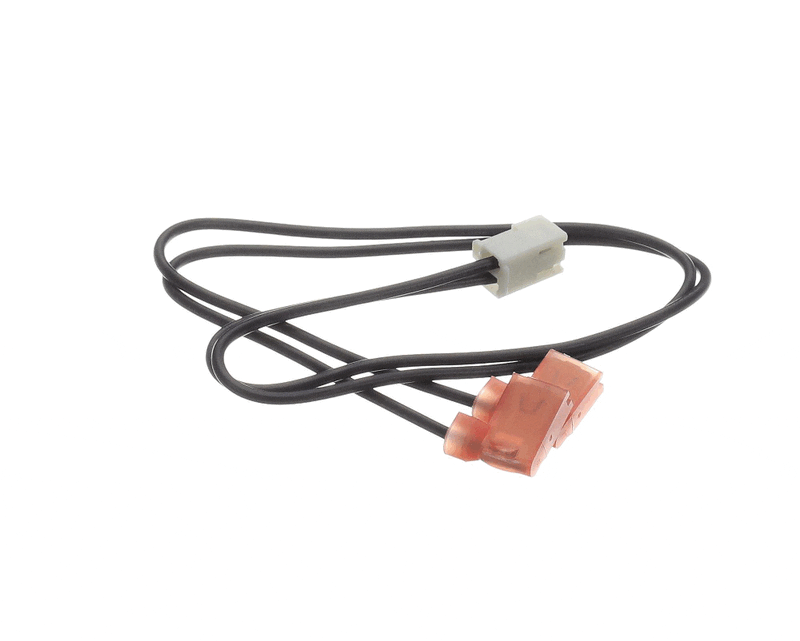

Multiplex 20002329 Hpco Harness for Erc

Product Description

The MULTIPLEX 20002329 is an HPCO (High-Pressure Cutout) wiring harness designed for use with ERC (Electronic Refrigeration Controller) systems in commercial refrigeration and foodservice equipment. This harness serves as the electrical interconnect between the high-pressure cutout switch and the ERC control board, allowing the controller to monitor system pressure conditions and respond to fault states. It is a factory-style replacement component intended for installation by qualified refrigeration technicians or commercial appliance service professionals familiar with Multiplex commercial equipment.

This harness is applicable to commercial refrigeration units manufactured by Multiplex that utilize an ERC control platform with a dedicated HPCO input circuit. Typical installation scenarios include service calls involving control board replacement, harness damage from heat or abrasion, or diagnostic work where wiring integrity is in question. The component is suited to commercial kitchen and foodservice environments where Multiplex equipment is deployed.

Key Features

• Designed to connect the high-pressure cutout switch to the ERC control board
• Factory-style replacement for maintaining original wiring configuration
• Supports HPCO fault detection and system protection functions in the ERC
• Intended for commercial refrigeration and foodservice equipment applications

Compatibility

Designed as an OEM-style replacement harness for Multiplex commercial appliances equipped with an ERC control system and a high-pressure cutout input circuit.

Installation Notes

Installation should be performed by a qualified refrigeration technician or commercial appliance service professional. Disconnect and lock out all power to the unit before removing or installing any wiring harness. Verify harness routing and connector seating after installation to prevent intermittent faults. Consult the equipment service manual for wiring diagrams and connector identification before beginning work.

Technical Specifications

• Application: HPCO to ERC wiring interface
• Equipment Type: Commercial refrigeration and foodservice appliances

Standard Information

• Brand: MULTIPLEX
• Manufacturer Part Number: 20002329
