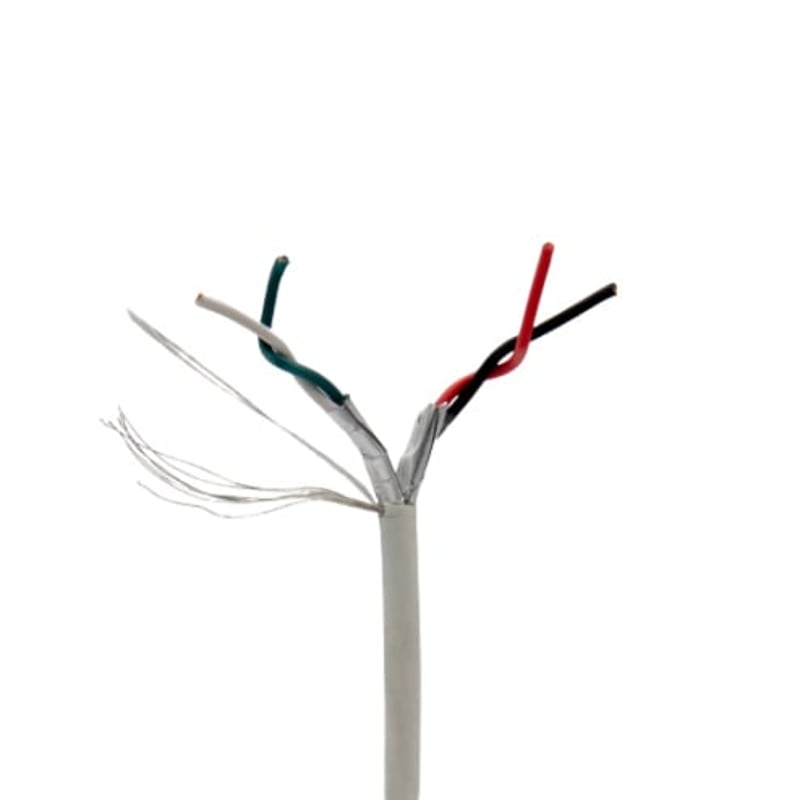

Multiples P49995-1A MWC A30111 18/2PR STR EACH PAIRSHIELDED PLENUM RATED WHITE JACKETBEST 4572PL ADC 911822SD

Product Description

The Multiple P49995-1A is a 18/2 conductor multi-conductor cable designed for data communication and security applications. This cable features solid bare copper conductors with polyvinylchloride insulation and an outer polyvinylchloride jacket. It is suitable for interconnecting electrical devices in security and fire protection signaling systems. The cable can be used in dry or damp locations.

• Conductors are made of solid bare copper.
• Rated for use in plenum spaces.
• Compliance with UL 444 standards.

Product Highlights

This product is ideal for low voltage applications, including security systems, fire alarms, and data communication setups.

Product Information

Standard Information

• Brand: Multiple
• Part Number: P49995-1A

Technical Specifications

• Conductor Size: 18 AWG
• Number of Conductors: 2
• Jacket Material: LS-PVC
• Temperature Rating: 75 degrees Celsius
• Resistance: 6.92 ohms
• Outside Diameter: 0.161 inches
• Length: 1000 feet
• Warranty: 1 year manufacturer defect
