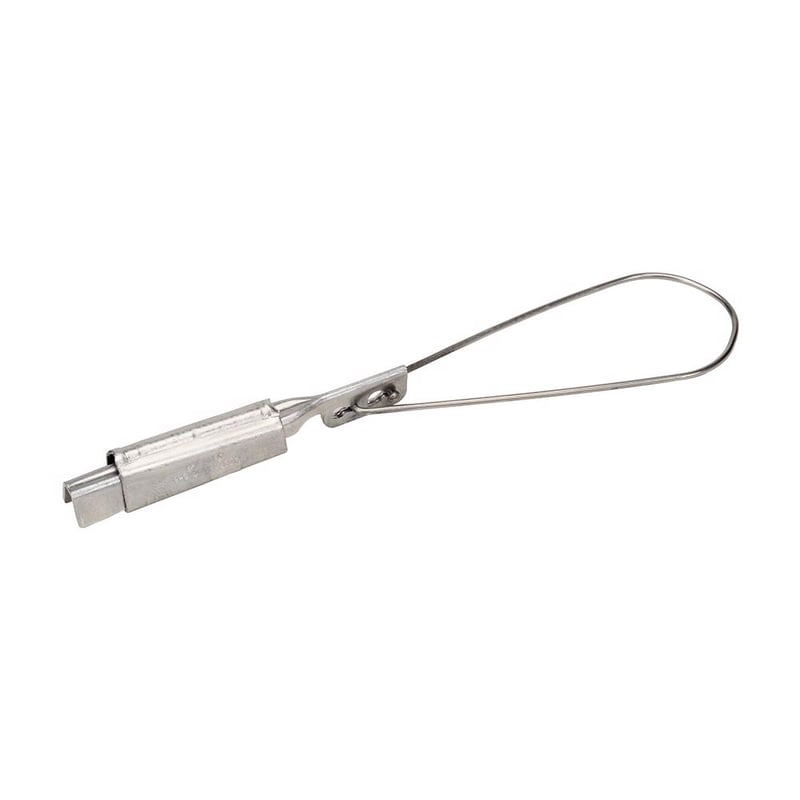

Multiple WGC-2 Wedge Grip, 4-1/0 ACSR, 1-2/0 Replacement WGC-2

Product Description

The Multiple WGC-2 Wedge Grip is designed for connecting service entrance cables to a mounting device or structure. This wedge clamp is suitable for aluminum conductors with a range of sizes from 1/0 to 4. The strong aluminum wedge and shell construction provide durability. The stainless steel bail, measuring six and a half inches, supports various configurations to fit different applications.

• Compatible with service entrance cables
• Aluminum wedge and shell construction
• Full complement of bail configurations

Product Highlights

This wedge grip is ideal for maintaining secure connections in electrical installations. It supports a maximum load of five hundred pounds.

Product Information

Standard Information

• Brand: Multiple
• Part Number: WGC-2

Technical Specifications

• Material: Aluminum Wedge & Shell, Stainless Steel Bail
• Conductor Size: 1/0 to 4
• Application: Connects service entrance cable to a mounting device
• Max Load: 500 lbs.
• Dimensions: Shell diameter from .250 to .414 inches
• Box Quantity: 10
• UPC: 78429752121
• Warranty: One year limited warranty
