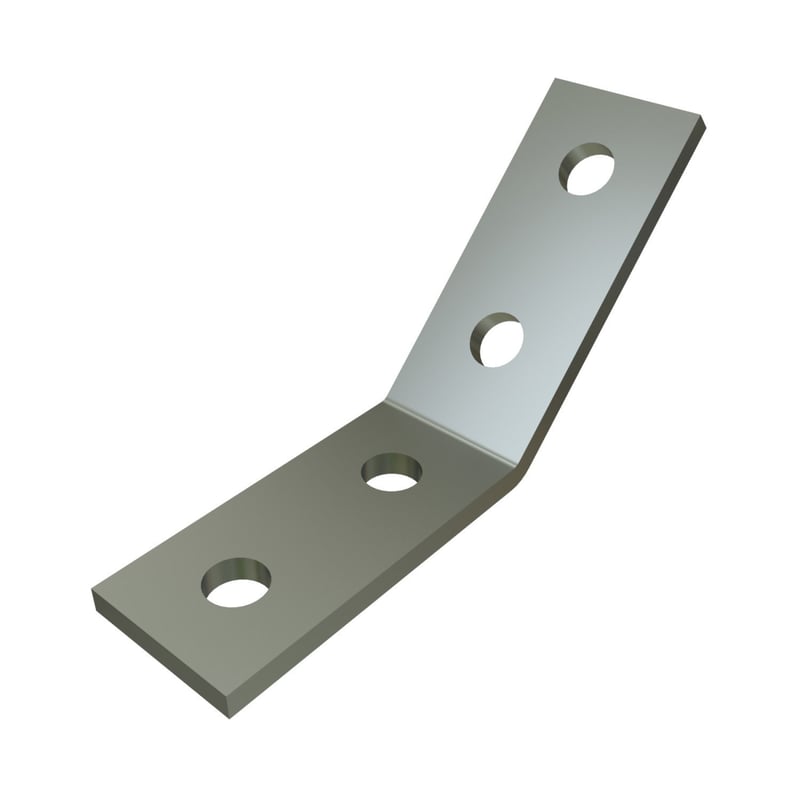

Multiple PS-781-45-DEG-EG 4 Hole 45 Degree Outside Angle Fitting

Product Description

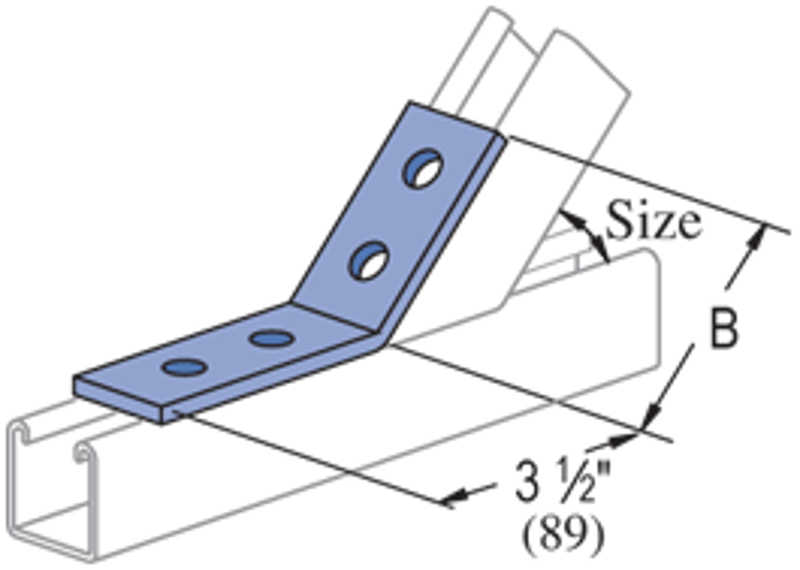

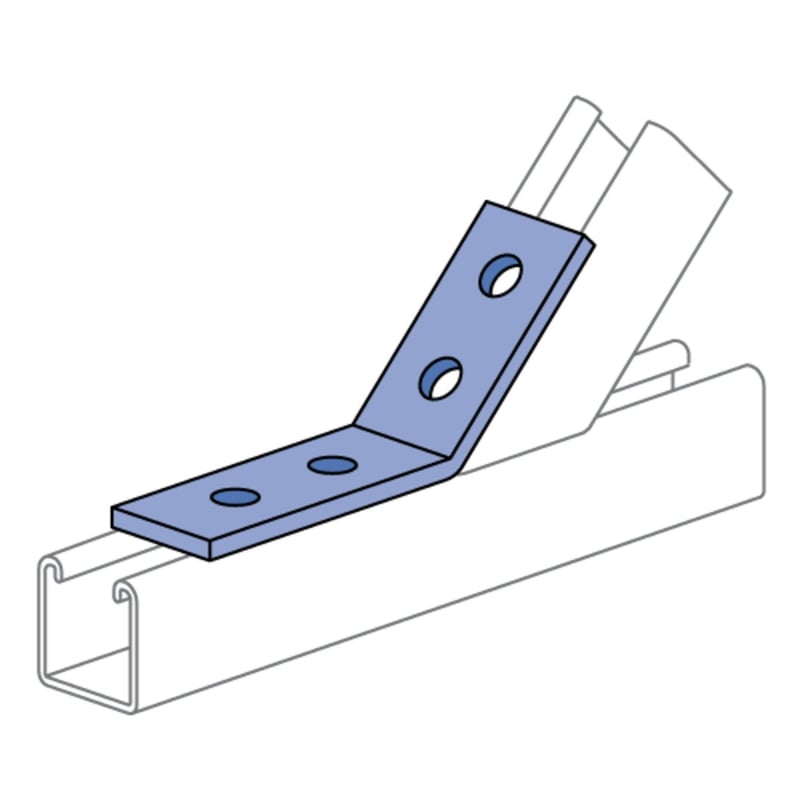

The Multiple PS-781-45-DEG-EG is a 4 hole 45 degree outside angle fitting designed for secure conduit and strut support applications. Made from steel, this fitting follows ASTM A1011 SS GR 33 guidelines. It features four holes to accommodate 1/2 inch fasteners, providing flexibility and stability in installations.

• Material: Steel, compliant with ASTM specifications
• Holes for 1/2 inch fasteners
• Variety of material and finish options available

Product Highlights

This fitting is ideal for industrial and commercial environments, ensuring strong connections and support in electrical or mechanical frameworks.

Product Information

Standard Information

• Brand: Multiple
• Part Number: PS-781-45-DEG-EG

Technical Specifications

• Outside Diameter: 1.655 inches
• Box Quantity: 25
• Application: Industrial and Commercial
• Finish: EG
• UNSPSC: 31162502
• Commodity Code: 2820
• Special Features: Part of Complete System
• Catalog Description: POWER-STRUT FITTING, 45°, 1-5/8x 3-1/2x 3-11/16, EG
