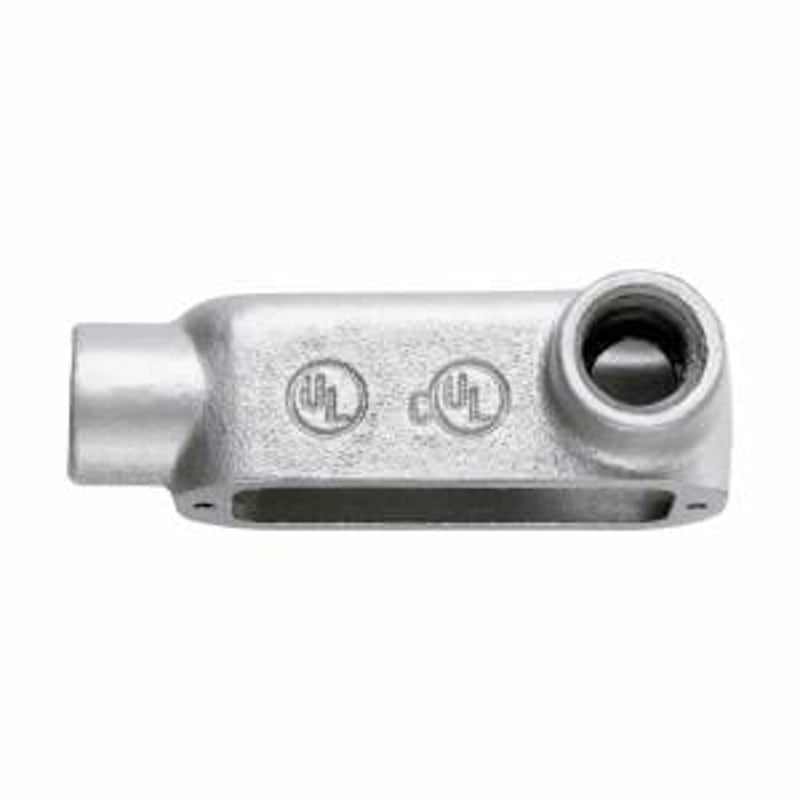

Multiple LR100M 1IN Form 5 LR Conduit Body Malleable

Product Description

The Multiple LR100M is a 1 inch form 5 LR conduit body made from malleable iron. Designed for use in electrical conduit systems, this conduit body facilitates the installation of conductors while providing easy access for maintenance and splicing. The product complies with UL 514B and CSA C22.2 standards, making it suitable for various applications in commercial and institutional structures.

• Trade size is 1 inch.
• Constructed of durable malleable iron.
• Electrogalvanized finish with aluminum acrylic paint for corrosion resistance.

Product Highlights

This conduit body includes built-in rollers from 1.25 inches to 4 inches to aid in wire pulling. It features a domed sheet steel cover, providing additional cubic capacity and an integral gasket cover that meets NEMA 4 ratings.

Product Information

Standard Information

• Brand: Multiple
• Material: Malleable Iron

Technical Specifications

• Form: Form 5
• Type: Conduit outlet body
• Hub Size: 1 inch
• Width: 2.65 inches
• Height: 1.90 inches
• Dimensions: 6.20 inches x 1.90 inches x 2.65 inches
• Finish: Electrogalvanized with aluminum acrylic paint
• Standard Compliance: UL 514B, CSA C22.2, CUL
