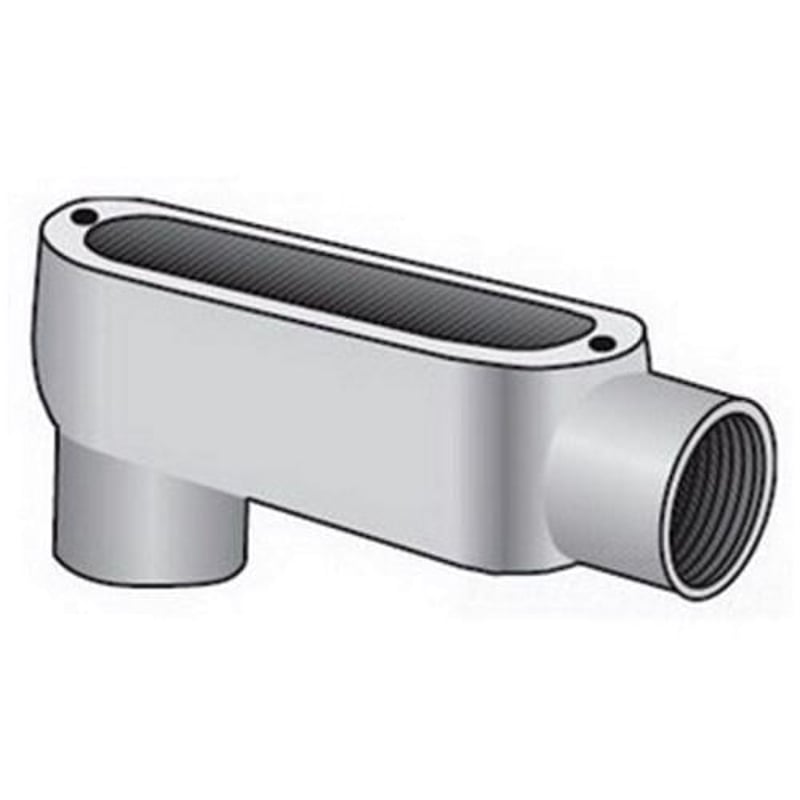

Multiple LB300 3IN Type LB Malleable Iron Conduit Body

Product Description

The Multiple LB300 is a three-inch type LB conduit body made from malleable iron. It is designed for use with rigid conduit and IMC. The length of the conduit body is thirteen and three-fourths inches, and it has a width of four and three-eighths inches. This product features a tapered FNPT connection and supports up to three 400 MCM conductors.

• Hub size: 3 inches
• Volume: 173 cubic inches
• Third party certified: UL listed

Product Highlights

The LB300 is built for reliable conduits. Use it to facilitate electrical connections and change conduit directions safely. Ideal for installation in various environments, ensuring quality and safety.

Product Information

Standard Information

• Brand: O-Z/Gedney
• Material: Malleable Iron

Technical Specifications

• Type: Type LB Conduit Body
• Width: 4-3/8 inches
• Finish: Zinc Electroplated With Aluminum Enamel
• Hub Size: 3 inches
• Connection: Tapered FNPT
• Volume: 173 cubic inches
• Application: For Rigid Conduit And IMC
• Special Features: Raintight when used with gasketed covers, allows connections for branch runs, and provides access for maintenance.
