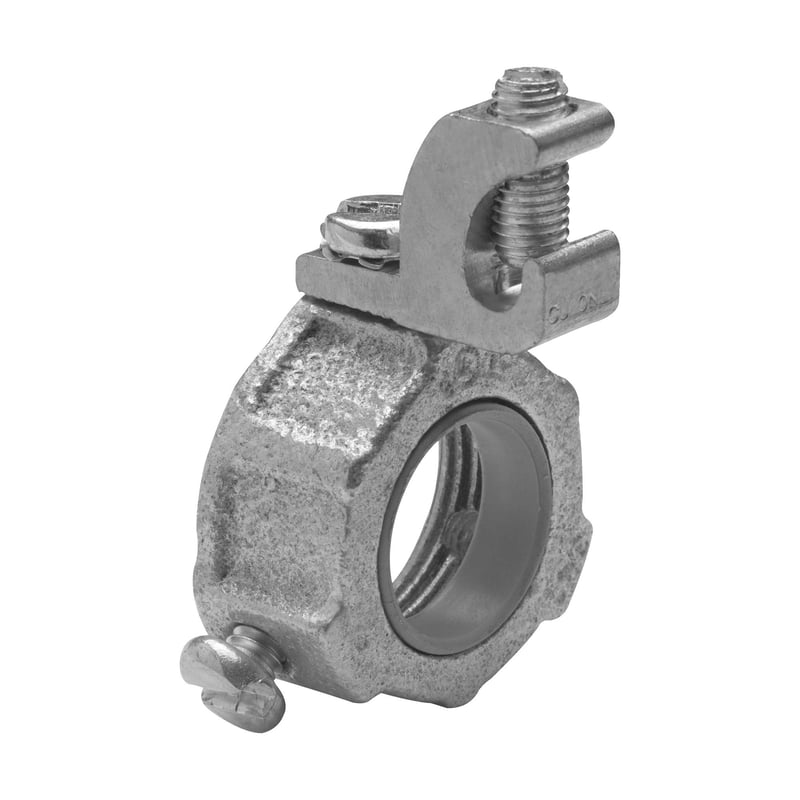

Multiple GLL5C 1-1/2IN Malleable Iron Grounding Bushing

Product Description

The Eaton Crouse-Hinds series GLL5C grounding bushing is made for grounding rigid and IMC conduits. This bushing features a copper lug and supports wire sizes from four to fourteen AWG. It is made from malleable iron to ensure durability and has a temperature rating of one hundred five degrees Celsius. The threaded design allows for easy installation within conduit systems.

• Grounding bushing for rigid and IMC conduit
• Copper lug for wire sizes #4 - 14 AWG
• Durability with malleable iron construction

Product Highlights

The GLL5C grounding bushing is suitable for use in commercial and institutional buildings, ensuring reliable grounding in electrical systems.

Product Information

Standard Information

• Brand: Eaton
• Sub Brand: Crouse-Hinds series

Technical Specifications

• Size: 1-1/2 inches
• Type: Grounding bushing
• Material: Malleable iron body, plastic throat liner
• Connection: Threaded
• Temperature Rating: 105 degrees Celsius
• Resistance: Corrosion and chemical resistance
• Standard Compliance: UL, CSA
• Dimensions: 2.31 inches x 2.31 inches x 0.81 inches
