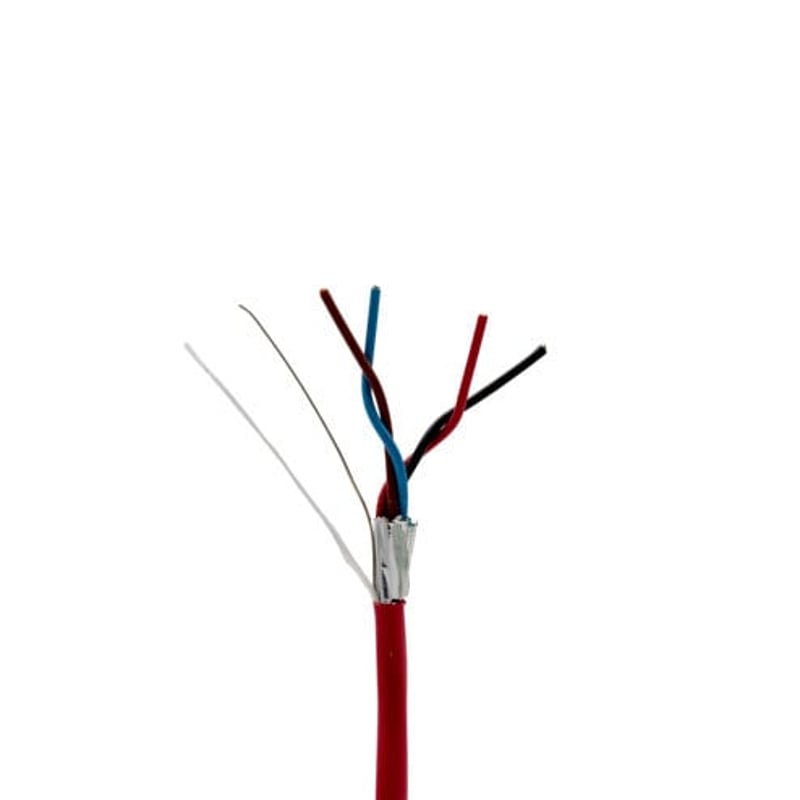

Multiple 856040604 MWC A70078 Fire Alarm 16/4 Solid Shielded Plenum Red FPLP 1000 FT Reel

Product Description

The Multiple model 856040604 is a fire alarm cable designed for signaling and smoke detection systems. It is a sixteen gauge, four conductor, solid shielded plenum cable. This model is suitable for use in plenum spaces.

• Type: FPLP (UL), CMP/FT6 (CUL)
• Voltage rating: 300 V
• Outer diameter: 0.215 inches

Product Highlights

This fire alarm cable is compliant with UL standards and is ROHS compliant. It features a low smoke PVC jacket that reduces smoke emissions in case of fire.

Product Information

Standard Information

• Brand: Multiple
• Part #: 18926

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 16 AWG
• Number of Conductors: 4
• Insulation Material: Low Smoke PVC
• Jacket Material: Low Smoke PVC
• Jacket Color: Red
• Shielding Type: Aluminum Mylar Overall Shield
• Temperature Rating: -20 to 75 Deg C
• Weight: 52.2 lbs/MFt
• Length: 1000 FT
• Application: Smoke Detector, Signaling, Fire Protective Circuit
