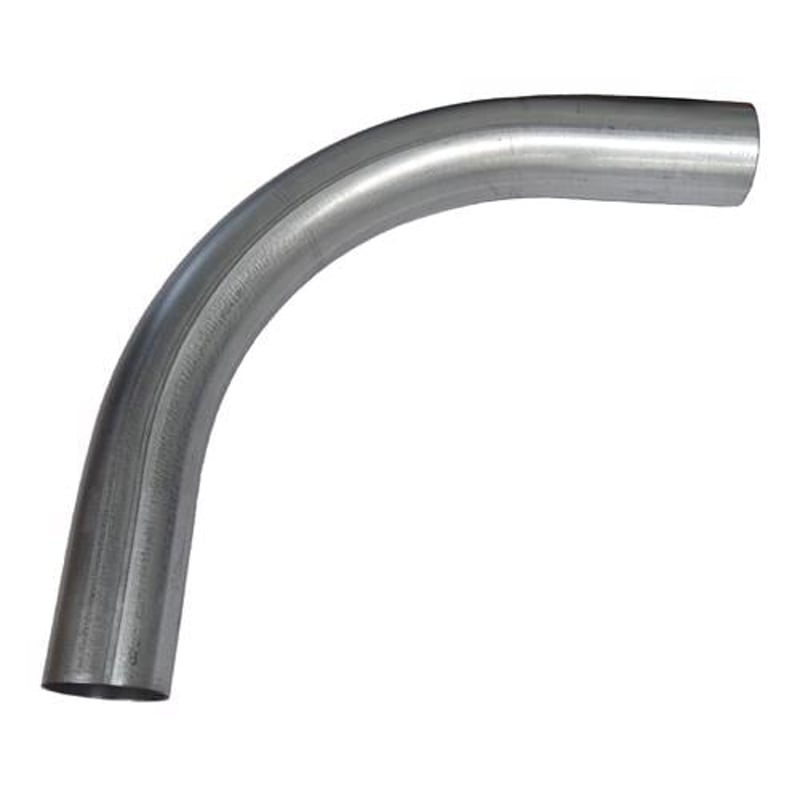

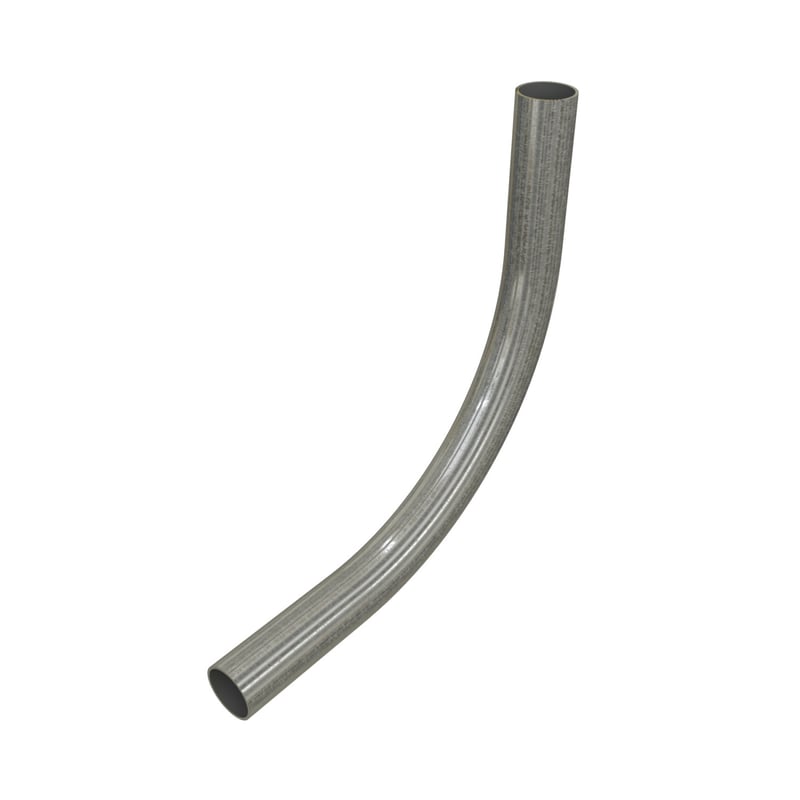

Multiple 8349 3 1/2IN EMT Elbow 90 Degrees

Product Description

The Multiple 8349 3 1/2IN EMT Elbow is a crucial component for electrical installations. This elbow is designed to change the direction of electrical metallic tubing effectively and safely. It is made from galvanized steel, which enhances its durability and resistance to corrosion.

• Constructed from high-quality galvanized steel
• Features E-Z Pull interior coating for easier wire pulling
• Meets UL 797 and ANSI C80.3 standards

Product Highlights

This elbow provides excellent mechanical protection for conductors. The smooth raceway design allows for quick wire installations and reduces friction during the pulling process.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8349

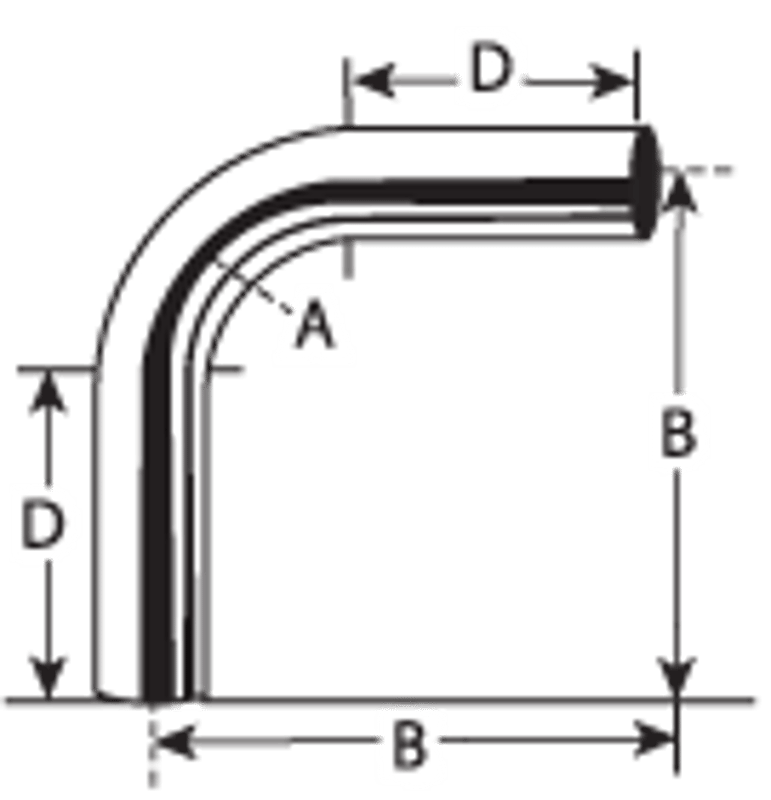

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Trade Size: 3 1/2IN
• Bend Radius: 15 inches
• Wall Thickness: 0.083 inches
• Inside Diameter: 3.834 inches
• Outside Diameter: 4.000 inches
• Application: Used to change the direction of a raceway
