Multiple 8292 4IN EMT Elbow 45 Degrees Replacement MPN

Product Description

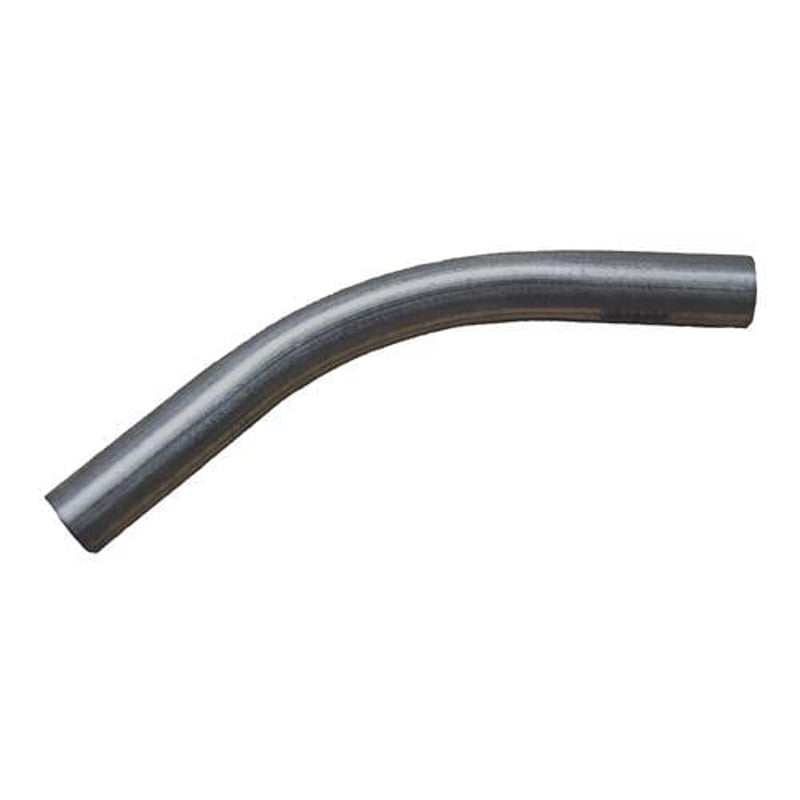

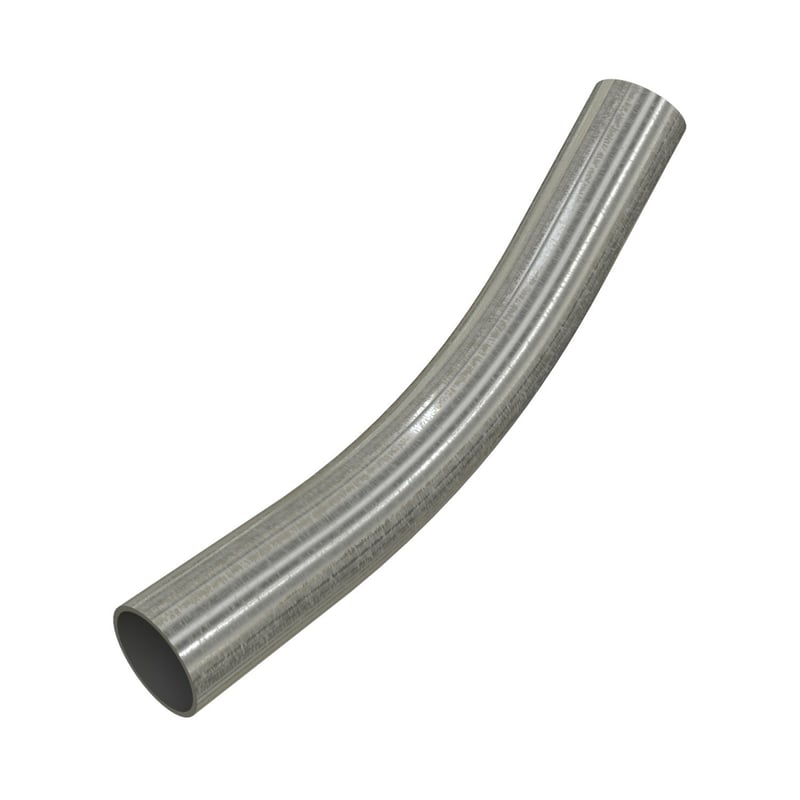

The Multiple 8292 is a 4-inch EMT elbow with a 45-degree angle. This elbow is made from galvanized steel, which provides excellent durability for electrical conduit applications.

• Constructed from hot galvanized steel for lasting exterior protection.
• Designed with an E-Z Pull interior coating for quick wire pulling.
• Meets UL 797 standards for safety and reliability.

Product Highlights

The Multiple 8292 elbow allows for smooth directional changes in raceways.

Product Information

Standard Information

• Brand: Multiple
• MPN: 8292

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Radius: 45 degrees
• Wall Thickness: 0.083 inches
• Inside Diameter: 4.334 inches
• Outside Diameter: 4.500 inches
• Type: Elbow
• Standard: UL797, ANSI C80.3
