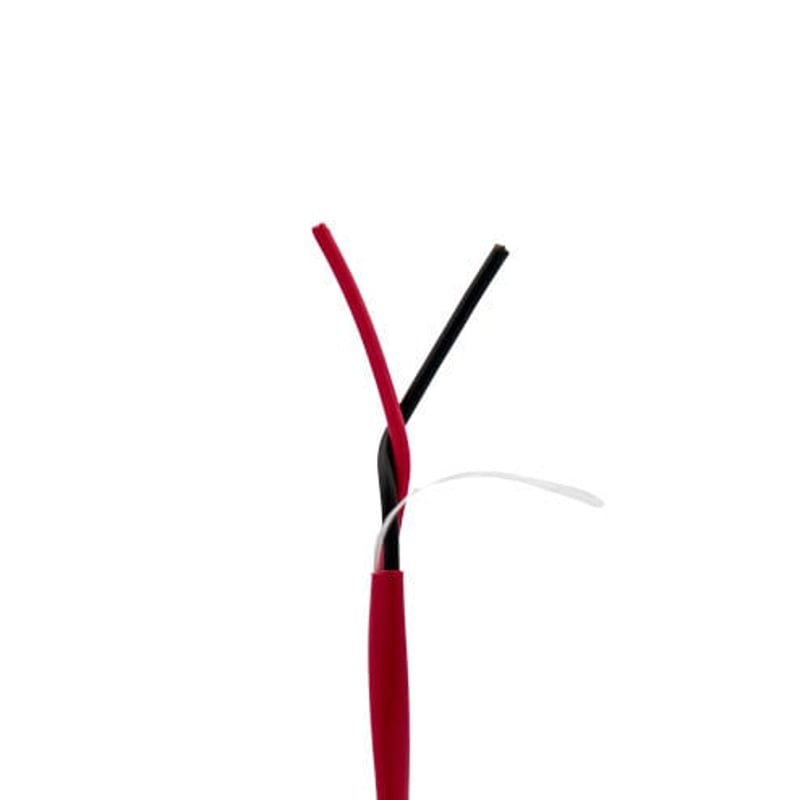

Multiple 818020604 MWC A70061 Fire Alarm 18/2 Solid Unshielded Plenum Red FPLP 1000 FT Reel

Product Description

The Multiple 818020604 is a fire alarm cable designed for use in plenum applications. This cable features a solid unshielded design with two conductors made of bare copper, making it ideal for signaling and fire protective circuits. The jacket is made from low smoke PVC, providing safety in case of fire. This product is UL and CUL approved and is compliant with ROHS standards.

• Voltage rating of 300 V
• Length of 1000 feet on a reel
• Temperature rating from -20 to 75 degrees Celsius

Product Highlights

This fire alarm cable is suitable for smoke detectors and fire signaling systems, making it an essential component for fire safety installations.

Product Information

Standard Information

• Brand: Multiple
• Part Number: 22941

Technical Specifications

• Type: FPLP (UL), CMP/FT6 (CUL), Plenum, Multi Conductor
• Conductor Size: 18 AWG
• Number of Conductors: 2
• Jacket Color: Red
• Outer Diameter: 0.132 inches
• Weight: 16.9 lb/MFt
• Insulation Thickness: 0.006 inches
• Jacket Thickness: 0.014 inches
