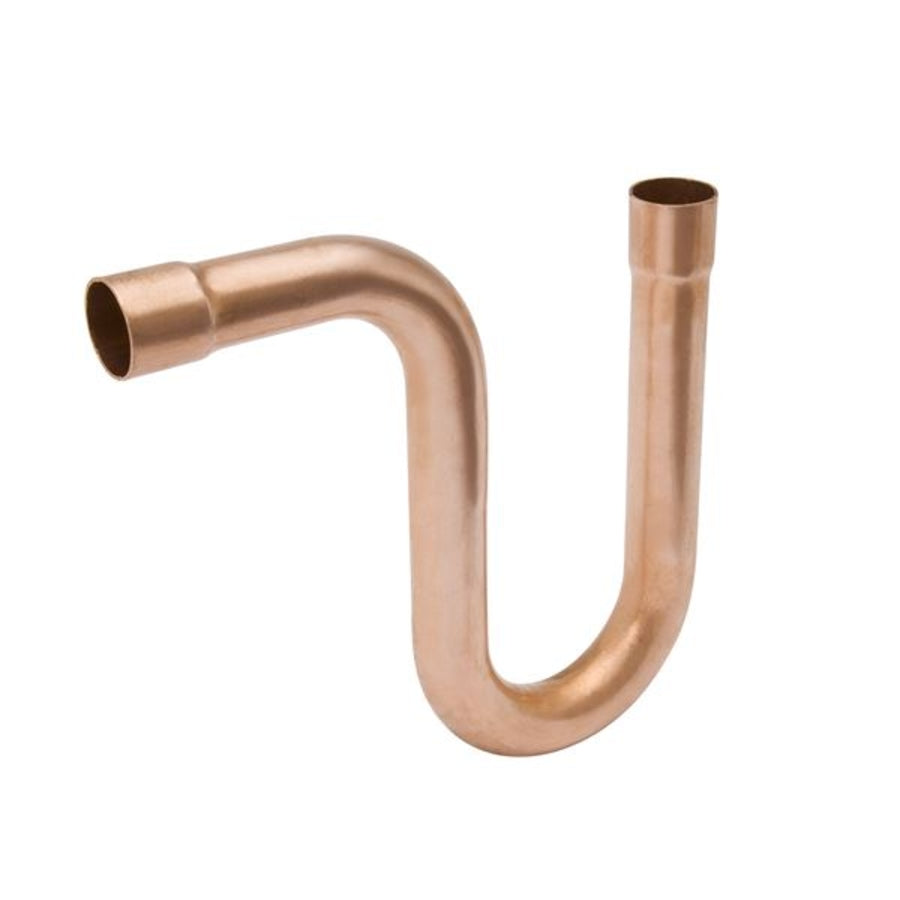

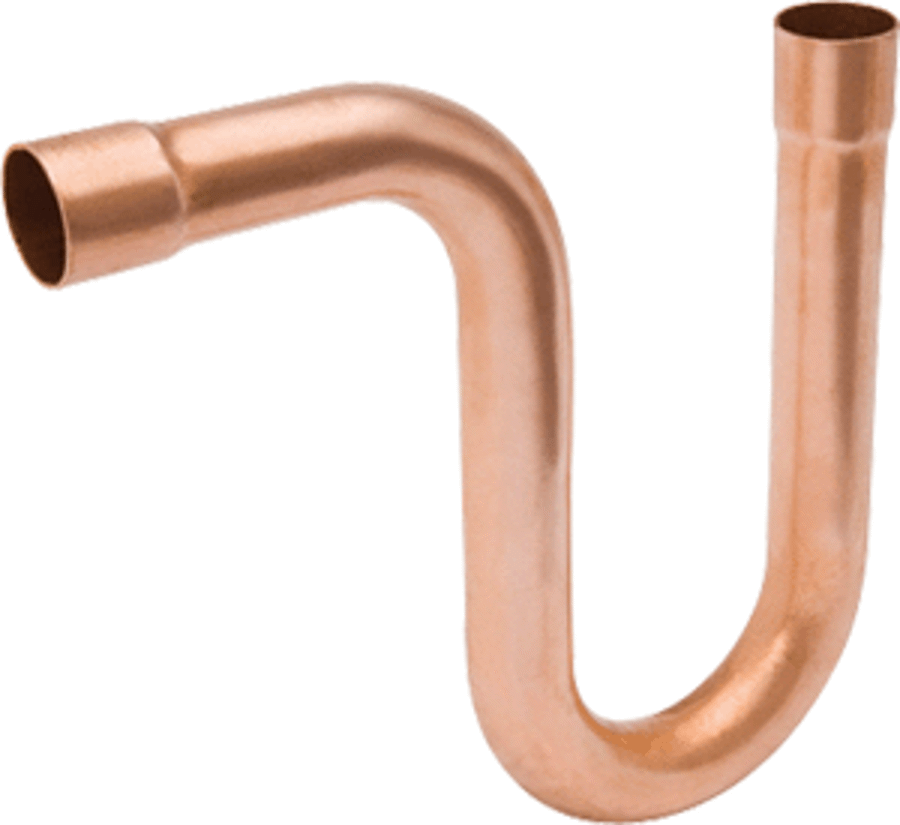

Mueller Streamline W61002 P-Trap (Suction Line) (CXC)

Product Description

The MUELLER STREAMLINE W61002 P-Trap is designed for suction lines with CXC (Cup x Cup) connections. Constructed from wrot copper, this fitting is suitable for above-ground potable water supply systems. It meets ASME standards B16.15, B16.18, B16.22, B16.24, B16.50, and B1.20.1 and NSF 61G. The P-Trap has a 1-3/8" OD and is designed for pressure applications.

• For use in above-ground potable water supply systems
• Constructed of high-grade copper or bronze materials
• Made to applicable ASME standards B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1

Product Highlights

High-grade copper P-Trap fitting for potable water systems, meeting industry standards for quality and reliability.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W61002

Technical Specifications

• Material: WROT COPPER
• End Type: C - Cup (Female Solder)
• End Size: 1 1/4
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/4
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 8.27 in
• Overall Height: 7.68 in
• Overall Width: 1.48 in
• Qty Pcs / Bag: 4
• Master Qty Pcs / Box: 20
• Mueller Description 1: 1-1/4 C SUCT LINE P-TRAP
• Mueller Description 2: 1-3/8 OD SUCT LN P-TRAP
• Application Type: Pressure
• Dimensions: 1-3/8 in OD
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: P-Trap
• Nominal Size: 1-1/4 In
• Pressure Rating: 700 psi
• Type: Suction
