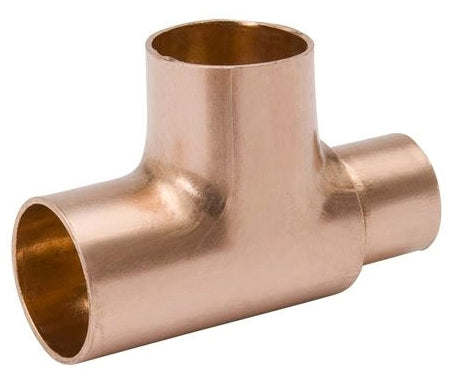

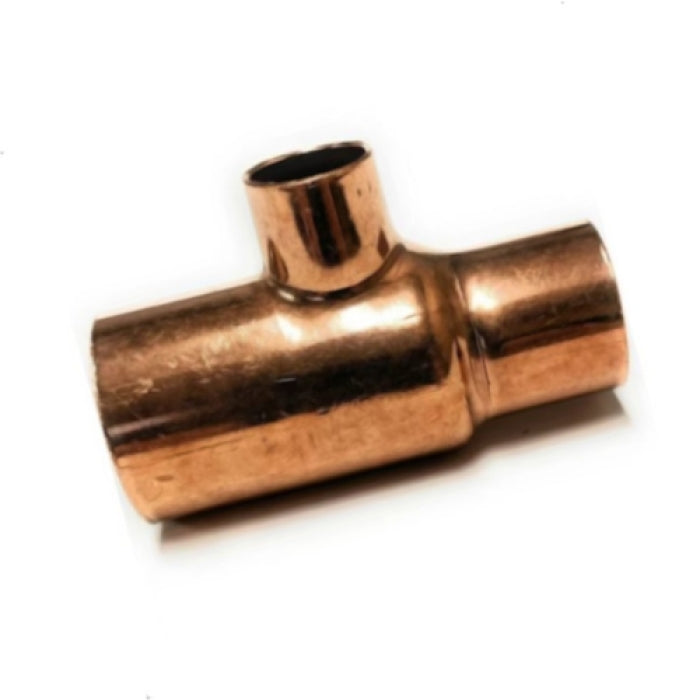

Mueller Streamline W40118 Tee Fitting 2 Inch x 1-1/4 Inch x 1 Inch

Product Description

The Mueller Streamline W40118 tee fitting is a reducing type with nominal size 2 Inch x 1-1/4 Inch x 1 Inch. Constructed from C12200 copper alloy with ASTM B75 material specification, it features female soldered end connections. Suitable for HVAC and refrigeration systems, as well as potable water supply systems. It has a pressure rating of 700 PSI at 250 Deg F.

• Lead-Free
• Made in USA
• Wrot, seamless process

Product Highlights

This Mueller Streamline copper tee fitting is ideal for creating branch connections in various piping systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W40118

Technical Specifications

• Type: Reducing
• Nominal Size: 2 Inch x 1-1/4 Inch x 1 Inch
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: C12200 Copper Alloy
• Material Specification: ASTM B75
• Process: Wrot, Seamless
• Pressure Rating: 700 PSI at 250 Deg F
• Temperature Rating: 250 Deg F
• Application: HVAC and Refrigeration System, Potable Water Supply System
• Applicable Standard: UL (Canada and US), ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1, NSF 61G, MSS SP104
• CATALOG NUMBER: W40118
• Manufacturer Name: Mueller Streamline
• Manufacturer Part Number: W-40118
• UNSPSC Code: 40183102
• End Type: C - Cup (Female Solder)
• End Size: 2
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/4
• Third End Type: C - Cup (Female Solder)
• Third End Size: 1
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 4.73 in
• Overall Height: 3.27 in
• Overall Width: 2.25 in
• Style: WT-600R
• Mueller Description 1: 2 X 1-1/4 X 1 C TEE
• Mueller Description 2: 2-1/8X 1-3/8X 1-1/8 TEE
• Application Type: Pressure
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: Tee
• Connection Size: 2 x 1-1/4 x 1 in
• Connection Type: Female Solder Cup
• Item Name: Reducing Tee
• Length: 4.73 in
• Model: WT-600R
