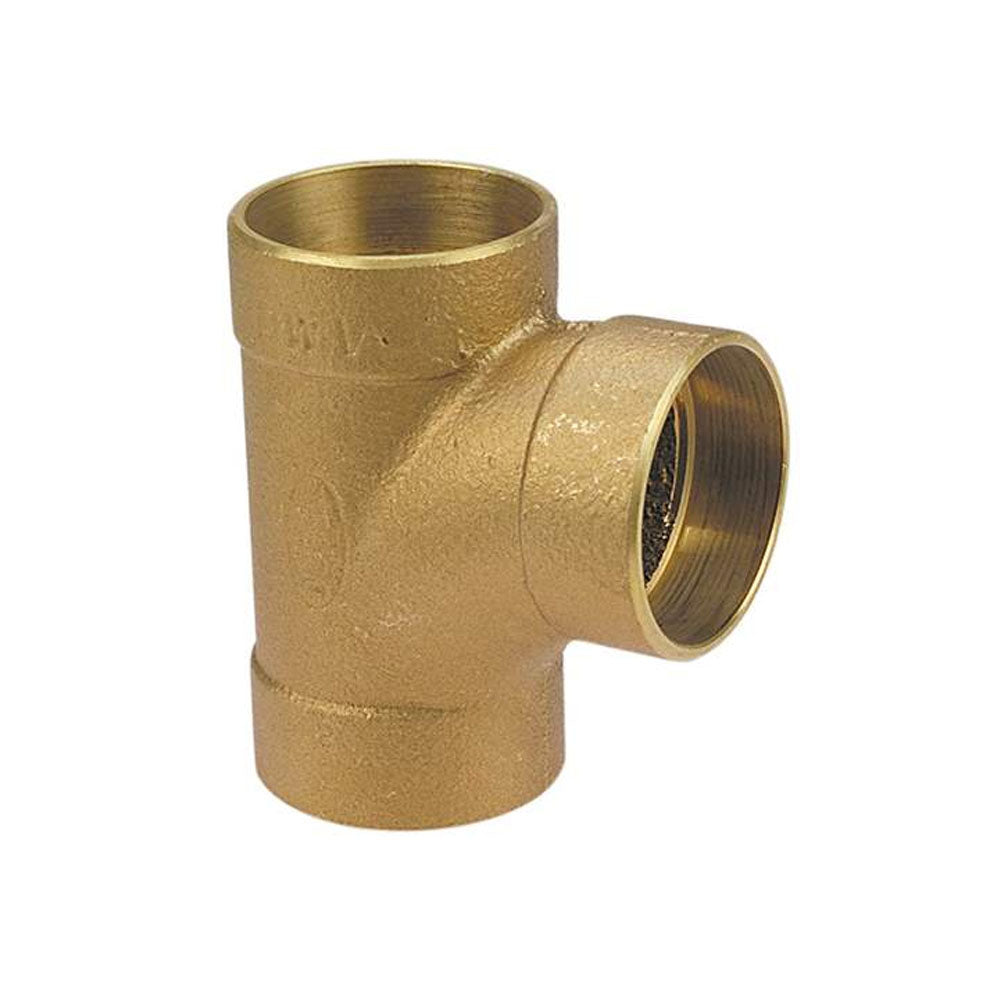

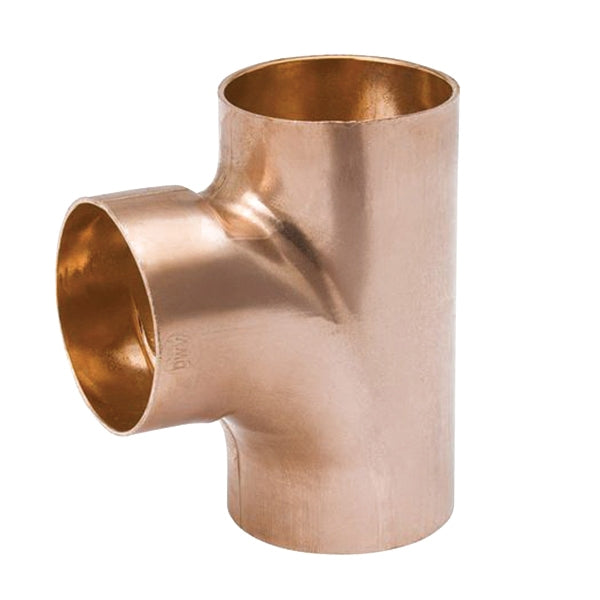

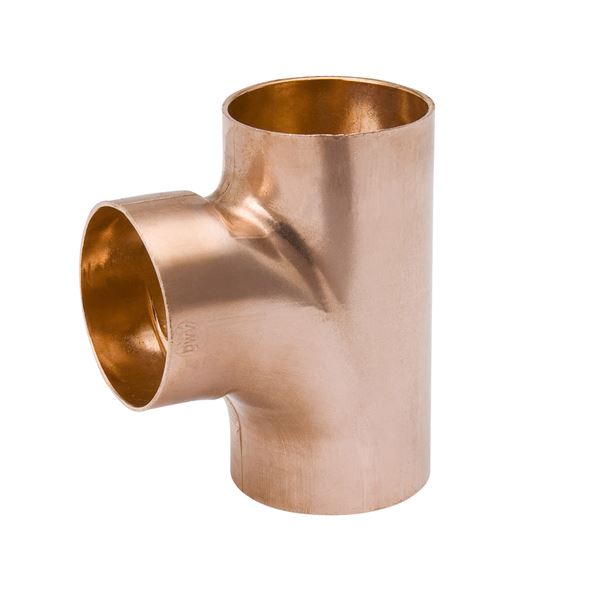

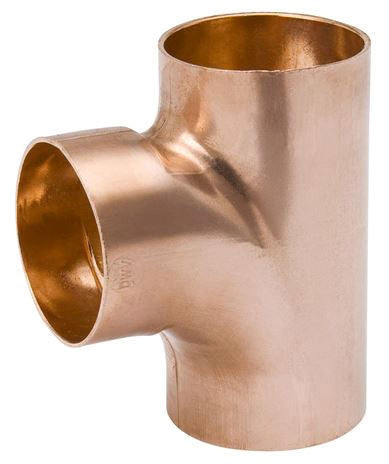

Mueller Streamline W07511 copper DWV Tee (Ty) 1-1/2 inch

Product Description

The MUELLER STREAMLINE W07511 is a tee fitting designed for non-pressurized DWV sanitary systems, plumbing, and mechanical applications. Constructed from UNS C12200 copper with female soldered end connections. It conforms to ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Lead-Free
• Nominal Size 1-1/2 Inch x 1-1/2 Inch x 1-1/2 Inch
• End Connection Female Soldered x Female Soldered x Female Soldered

Product Highlights

This copper DWV tee is ideal for drain, waste, and vent systems, featuring a straight type and wrot process.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07511

Technical Specifications

• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• End Connection: Female Soldered x Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 1-1/2 Inch x 1-1/2 Inch x 1-1/2 Inch
• Process: Wrot
• Type: Straight
• Outer Diameter: 1-5/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/2 in
• Third End Type: C - Cup (Female Solder)
• Third End Size: 1 1/2 in
• Standards: ASME B16.23, ASME B16.29
• Overall Length: 3.28 in
• Overall Height: 2.69 in
• Overall Width: 1.73 in
• Fitting/Connector Type: Tee
• Domestic/Import: Domestic
• Nominal Size A: 1-1/2 inch
• Nominal Size B: 1-1/2 inch
• Nominal Size C: 1-1/2 inch
• size: 1-1/2"
• Brand: MUELLER INDUSTRIES
• MPN: W07511
• Application Type: DWV
• End Style: Sweat
