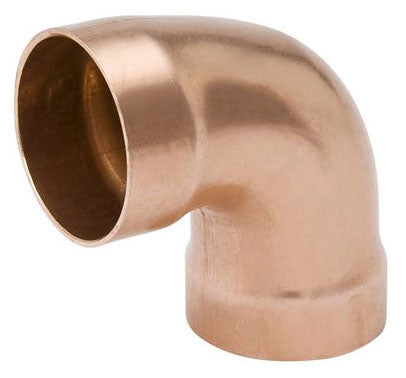

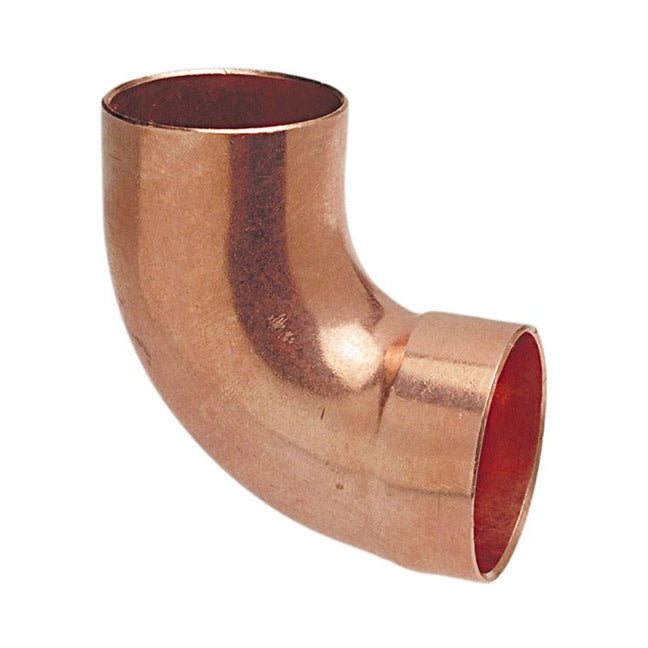

Mueller Streamline W07401 DWV 90 Deg Elbow 1-1/2 in C x C

Product Description

The MUELLER STREAMLINE W07401 is a DWV elbow fitting designed for plumbing and mechanical applications. Constructed from UNS C12200 copper with female soldered end connections, this straight type elbow has a 90-degree angle. It is suitable for non-pressurized DWV sanitary systems and meets ASME B16.22/23/29/B1.20.1, MSS SP104, and NSF/ANSI 61G standards.

• Made from UNS C12200 copper
• Features female soldered x female soldered end connections
• Designed for non-pressurized DWV sanitary systems

Product Highlights

This lead-free copper DWV elbow is ideal for plumbing and mechanical applications requiring a 90-degree connection in non-pressurized sanitary systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07401
• Country of Origin: United States

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: ASME B16.22/23/29/B1.20.1, MSS SP104, NSF/ANSI 61G
• Application: Non-Pressurized DWV Sanitary System, Plumbing, Mechanical
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75, UNS C12200
• Process: Wrot
• Size A: 1-1/2 Inch
• Size B: 1-1/2 Inch
• Type: Straight
• Additional Information: Lead-Free; Outer Diameter 1-5/8 Inch
• Outer Diameter: 1-5/8 Inch
• End Type: C - Cup (Female Solder)
• End Size: 1 1/2 in
• Second End Type: C - Cup (Female Solder)
• Second End Size: 1 1/2 in
• Standards: ASME B16.23, ASME B16.29
• Style: DW-200
• Mueller Description 1: 1-1/2 C X C DWV 90 ELL
• Mueller Description 2: 1 5/8X1 5/8OD90 1/4BND
• Application Type: DWV
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1-1/2 Inch
• Series: DW-200
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Brand: MUELLER INDUSTRIES
• MPN: W07401
• UPC: Does Not Apply
• Country of Origin: United States
