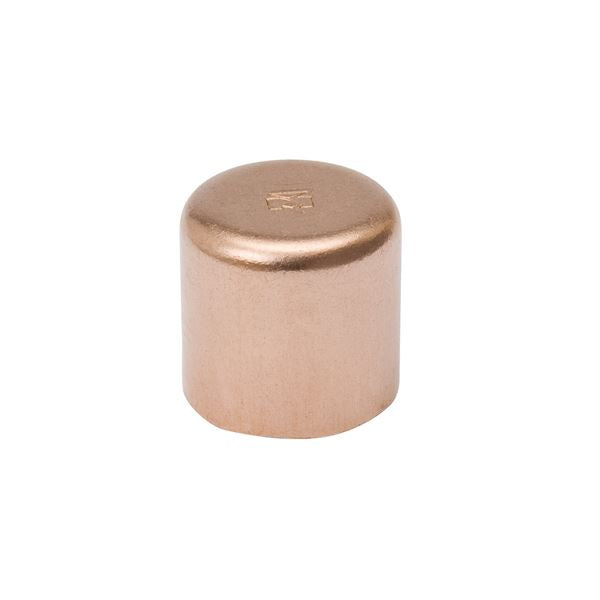

Mueller Streamline W07014 Cap Fitting 2 Inch

Product Description

The MUELLER STREAMLINE W07014 Cap Fitting with a 2 Inch nominal size and female soldered end connection. Constructed from UNS C12200 copper, meeting ASTM B75/B88/B280 material specifications. Designed for potable water supply systems and HVACR applications, with a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• Female Soldered End Connection
• Rated to 700 PSI

Product Highlights

This copper cap fitting is ideal for plumbing and HVACR applications requiring a secure, lead-free connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W07014
• Country of Origin: Domestic

Technical Specifications

• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Nominal Size: 2 Inch
• Pressure Rating: 700 PSI
• Process: Wrot
• Temperature Rating: 250 Deg F
• Outer Diameter: 2-1/8 Inch
• Series/Model: WC-415
• End Type: C - Cup (Female Solder)
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.40 in
• Overall Height: 2.25 in
• Overall Width: 2.25 in
• Style: WC-415
• Qty Pcs / Bag: 1
• Master Qty Pcs / Box: 100
• Application Type: Pressure
• Domestic/Import: Domestic
• End Style: Sweat
• Fitting/Connector Type: Cap
• Working Pressure: 700 psi
• Method of Manufacture: Seamless
• Industry Standards: ASME B16.22, MSS SP104
• Brand: Mueller
• Sub Brand: Streamline®
• Item Name: Cap
• Connection Type: C
• For Use With: Above-Ground Potable Water Supply Systems
