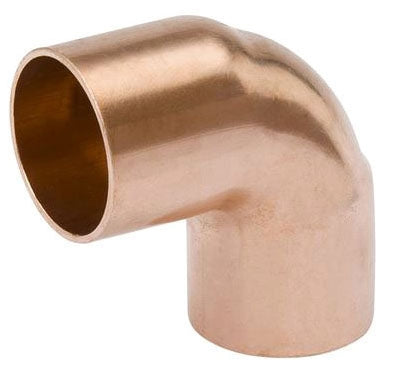

Mueller Streamline W02051 Elbow Fitting 90 Degree

Product Description

The Mueller Streamline W02051 elbow fitting is designed for effective fluid management. This fitting features a 90-degree angle and is constructed from high-quality UNS C12200 copper, making it suitable for various applications.

• Lead-free construction
• Short radius type with female soldered connections
• Pressure rating of 700 PSI

Product Highlights

This elbow fitting is ideal for potable water supply systems and HVACR applications. It meets ASTM B75/B88/B280 material specifications, ensuring reliability and performance in demanding environments.

Product Information

Standard Information

• Angle: 90 Degree
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G

Technical Specifications

• Application: Potable Water Supply System, HVACR
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Process: Wrot
• Size A: 1 Inch
• Size B: 1/2 Inch
• Temperature Rating: 250 Deg F
• Type: Reducing, Short Radius
• Outer Diameter: 1-1/8 Inch x 5/8 Inch
