Mueller Streamline W01113 Adapter Fitting 1/4 Inch x 1/2 Inch

Product Description

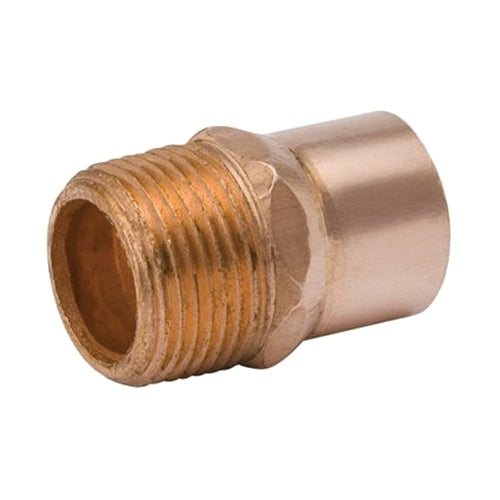

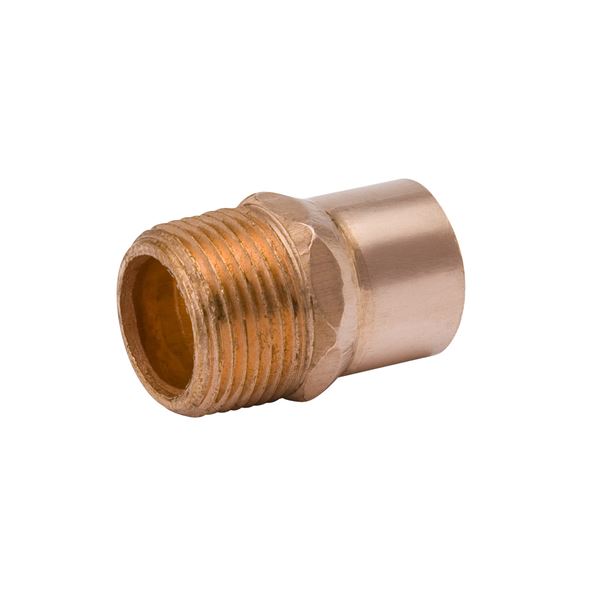

The MUELLER STREAMLINE W01113 adapter fitting is a reducing male adapter with Size A at 1/4 Inch and Size B at 1/2 Inch. Constructed from UNS CI2200 copper with material specification ASTM B75/B88/B280, it features a female soldered x male threaded end connection. It is designed for potable water supply systems and HVACR applications.

• Lead-Free
• Pressure Rating 700 PSI
• Temperature Rating 250 Deg F

Product Highlights

This adapter fitting is suitable for use in potable water and HVACR systems, adhering to UL, ASME, MSS SPI04, and NSF 61G standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01113

Technical Specifications

• Type: Reducing, Male
• Size A: 1/4 Inch
• Size B: 1/2 Inch
• End Connection: Female Soldered x Male Threaded
• Material: Wrot Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Outer Diameter: 3/8 Inch
• Nominal Size: 1/4 x 1/2 inch
• Connection Type: Female Solder Cup x MNPT
• End Type: C - Cup (Female Solder)
• End Size: 1/4 in
• Second End Type: MPT - Male Pipe Tapered Thread (NPT)
• Second End Size: 1/2 in
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 1.30 in
• Overall Height: 0.91 in
• Overall Width: 0.91 in
• Style: WC-401R
