Mueller Streamline W01092 Coupling Fitting 3 Inch

Product Description

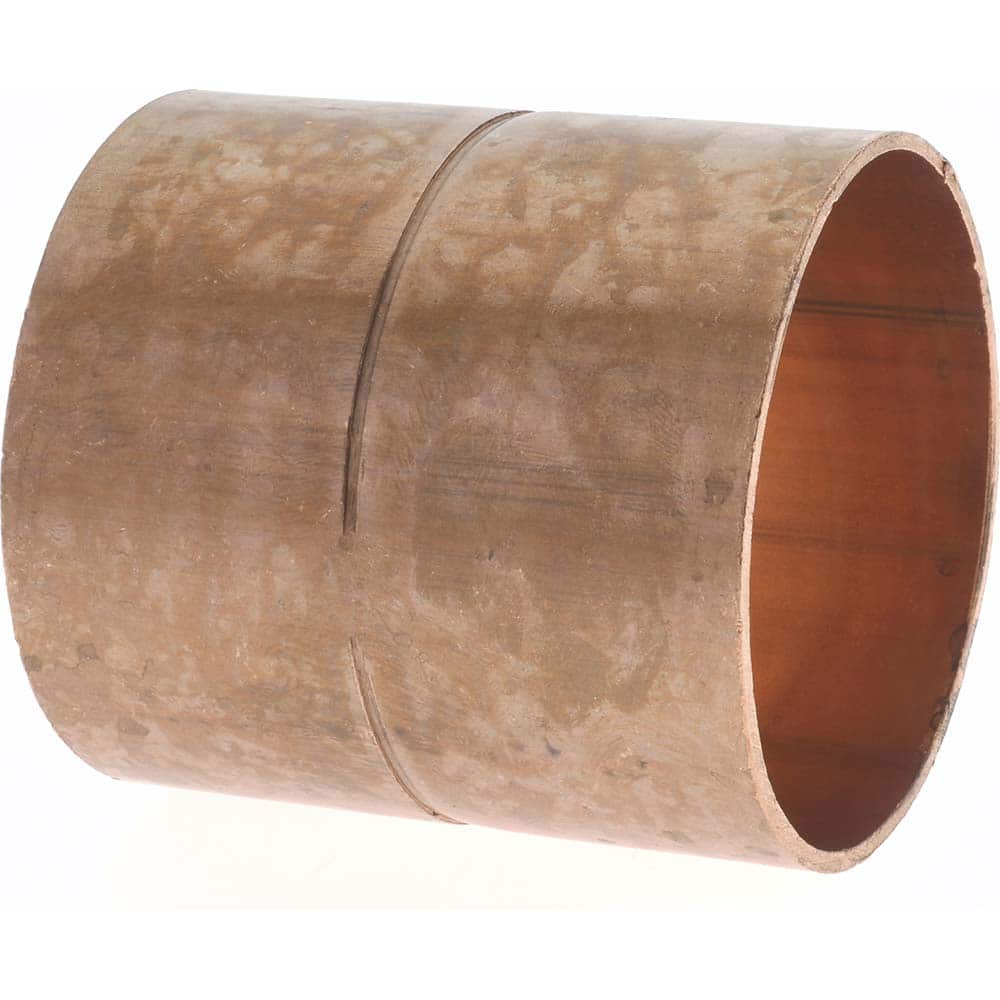

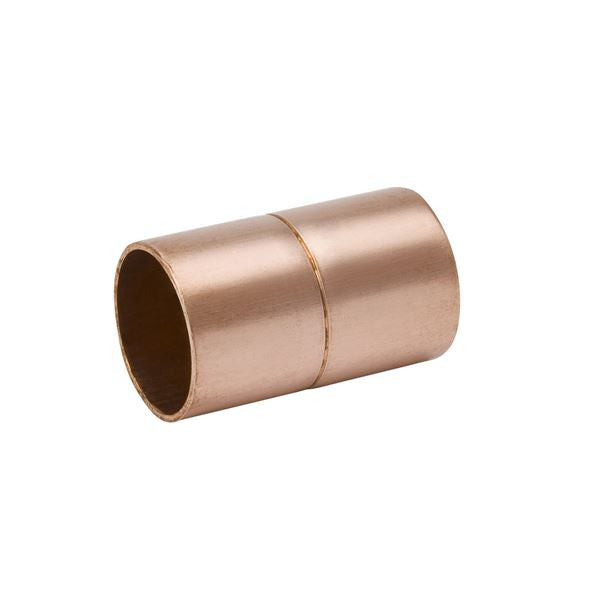

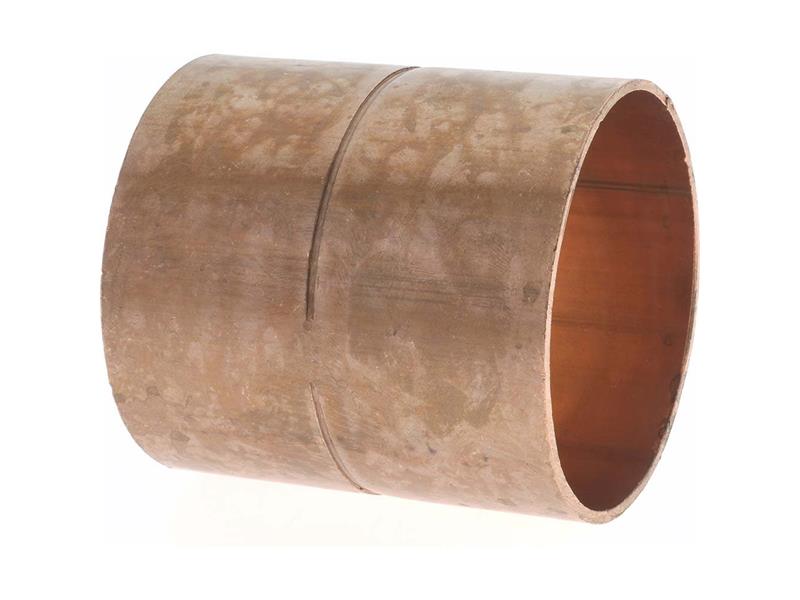

The MUELLER STREAMLINE W01092 is a straight coupling fitting with a rolled stop. It features female soldered end connections on both sides and is made from UNS C12200 copper. This fitting is suitable for potable water supply systems and HVACR applications. It has a pressure rating of 700 PSI and a temperature rating of 250 Deg F.

• Lead-Free
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper

Product Highlights

This 3 inch copper coupling fitting is ideal for creating secure connections in plumbing and HVACR systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W01092

Technical Specifications

• Type: Straight, Rolled Stop
• Size A: 3 Inch
• Size B: 3 Inch
• End Connection: Female Soldered x Female Soldered
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Process: Wrot
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Lead-Free: Lead-Free
• Outer Diameter: 3-1/8 Inch
• Series/Model: WC-400
• UNSPSC Code: 40183107
• UPC: 685768206224
• Fitting Type: Coupling
• Fitting Size: 3 in
• Style: Solder Joint
• End Type: C - Cup (Female Solder)
• End Size: 3
• Second End Type: C - Cup (Female Solder)
• Second End Size: 3
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50
• Overall Length: 3.63 in
• Overall Height: 3.31 in
• Overall Width: 3.31 in
• Part #: W 01092
• Category: Pipe and Coupling
