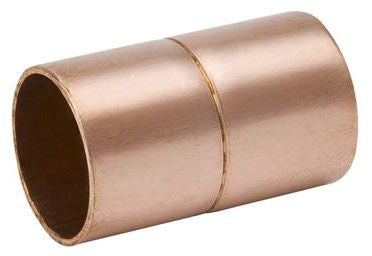

Mueller Streamline W01055 Coupling Fitting 1-1/4 Inch

Product Description

The Mueller Streamline W01055 coupling fitting is a straight, rolled stop type designed for reliable connections in plumbing systems. This fitting features a female soldered x female soldered end connection and is ideal for applications involving potable water supply and HVACR.

• Constructed from UNS C12200 copper
• Lead-free for safe water supply
• Pressure rating of 700 PSI

Product Highlights

The W01055 coupling fitting ensures durability and compliance with several industry standards.

Product Information

Standard Information

• Type: Straight, Rolled Stop
• End Connection: Female Soldered x Female Soldered

Technical Specifications

• Size A: 1-1/4 Inch
• Size B: 1-1/4 Inch
• Material: UNS C12200 Copper
• Material Specification: ASTM B75/B88/B280
• Pressure Rating: 700 PSI
• Temperature Rating: 250 Deg F
• Application: Potable Water Supply System, HVACR
• Applicable Standard: UL (Canada and US), ASME B16.15/18/22/24/50/B1.20.1, MSS SPI04, NSF 61G
• Outer Diameter: 1-3/8 Inch
• Lead-Free: True
• Manufacturer Part Number: W01055
