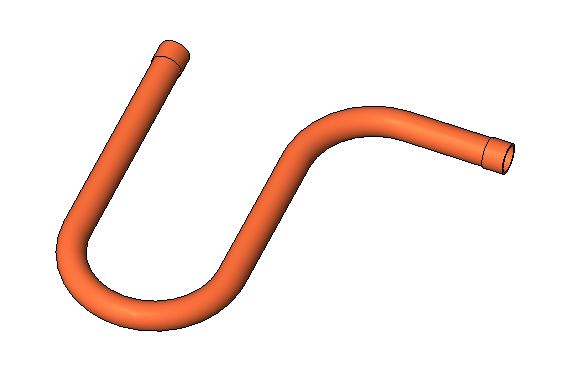

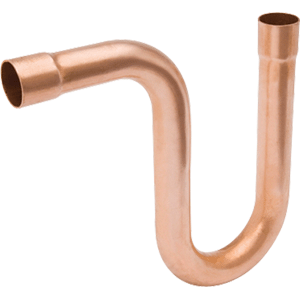

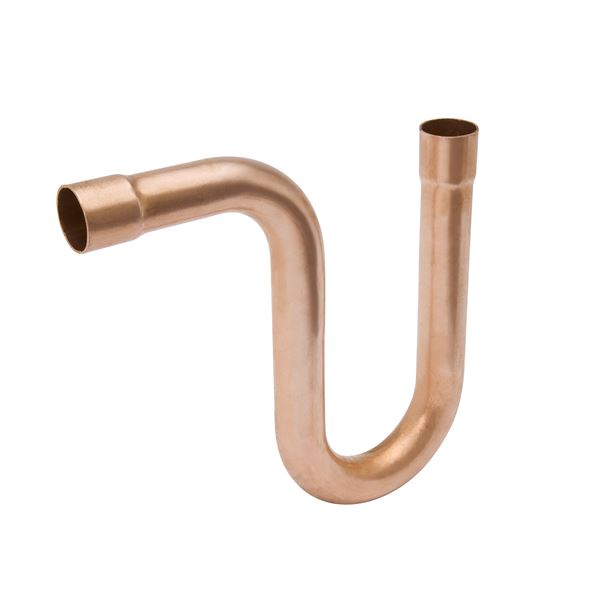

Mueller Streamline W 61009 2 C Suction Line P-Trap (2 in) MBCWE554P-2-1/8

Product Description

The Mueller Streamline W 61009 is a 2 C suction line pressure P-trap constructed of wrot copper for above-ground potable water supply systems. It has C x C cup (female solder) connections sized for a 2 in nominal line with a 2-1/8 in outer diameter, a 700 psi pressure rating, and compliance with ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61G standards.

• Wrot copper construction for suction line P-trap; nominal size 2 in, outer diameter 2-1/8 in
• C x C cup female solder end style for 2 in connections; overall length 12.31 in
• 700 psi pressure rating; meets ASME B16.15/B16.18/B16.22/B16.24/B16.50/B1.20.1 and NSF 61G

Product Highlights

Wrot copper suction P-trap, 2 in nominal (2-1/8 in OD), 700 psi, ASME and NSF 61G certified

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 61009
• Country of Origin: Domestic

Technical Specifications

• Manufacturer: Mueller Streamline
• Manufacturer Part Number: W 61009
• Model / Style: WE-554P
• Product Name: 2 C suction line P-trap
• Type: Suction pressure P-trap
• Material: Copper (wrot copper or bronze)
• Nominal Size: 2 in
• Outside Diameter: 2-1/8 in
• End Style: C x C (Cup, female solder)
• End Size: 2 in
• Pressure Rating: 700 psi
• Standards / Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Intended Use: Above-ground potable water supply systems
• Overall Length: 12.31 in
• Overall Height: 11.86 in
• Overall Width: 2.25 in
• Weight: 3.87 lb
• Series: Streamline
• Item Number: WE554P-2-1/8
• Alternate Part Numbers: 50685768213876, MBCWE554P-2-1/8, W61009
