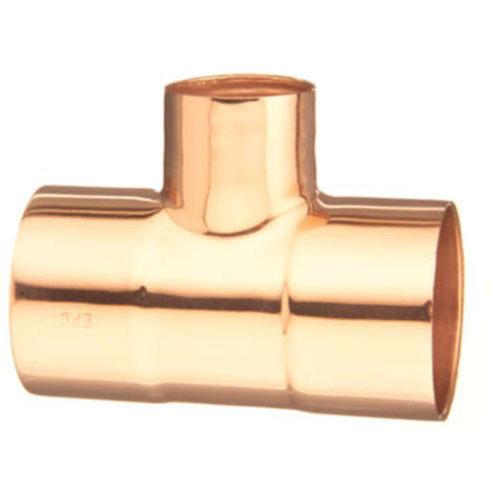

Mueller Streamline W 40105cb Reducing Copper Tee 2x2x1

Product Description

The MUELLER STREAMLINE w 40105cb is a reducing copper tee fitting designed for soldered connections in pressure piping systems. Manufactured to ASME B16.22 standards, it features a 2 inches by 2 inches by 1 inch nominal size with female soldered (CxCxC) end connections on all three ports. The fitting is brightly polished and cleaned of oil and grease during production, meeting the cleanliness requirements demanded by sensitive installations. Licensed plumbers and pipefitters install this type of fitting in both residential and industrial copper water and fluid distribution systems. It carries a 50-year warranty.

This fitting is suited for residential plumbing as well as industrial applications including medical facilities, food processing plants, clean room environments, and research laboratories where cleanliness of the piping system is critical. The reducing branch outlet steps down from a 2 inches main run to a 1 inch branch, allowing a single fitting to serve as both a directional split and a size transition without additional reducers. Overall assembled dimensions are 3.13 inches in length, 3.7 inches in width, and 2.26 inches in height.

Key Features

• Compliant with ASME B16.22 wrought copper and copper alloy solder-joint pressure fittings standard
• All three ports are female soldered (CxCxC) for standard sweat connections
• Reducing configuration: 2 inches run by 2 inches run by 1 inch branch outlet
• Brightly polished and cleaned free of oil and grease for use in sensitive environments
• Rated for temperatures from 350 degrees F to 550 degrees F
• 50-year manufacturer warranty

Compatibility

Designed as an OEM-style replacement or new-install copper solder-joint tee fitting for residential and industrial pressure piping systems requiring a 2 inches by 2 inches by 1 inch reducing tee with CxCxC end connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply and drain the affected lines before cutting and fitting. Tube ends and fitting cups must be properly cleaned and fluxed before soldering to achieve a leak-free joint. Do not apply flame directly to the fitting body longer than necessary, as excessive heat can damage the fitting or connected components.

Technical Specifications

• Applicable Standard: ASME B16.22
• Nominal Size: 2 inches x 2 inches x 1 inch
• Fitting Type: Reducing Tee
• End Connection: Female Soldered x Female Soldered x Female Soldered (CxCxC)
• Material: Copper
• Temperature Rating: 350 to 550 degrees F
• Overall Dimensions: 3.13 inches length x 3.7 inches width x 2.26 inches height
• Weight: 0.673 pounds
• Application: Industrial, Residential
• Packaging Quantity: 1 per inner pack
• Warranty: 50 years

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 40105cb
