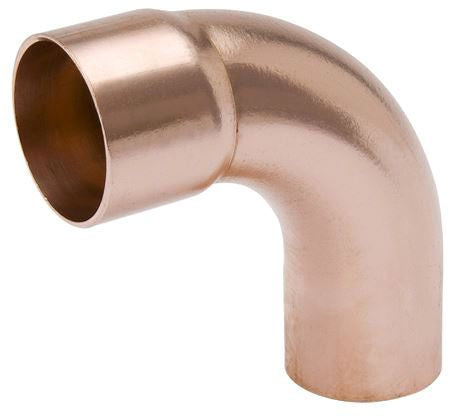

Mueller Streamline W 02809 Street Elbow 3/8 in OD (90 Degree LR) FTG x C

Product Description

Mueller Streamline W 02809 is a 90 degree long-radius street elbow with a 3/8 inch outer diameter and a female-to-compression connection. The fitting is intended for pressurized plumbing and HVAC/R systems and is suitable for ground potable water supply. Constructed of UNS C12200 copper, the elbow is rated to 700 PSI at 250 F and provides a compact offset for directional changes.

• 90 degree long-radius street elbow for male-to-female offset
• 3/8 in outer diameter with female (FTG) x compression (C) connection
• UNS C12200 copper construction; rated 700 PSI at 250 F

Product Highlights

90 degree long-radius street elbow, 3/8 in OD, female-to-compression connection, copper construction, 700 PSI at 250 F

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02809
• Country of Origin: United States

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02809
• Product Name: Street Elbow 90 LR
• Elbow Type: Street, Long Radius, Straight
• Angle: 90 Degree
• Outer Diameter: 3/8 in
• End Connection: Female (FTG) x Compression (C)
• Material: UNS C12200 Copper (wrot)
• Pressure Rating: 700 PSI at 250 F
• Temperature Rating: 250 F
• Application: Ground potable water supply system; HVAC/R
• Applicable Standards: UL (Canada and US), NSF 61G, ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1, MSS SP104
• UPC: 685768209331
• Country of Origin: Made in USA
• UNSPSC: 40183101
