Mueller Streamline W 02701 90 Deg Long Radius Elbow 1/16 in

Product Description

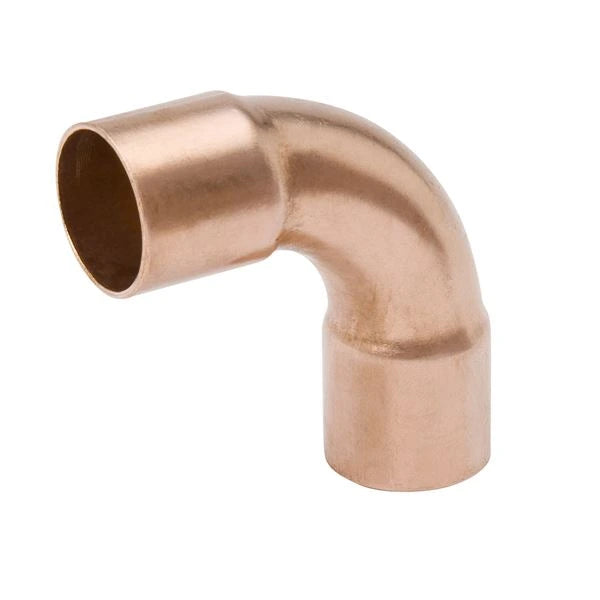

The MUELLER STREAMLINE W 02701 is a 90-degree long radius elbow fitting manufactured from wrot copper for use in solder-joint supply and pressurized plumbing systems. The long radius geometry reduces turbulence and pressure drop compared to standard short-radius elbows, making it a preferred choice in systems where flow efficiency matters. The C x C (copper by copper) end configuration accepts standard copper tube on both ends and is joined using conventional lead-free solder or brazing alloy. This fitting is installed by licensed plumbers and pipefitters working on residential and commercial water supply, hydronic, and other pressurized copper piping systems.

The W 02701 is suited for use in supply and pressurized piping systems where a 90-degree directional change is required with a long-sweep radius. At 1/16 inch end size, this fitting is applicable in small-bore copper tubing runs. Wrot copper construction provides consistent wall thickness and the metallurgical properties required for reliable, leak-free solder joints in both hot and cold water service.

Key Features

• 90-degree long radius elbow geometry reduces flow restriction and pressure drop
• Wrot copper construction delivers consistent wall thickness and reliable joint quality
• C x C end configuration accepts standard copper tube on both ends for solder or braze joining
• 1/16 inch end size for small-bore copper tubing applications
• Compatible with lead-free solder and brazing alloys for potable water compliance

Compatibility

Designed as an OEM-style solder-joint replacement fitting for residential and commercial copper supply and pressurized piping systems using 1/16 inch C x C connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the supply line and drain all water from the pipe section before cutting and fitting. Clean tube ends and fitting cups thoroughly with emery cloth or a fitting brush, apply flux, and join using lead-free solder or an appropriate brazing alloy. Do not apply heat to the fitting while the system is under pressure.

Technical Specifications

• Item Type: Elbow
• Angle: 90 degrees
• Radius Type: Long Radius
• End Configuration: C x C (Copper by Copper)
• End Size: 1/16 inches
• Material: Wrot Copper
• Joint Type: Solder Joint

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02701
