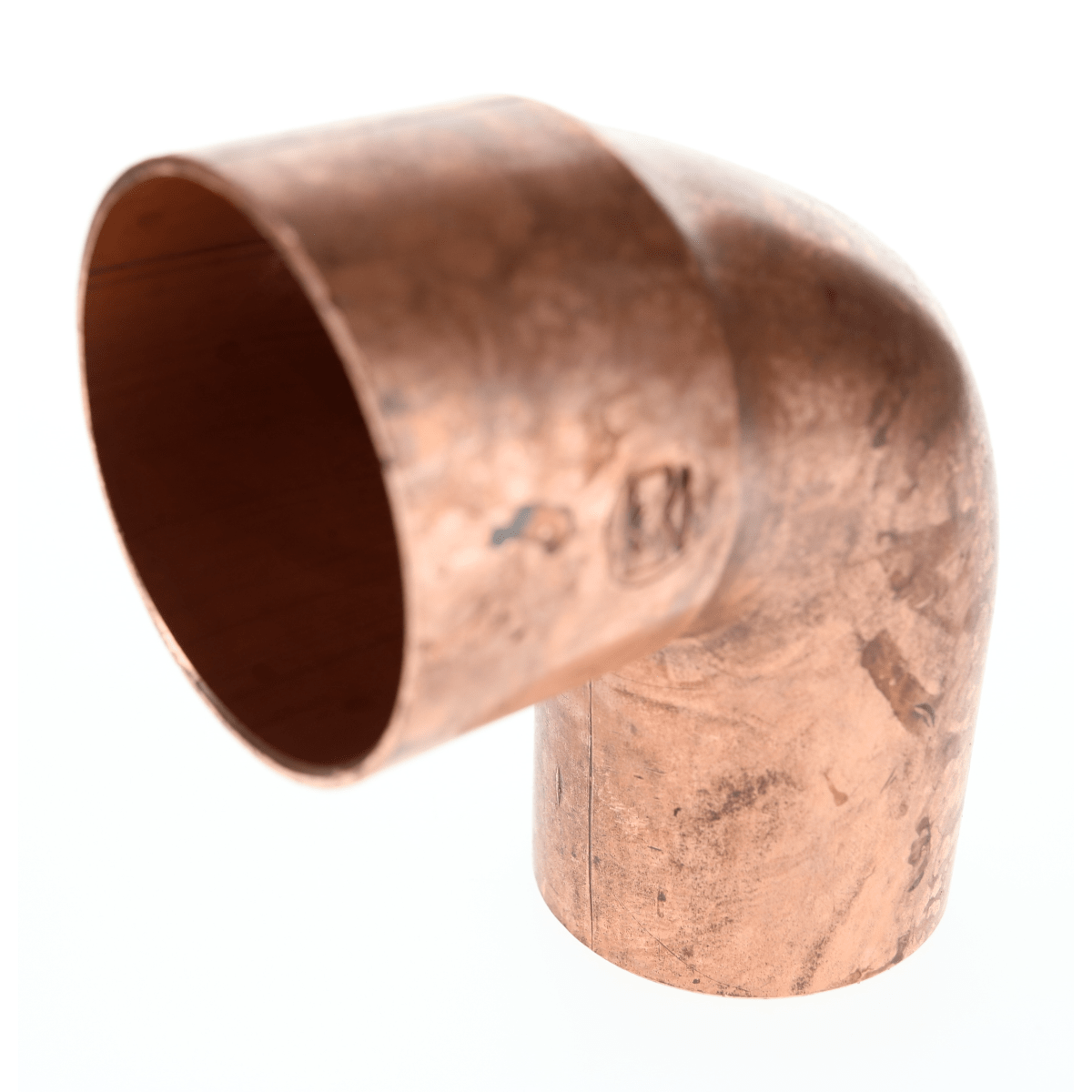

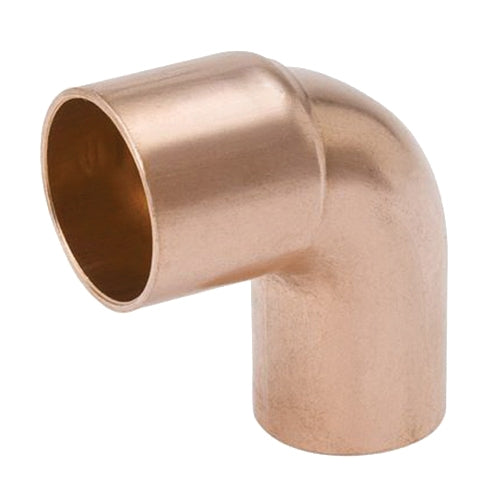

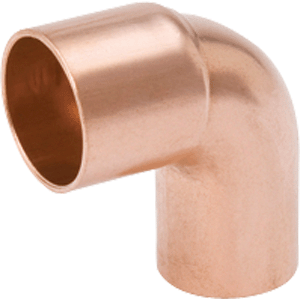

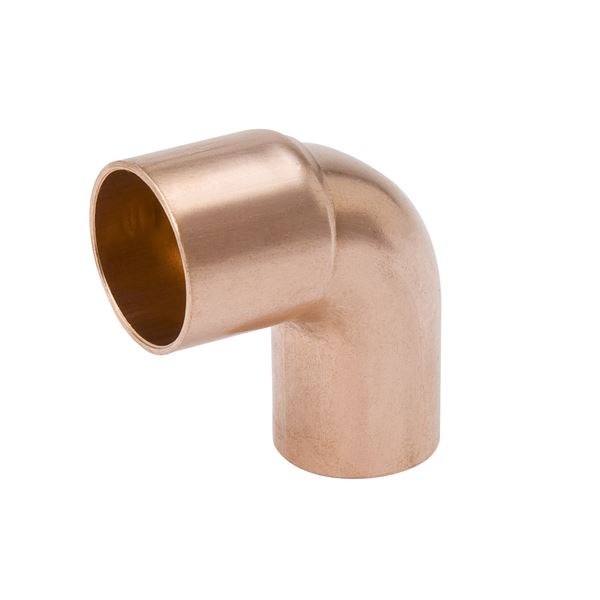

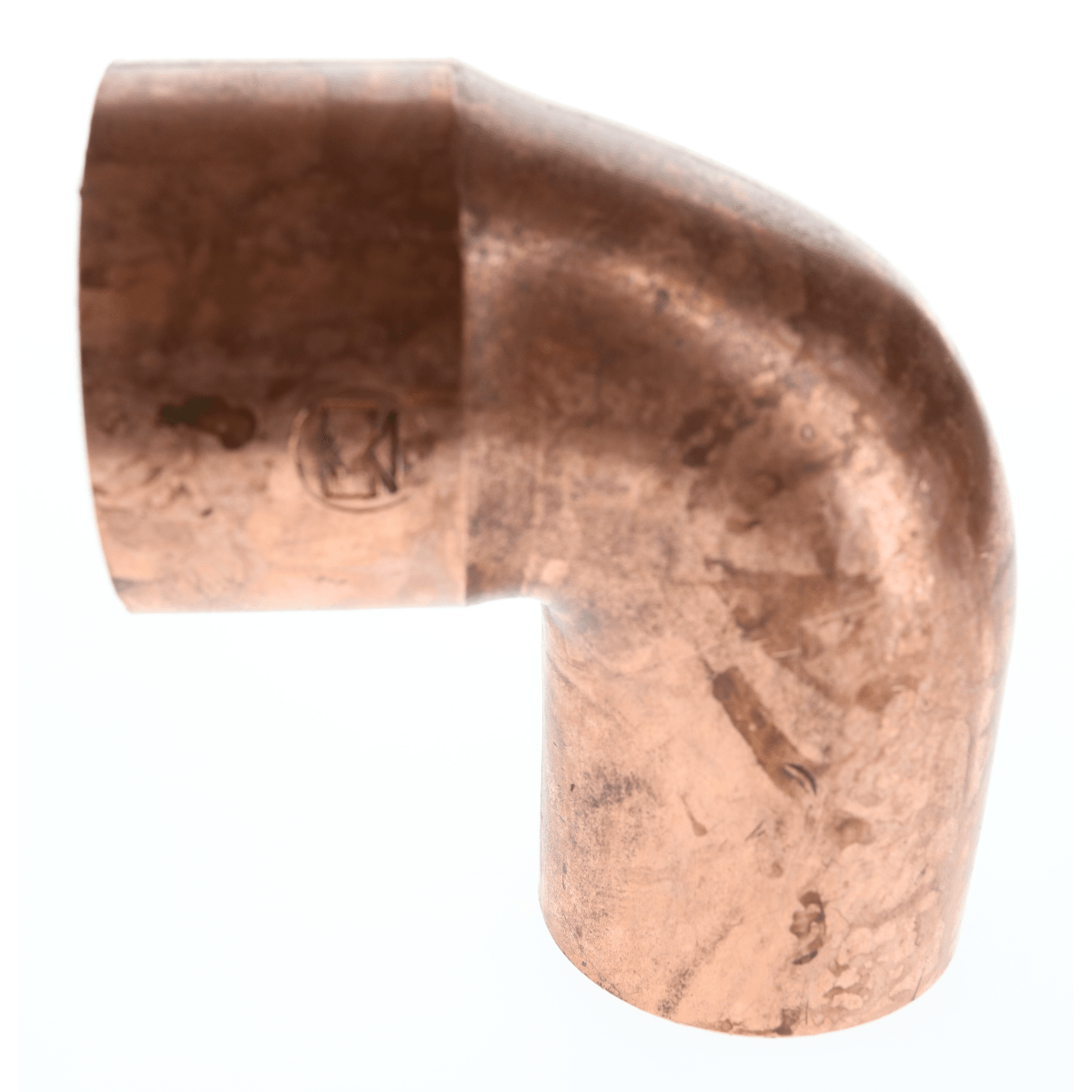

Mueller Streamline W 02386 90 Degree Short Radius Street Elbow (2 in / 90 deg)

Product Description

The Mueller Streamline W 02386 is a 2 in short-radius 90° street elbow with a fitting x C connection, intended for above-ground potable water supply systems. Constructed of wrought (wrot) copper or bronze and rated to 700 psi, it conforms to ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and is NSF 61-G certified. Center-to-end length is approximately 3.86 in.

• Short-radius 90° street elbow for 2 in nominal copper piping with fitting x C end style
• Wrot copper construction (or bronze), pressure rating 700 psi; NSF 61-G certified
• Meets ASME standards B16.15, B16.18, B16.22, B16.24, B16.50 and B1.20.1; center-to-end ~3.86 in

Product Highlights

2 in short-radius 90° street elbow (Ftg x C), 700 psi, ASME and NSF 61-G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 02386
• Country of Origin: Domestic

Technical Specifications

• Brand: Mueller Streamline
• MPN: W 02386
• Part Number / SKU: W02386 / COPF-200-ST90-C
• Model: WE-503
• Product Name: Short Radius Street Elbow (Ftg x C)
• Type: 90 degree elbow, short radius, street
• Angle: 90 deg
• Nominal Size: 2 in
• Connection Type: Ftg x C (fitting x cup)
• End Style: Fitting x C
• Material: Wrot copper (or bronze)
• Pressure Rating: 700 psi
• Standards / Certifications: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61-G
• Application: Above-ground potable water supply systems, pressurized supply
• Center-to-End Length: 3.86 in
• Overall Length: 3.86 in
• Overall Height: 3.81 in
• Overall Width: 2.25 in
• Weight: 0.77 lb
• UPC: 685768209003
• UOM: EA
• Series / Style: Streamline / WE-503
• Form: Wrot
