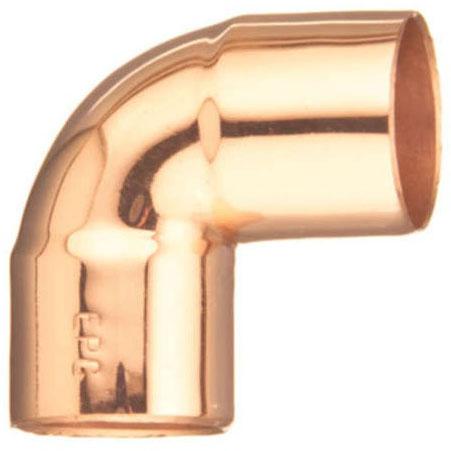

Mueller Streamline W 02088cb 3 Inch Copper 90 Elbow Cxc

Product Description

The MUELLER STREAMLINE w 02088cb is a 3-inch copper 90-degree elbow fitting designed for sweat (female soldered x female soldered) connections in pressurized copper piping systems. Built to ASME B16.22 standards, this close-rough elbow handles temperatures from 350 to 550 degrees F, making it suitable for both industrial and residential plumbing and hydronic applications. Each fitting is brightly polished and cleaned of oil and grease during manufacturing, which supports clean, oxide-free joints when brazed or soldered by a licensed plumber or pipefitter.

This fitting is appropriate for residential water distribution, industrial process piping, medical facility plumbing, food processing plants, clean room installations, and research laboratory systems where a clean, code-compliant copper joint is required. The 90-degree turn in a close-rough profile keeps the fitting compact in tight spaces. Its polished interior surface minimizes contamination risk in sensitive environments. The CxC end connections accept standard 3-inch copper tube per ASME B16.22.

Key Features

• Meets ASME B16.22 dimensional standard for wrought copper and copper alloy fittings
• Female soldered x female soldered (CxC) end connections for standard sweat joining
• Rated for temperatures from 350 to 550 degrees F
• Polished and degreased at the factory for cleaner, stronger solder joints
• Suitable for industrial, residential, medical, food processing, and clean room piping
• 50-year manufacturer warranty

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3-inch copper tube systems using CxC sweat connections in residential and industrial piping applications conforming to ASME B16.22.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and ASME standards. Shut off the water supply and fully depressurize and drain the line before cutting into existing piping. Surfaces must be clean, dry, and properly fluxed before soldering or brazing. Do not apply heat to a pressurized or water-filled line.

Technical Specifications

• Applicable Standard: ASME B16.22
• Angle: 90 degrees
• Size: 3 inches
• End Connection: Female Soldered x Female Soldered (CxC)
• Material: Copper
• Temperature Rating: 350 to 550 degrees F
• Overall Dimensions: 5.27 inches length x 5.27 inches width x 3.3 inches height
• Weight: 1.90 pounds
• Application: Industrial, Residential
• Warranty: 50 Years

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 02088cb
