Mueller Streamline W 01652cb Copper Street 90 Elbow 1/2 in

Product Description

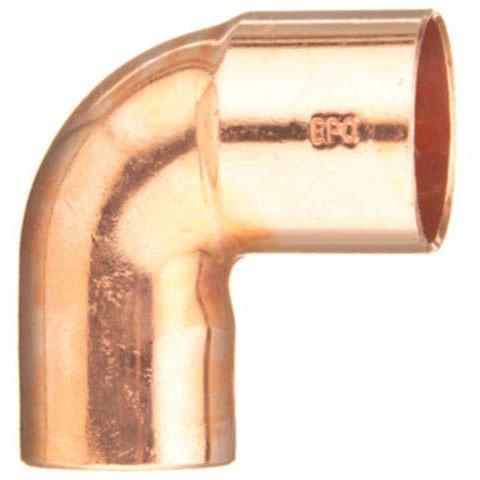

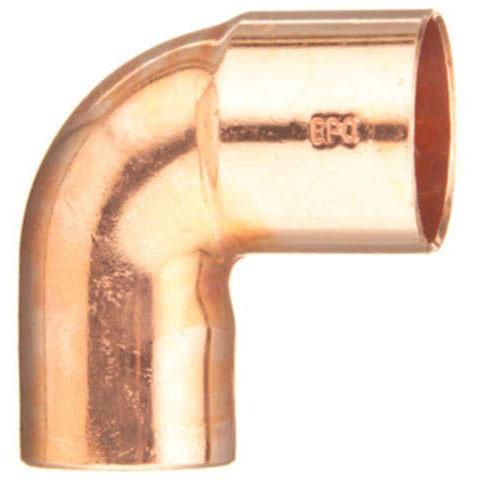

The MUELLER STREAMLINE w 01652cb is a 1/2-inch copper street 90-degree elbow fitting designed for soldered connections in plumbing and mechanical piping systems. Built to ASME B16.22 standards, it uses a male-soldered by female-soldered (FTGXC) end configuration, allowing it to connect directly to copper tubing without a coupling. The fitting is brightly polished and cleaned of oil and grease during manufacturing, meeting the cleanliness requirements of sensitive installations. A licensed plumber or pipefitter handles installation. The compact profile measures 1.36 inches in length by 1.23 inches in width by 0.7 inches in height and weighs 0.04 pounds.

This fitting is rated for industrial and residential applications, including medical facilities, food processing plants, clean room environments, and research laboratories. The street configuration makes it well suited for tight-radius direction changes where space is limited. It carries the KLEENFIT designation from Elkhart Products, indicating it meets elevated cleanliness standards for sensitive plumbing and process piping installations. Sold individually, it is also available in master carton quantities of 25 for larger jobs.

Key Features

• 90-degree street elbow with male-soldered by female-soldered ends for direct copper tubing connection
• Meets ASME B16.22 dimensional standard for wrought copper and copper-alloy fittings
• Brightly polished and degreased per KLEENFIT cleanliness requirements
• Temperature rated from 350 to 550 degrees F for broad service compatibility
• Made in the USA with a 50-year warranty
• Compact size at 1.36 inches length suits confined installation areas

Compatibility

Designed for use with 1/2-inch copper tubing in residential and industrial piping systems. Suitable for applications in medical facilities, food processing plants, clean room environments, and research laboratories where fitting cleanliness is required.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter using standard soldering tools and lead-free solder per applicable plumbing codes such as the IPC or local authority requirements. Shut off water supply and fully drain the line before soldering. Ensure both the fitting socket and tube end are clean, dry, and properly fluxed before applying heat. Do not overheat the fitting, as excessive temperature can compromise the joint or damage adjacent components.

Technical Specifications

• Fitting Type: Street 90-Degree Elbow
• End Connection: Male Soldered x Female Soldered (FTGXC)
• Size: 1/2 inch
• Material: Copper
• Applicable Standard: ASME B16.22
• Temperature Rating: 350 to 550 degrees F
• Overall Dimensions: 1.36 inches length x 1.23 inches width x 0.7 inches height
• Weight: 0.04 pounds
• Application: Industrial, Residential
• Warranty: 50 Years
• Country of Origin: USA

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: w 01652cb
