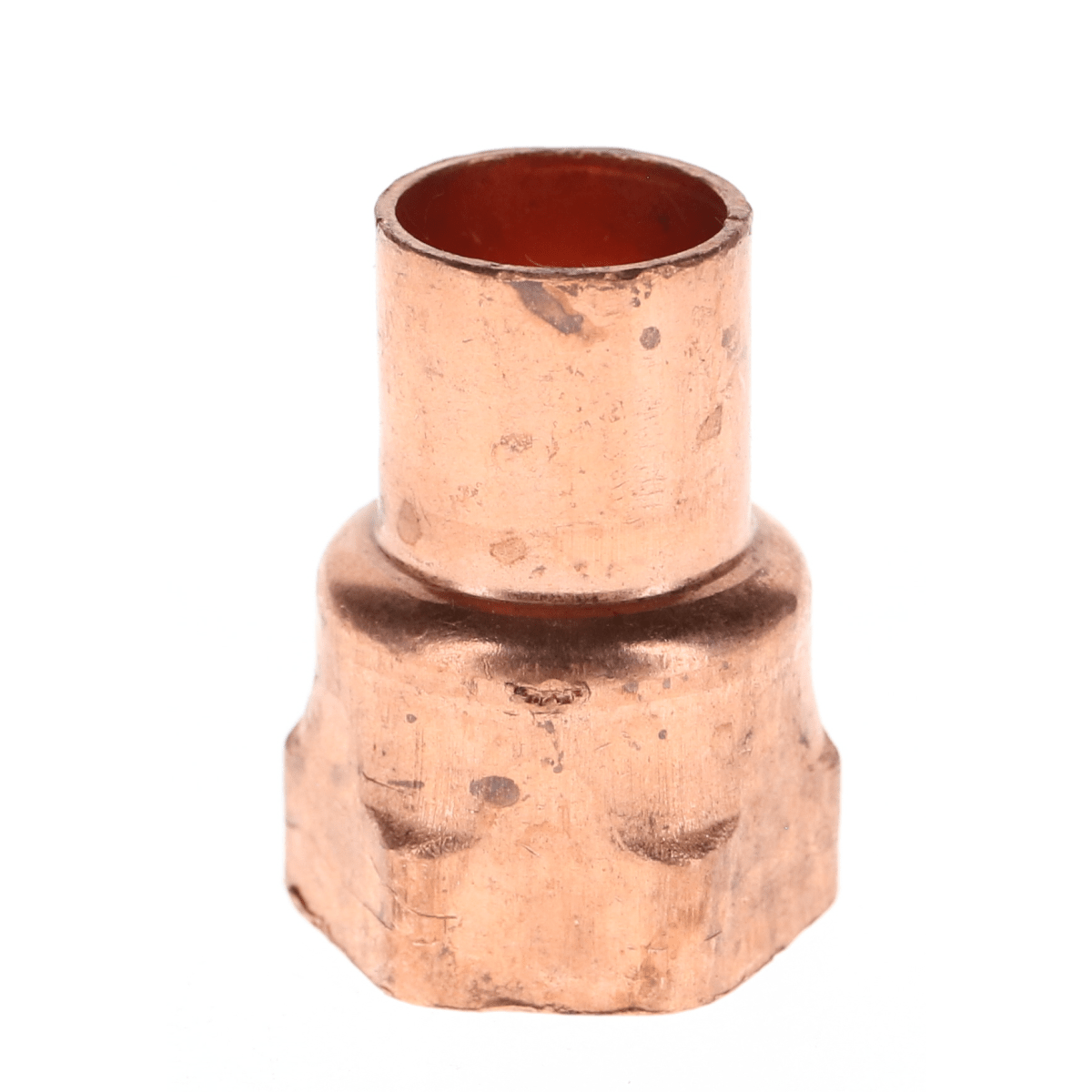

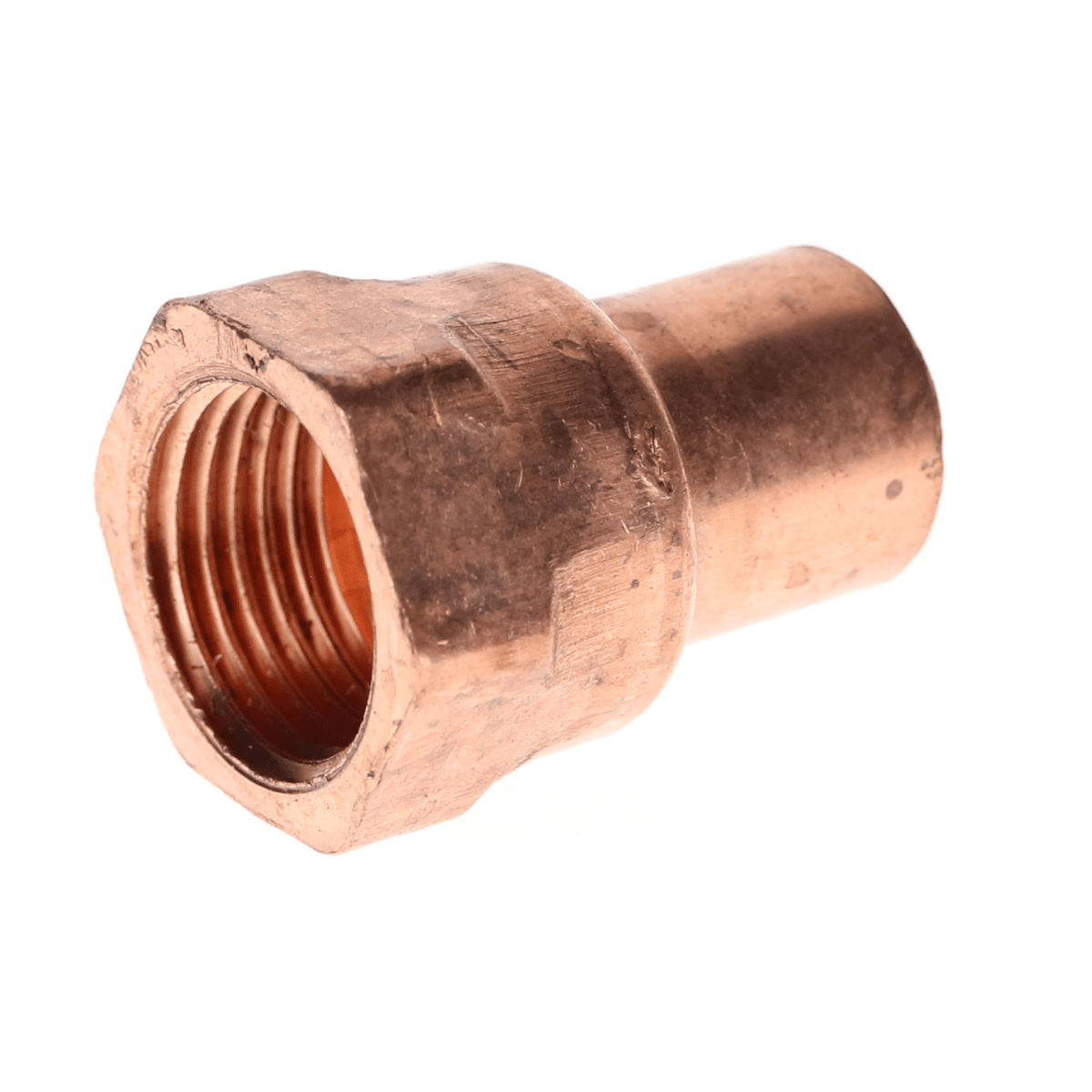

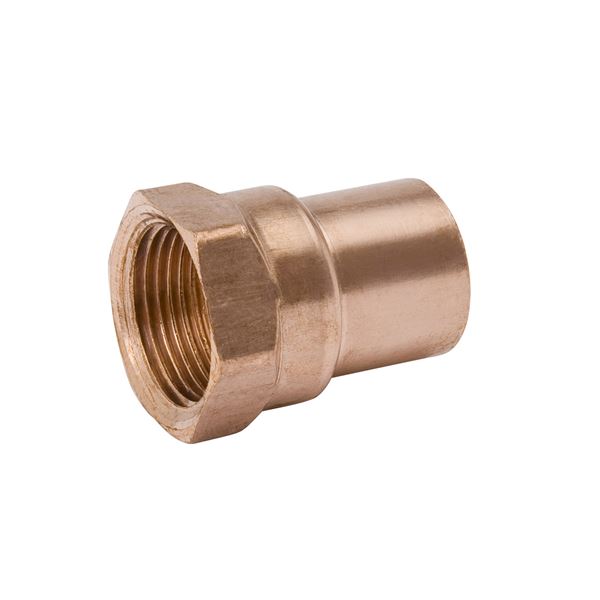

Mueller Streamline W 01231 1/2 C x F Adapter (1/2 in)

Product Description

Mueller Streamline W 01231 is a 1/2 in female adapter that joins 1/2 in copper tubing to a female pipe thread using a C x FNPT connection. Constructed of wrought copper (or bronze options in the product family) with a 5/8 in outside diameter, it is rated to 700 psi for above-ground potable water supply systems and manufactured to applicable ASME standards and NSF 61G.

• Connection: C (cup female solder) to FNPT (female pipe tapered thread) for joining copper tubing to threaded pipe.
• Material and size: wrought copper construction, nominal 1/2 in tubing, 5/8 in outside diameter.
• Ratings and standards: 700 psi pressure rating; meets ASME B16.15, B16.18, B16.22, B16.24, B16.50, B1.20.1 and NSF 61G.

Product Highlights

1/2 in copper C x FNPT female adapter, 5/8 in OD, 700 psi, ASME and NSF 61G compliant

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01231
• Country of Origin: Domestic

Technical Specifications

• Manufacturer: Mueller Streamline
• Manufacturer Part Number: W 01231
• Brand: Mueller Streamline
• Model/Style: WC-402
• Type: Adapter (Female)
• Fitting/Connector Type: Adapter
• Nominal Size: 1/2 in
• Outside Diameter: 5/8 in OD
• End Connections: C (cup female solder) x FNPT (female pipe tapered thread)
• Connection Type: C x FNPT
• Material: Copper (wrought copper or bronze materials)
• Pressure Rating: 700 psi
• Standards/Approvals: ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; ASME B1.20.1; NSF 61G
• Intended Application: Above-ground potable water supply systems; typical plumbing and piping transitions
• Country of Manufacture: Domestic
• Weight: 0.10 lb
• Overall Length: 1.34 in
• Overall Height: 1.10 in
• Overall Width: 1.10 in
• Alternate Part / SKU: COPF-050-FA-C
