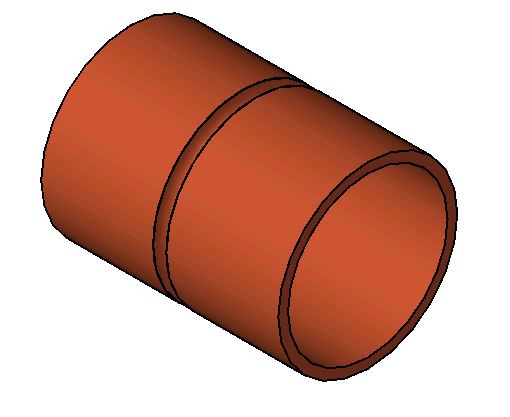

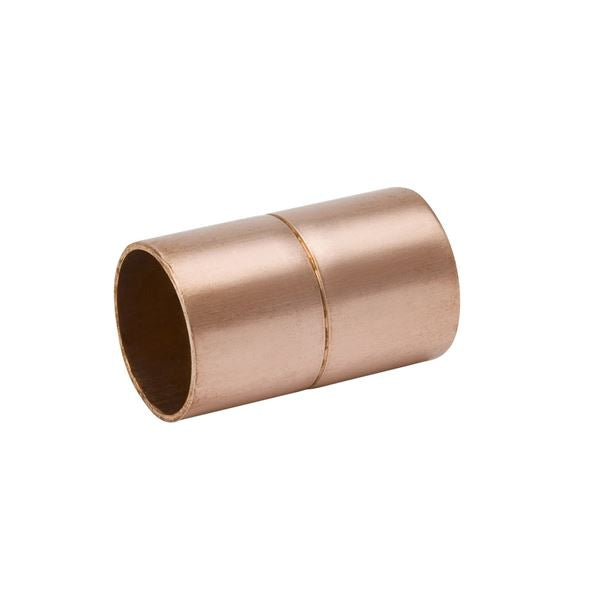

Mueller Streamline W 01063 Stop Coupling 1-5/8 OD

Product Description

Mueller Streamline W 01063 is a stop coupling designed for 1-5/8 inch outside diameter copper tubing. The rolled-stop fitting provides a solder-joint (C x C) connection with a nominal 1-1/2 inch size and is intended for above-ground potable water and pressurized piping systems. Constructed of wrot copper, the part is produced to industry standards and is supplied with technical documentation in associated product datasheets.

• Rolled-stop coupling design for 1-5/8 in outside diameter copper tubing; nominal size 1-1/2 in
• C x C (female solder/cup) connection type for solder-joint installation
• Wrot copper construction; conforms to standards including NSF/ANSI 61 Annex G and ASME B16 series

Product Highlights

Rolled-stop, solder-joint copper coupling (WC-400) with 1-5/8 in outer diameter and C x C ends for above-ground potable and pressurized systems

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: W 01063
• Country of Origin: US

Technical Specifications

• Brand: MUELLER STREAMLINE
• MPN: W 01063
• Product Name: Stop coupling
• Model / Style: WC-400
• Type: Rolled stop coupling
• Nominal Size: 1-1/2 in
• Outer Diameter: 1-5/8 in
• End Type: C - Cup (female solder)
• End Size: 1-1/2 in
• Connection Type: C x C (solder-joint)
• Material: Wrot copper
• Weight: 0.21 lb
• Overall Length: 2.37 in
• Overall Width: 1.74 in
• Overall Height: 1.74 in
• Standards / Certifications: NSF/ANSI 61 Annex G; ASME B16.15; ASME B16.18; ASME B16.22; ASME B16.24; ASME B16.50; B1.20.1; MSS SP104; ASTM B75; UL (select sizes)
• Pressure Rating: 700 psi (select sizes, UL verified)
• Temperature Rating: 250 F (select sizes, UL verified)
• Application: Above-ground potable water supply systems; plumbing and mechanical pressurized piping
• Country of Origin: US
