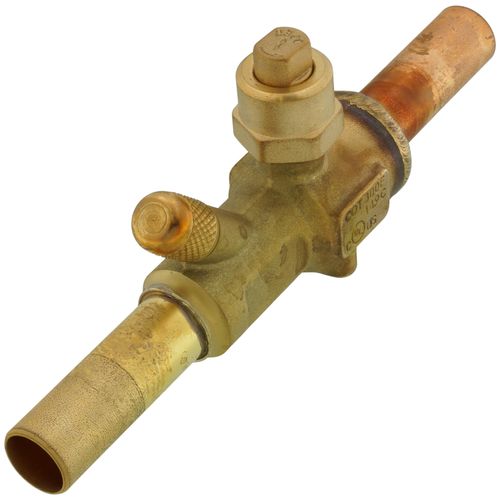

Mueller Streamline RP18962 5/8 inches OD FTG Cyclemaster Multi-Split Ball Valve w/ Access Port

Product Description

The Mueller Streamline RP18962 is a 5/8" OD FTG Cyclemaster Multi-Split Ball Valve with Access Port. It features full port construction to match line size ID and an internally equalized ball design. The valve also has a rupture-proof encapsulated stem and MCM Seal Technology. It is UL/cUL Listed and conforms to Pressure Equipment Directive 2014/68/EU.

• 5/8" FTG Connection
• 300°F Max Temp
• -40°F Min Temp

Product Highlights

This multi-split ball valve offers reliable performance with a wide operating temperature range and robust construction.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: RP18962

Technical Specifications

• Max Temp (F): 300°F
• Product Type: Ball Valve
• Size: 5/8"
• Connection Type: FTG
• Min Temp (F): -40°F
• Connection Size: 5/8 in
• End Type: FTG
• A: 6.25 in
• B: 3.45 in
• C: 1.65 in
• D: 1.75 in
• E: 0.625 in
• F: 0.54 in
• G: 2.23 in
• H: 0.87 in
• I: M4×0.7
